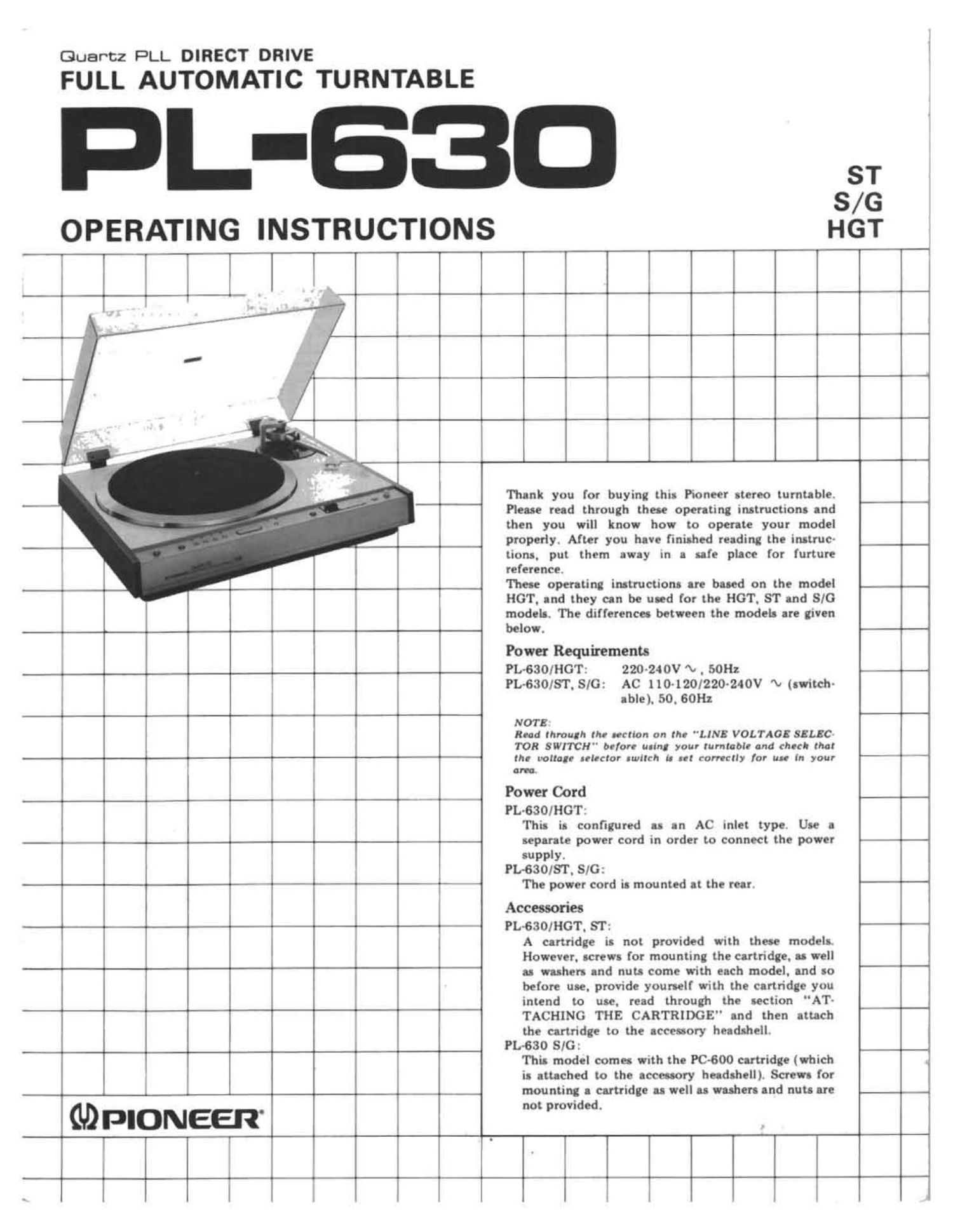

Page 1

Quartz PLL DIRECT DRIVE

FULL AUTOMATIC TURNTABLE

L-53- s.

5/6
OPERATING INSTRUCTIONS HGT

| i.

-0.

Thank you for buying this Pioneer stereo turntable.

Please read through these operating instructions and
then you will know how to operate your model
properly. After you have finished reading the instruc.

tions. put them away in a safe place for furture
reference.

These operating instructions are based on the model
HOT, and they can be used for the HGT. ST and SIG
models. The differences between the models are given

below.
Power Requirements
Puma/HGT: 220-240v x , 50H:
PL-630/ST.SIG: AC 110-120/220-240V N (switch-
able), 50. son:
were

Read through the section on the "LINE VOLTAGE 881.86

the voltage selector switch ts set correctly for use in your
am.

Power Cord

l
1
L TOR SWIIVH" before using your turntable and cheeh that
i

PL-630/HGT:
This is configured as an AC inlet type. Use a

i separate power cord in order to connect the power

supply.
' mezzo/ST. SIG:

The power cord is mounted at the rear.

Accessories

PL630/HGT. ST:
A cartridge is not provided with these models.
However. screws {or mounting the cartridge. as well

as washers and nuts come with each model. and so
before use. provide yourself with the cartridge you
intend to use. read through the section "AT

TACHING THE CARTRIDGE" and then attach
the cartridge to the accessory headshell.
PL~630 SIG:

This model comes with the P0600 cartridge (which
is attached to the accessory headshell). Screws for

mounting a cartridge as well as washers and nuts are
not provided.

GDPIONEER
I V

Page 2

-

CONTENTS

Features ............................ 2 Playing Procedure ..................... 10
Before Use .......................... 3 Adjustment of Stylus Descent Position . . . . 12
Assembly Procedure ................... 4 Maintenance ......................... 12
Installation Precautions ................ 5 Trouble? Check it out ................. 14
Connections to Stereo Amplifier ......... 5 Specifications ........................ 15
Adjusting the Tonearm ................. 6 Line Voltage Selector Switch ........... 16
Panel Facilities ....................... 8

FEATURES

Electronic Full Auto Mechanism and Release
Switch

The model's full auto mechanism is based on optical,
and therefore no-contact, detection principles so that force
is not needlessly exerted on the tonearm. When the switch
is depressed, the tonearm automatically swings over to the
record and play begins. All the controls are arranged at the
front so that records can be played and the controls
operated with the dust cover down. This effectively in-
creases the handling ease of the turntable. Furthermore, the
auto mechanism can be released with the flick of a switch,
and this allows you to play non-standard size records where
the autoreturn function would otherwise stop play before
the end of the record.

Quick Repeat Function for Repeat Play

The quick play function is designed to automatically re-
turn the tonearm to the first track on a record for repeat
play after all the tracks have been played. This handy func-
tion means that you can listen to the same tracks any num-
ber of times without even lifting a finger.

Quartz PLL Brushless DC Hall Motor

The model adopts a quartz PLL system which compares
the waveforms of the high-precision reference oscillator
employing a quartz crystal with the output waveforms of
the frequency generator built into the rotor of the motor,
and thereby controls the rotational speed of the motor.
This system features superb time and temperature drift as
well as load resistance characteristics, so the motor guaran~
tees speed accuracy at all times.

Precision-engineered Parts for an Excellent Speed
Performance

The precision-finished center shaft and bearings (with a
circularity of less than 0.2g) and the platter with its high
inertial mass of 340kg-cm3 prove to be a winning combina-

-

2

tion in this model. Together with the quartz PLL brushless
Hall motor, they yield such top-notch characteristics as a
wow and flutter of less than 0.025% (WRMS) and a signal-
toonoise ratio of better than 75dB (DIN-B). This is a truly
professional performance.

All-electronic Durable Quick Stop Function

The model incorporates an allelectronic brake to bring
the platter to a halt instantly. When the tonearm swings
back to the arm rest, a current flowing in the opposite
direction to that determining the platter's rotation passes to
the motor drive coil and, in an instant, the platter is
stopped rotating. This function is convenient for changing
over records speedily.

No-howl, Vibration-resistant Coaxial Suspension
System

The platter and the tonearm are secured to the base
board, and the base board is spring-mounted and separated
from the cabinet with what Pioneer calls the coaxial sus-
pension construction. This cuts out virtually all of the
vibrations transmitted from the floor, and greatly reduces
the chances of howl.
