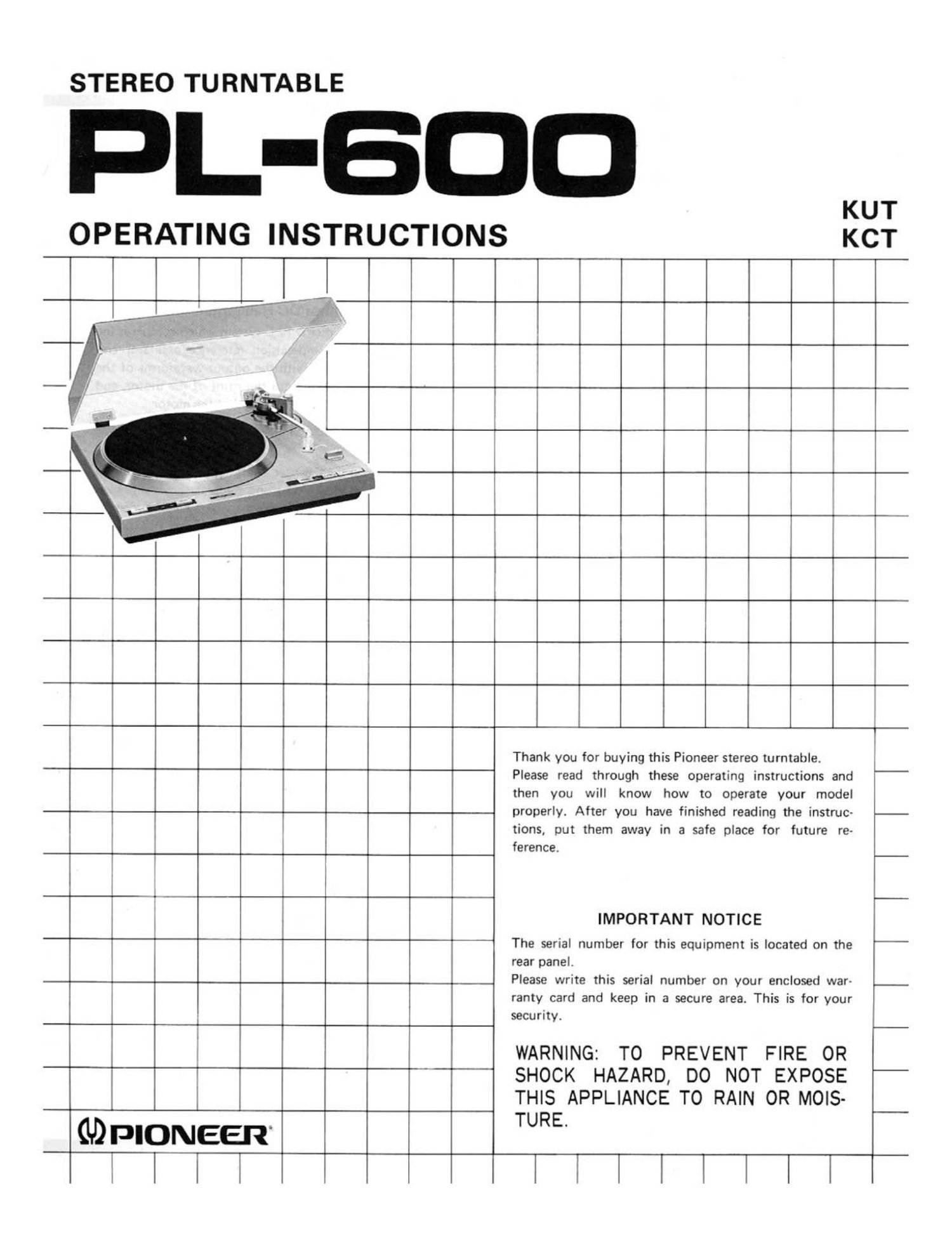

Page 1

STEREO TURNTABLE

L-E-I
KUT

OPERATING INSTRUCTIONS KCT

Thank you for buying this Pioneer stereo turntable.

Please read through these operating instructions and
then you will know how to operate your model

tions, put them away in a safe place for future re-
ference.

IMPORTANT NOTICE

The serial number for this equipment is located on the
rear panel.

ranty card and keep in a secure area. This is for your
security.

WARNING: TO PREVENT FIRE OR
l SHOCK HAZARD, DO NOT expose -
1 THIS APPLIANCE TO RAIN 0R MOIS-

GDPIONEER TURE'

l

l

properly. After you have finished reading the instruc- -

Please write this serial number on your enclosed war- _

llll llllllll

Page 2

IIIIIIIIIIIIIIIIIIIIII-I-I-I-I-I-I-I-I-I-II
FEATURES

Electronic Full Auto Mechanism
The model's full auto mechanism is based on optical, and

CONTENTS

Features ............................. 2

A P 3 therefore no-contact, detection principles so that force is
ssembly rocedure """""""""""" not needlessly exerted on the tonearm. When the switch is

Installation Precautions ................... 5 depressed, the tonearm automatically swings over to the

Connections to Stereo Amplifier ............. 5 record and play begins.

Adjusting the Tonearm .................... 6 Quartz PLL BYUSMBSS DC Ha" MOtOl

Panel Facilities ......................... 8 The model adopts a quartz PLL system which compares the

waveforms of the high-precision reference oscillator em-
ploying a quartz crystal with the output waveforms of the
Adjusting the Stylus Descent Position .......... 12 frequency generator built into the rotor of the motor, and
thereby controls the rotational speed of the motor.

Operation ............................ 10

Maintenance ........................... 12
Troubleshooting ........................ 13 Precision-engineered Parts for an Excellent Speed
Specifications .......................... 14 Performance

The precision-finished center shaft and bearings (with a
circularity of less than 0.211) and the platter with its high
inertial mass of 330kg-cm2 prove to be a winning combi-
nation in this model. Together with the quartz PLL brush-
less Hall motor, they yield such top-notch characteristics as
a wow and flutter of less than 0.025% (WRMS) and a
signal-to-noise ratio of better than 78dB (DIN-B). This is a
truly professional performance.

All-electronic Durable Quick Stop Function

The model incorporates an all-electronic brake to bring the
platter to a halt instantly. When the tonearm swings back to
the arm rest, a current flows in the opposite direction to
the platter is rotation and passes to the motor drive coil
and, in an instant, the platter is stopped rotating.

No-howl, Vibration-resistant Coaxial Suspension
System

The platter and the tonearm are secured to the base board,
and the base board is springmounted and separated from
the cabinet with what Pioneer calls the coaxial suspension
construction. This cuts out virtually all of the vibrations
transmitted from the floor, and greatly reduces the chances
of howl.
