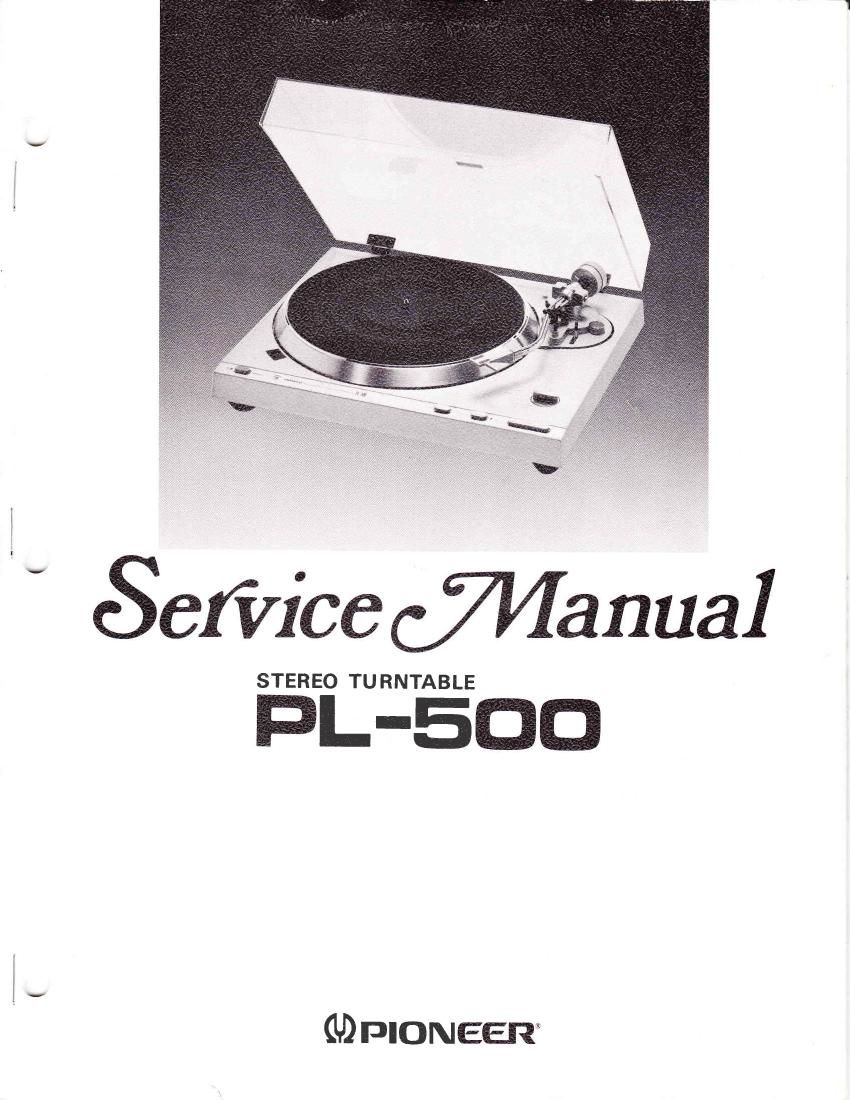

Pioneer pl 500 service manual

Page 2

MODEL PL-500 COMES IN THREE VERSIONS DISTINGUISHED AS FOLLOWS:

Type Voltage Remarks
KCT 120V only Canada model (Without cartridge)
KUT 120v only U.S.A. model (Without cartridge)
5 110V, 120V, 220V and 240V (Switchable) General export model (Within cartridge)
1. SPECIFICATIONS ..................... 3
2. PANELFACILITIES............; ....... 4
3. DISASSEMBLY
3.1 Cabinet. ........................ 6
3.2 Tonearm ........................ 7
4. ADJUSTMENTS
4.1 0.0. Motor Operation Adjustment ....... 8
4.2 Mechanism Adjustments .............. 9
5. PACKING ........................... 10
6. EXPLODED VIEWS AND PARTS LIST
6.1 Cabinet ......................... 11
6.2 Subpanel ........................ 14
7. SCHEMATIC DIAGRAM (KUT, KCT) ........ 17

8. P.C. BOARD CONNECTION DIAGRAMS
(KUT, KCT)

8.1 Parts List of P.C. Board Assembly

(KCT, KUT) ...................... 21

9. SCHEMATIC DIAGRAMIS) ............... 23
IO. P.C. BOARD CONNECTION DIAGRAMSIS)

10.1 Parts List of P.C. Board Assembly . . . . . . . 26

For description of the D. D. motor, refer to the
PL-630 service manual (ART-314) and for full auto
mechanism, refer to the PL-3000 service manual
(ART-350).
