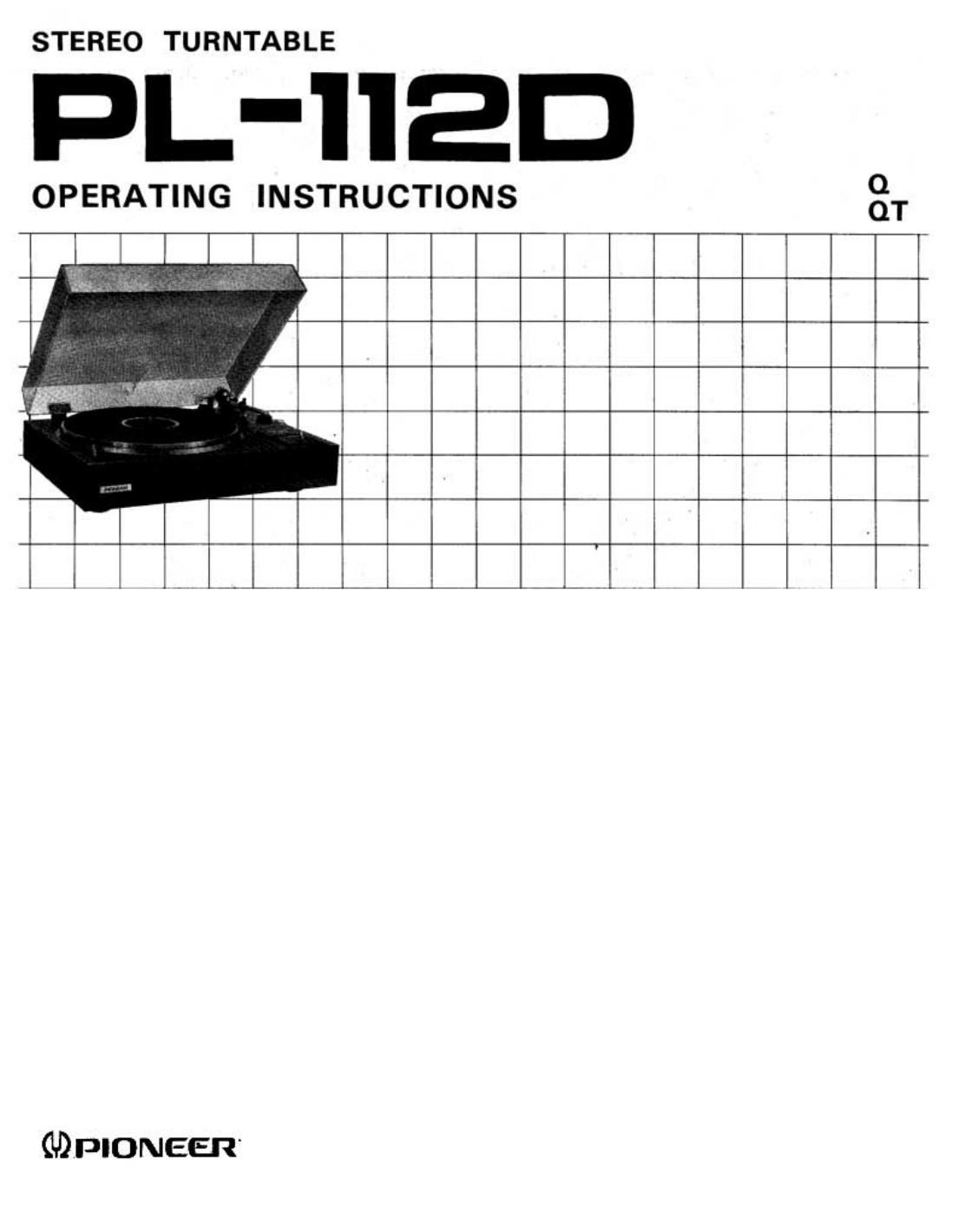

Page 1

STEREO TURNTABLE

PL-IIED

OPERATING INSTRUCTIONS 3T

5).;

QDPIONEER

Page 2

The PL-112D is a precision belt driven turntable.
It is available in two versions: one which includes
the PC-136 phono cartridge, and the other without
a supplied cartridge. Please read these Operating
Instructions thoroughly before employing this
turntable.

CONTENTS

PL-llZD Features ................ 2
Attaching the Cartridge ............ 3
Assembly Steps .................. 4
Component Locations ............... 5
Tonearm Adjustments ............. 6
Stereo Amplifier Connections ....... 7
Dust Cover ...................... 7
Panel Facilities ................... 8
Operation ....................... 9
Care of Your Turntable ............. 10
Commercial Power Source .......... 10
Conditions Frequently Mistaken for

Malfunction ...................... 11
Specifications .................... 12
About Furnished Cartridge .......... 12

The PL-1120 has been factory adjusted prior to shipment
for use in the area in which it is sold. if moving it to
a location where power source voltage or frequency differs,
adjust as described in the section "Commercial Power
Source". Before using the turntable. refer to Lubrication
on Page 10 and apply the accessory oil to rotating parts.

PL-112D FEATURES

Precision Belt Drive with 4-pole Synchronous
Motor

Stable rotation of the 30cm diecast aluminum alloy
platter is maintained by the carefully engineered 4-pole
synchronous motor and belt drive system. The smooth
running of the motor is unaffected by fluctuations in line
voltage and load. while even the slightest vibrations from
the motor are absorbed by the polyurethane belt. Hi9!
performance is exemplified by the 0.07% (WRMS) wow
and flutter, and 63dB (DIN B) signal to noise ratio.

High Sensitivity S-shaped Tonearm

The tonearm gimbal incorporates hiyi precision angular
contact bearings, whose low vibration and friction ensure
high sensitivity together with long term reliability. Anti-
skating and lateral balance controls are included for
optimum performance with high compliance cartridges and
light tracking forces, and the direct readout of the tracking
force is especially convenient when replacing the cartridge.

Numerous Additional Features

A host of additional features enhance the convenience
and performance of the PL-lIZD. Among these are
a lightweight, high rigidity aluminum headshell, low ca-
pacitance output cord, free stop dust cover hinges that
allow easy installation and removal, and an oil-damped
tonearm elevation mechanism to protect valuable records
and stylus. The interior of the cabinet is lined with
aluminum foil to screen out external electrical noise
which is often picked up from other household appliances,
while motor and external vibrations are also isolated by
the vibration-absorbing spring suspension design.

Sophisticated Cabinet Styling

The baseplate is made from mineral solid, at new high
density material which combines excellent acoustic ab-
sorption properties to prevent resonance with high strength
and attractive finish. In addition the elegant wood grain
finish of the cabinet ideally matches the high quality
engineering of the PL] IZD.
