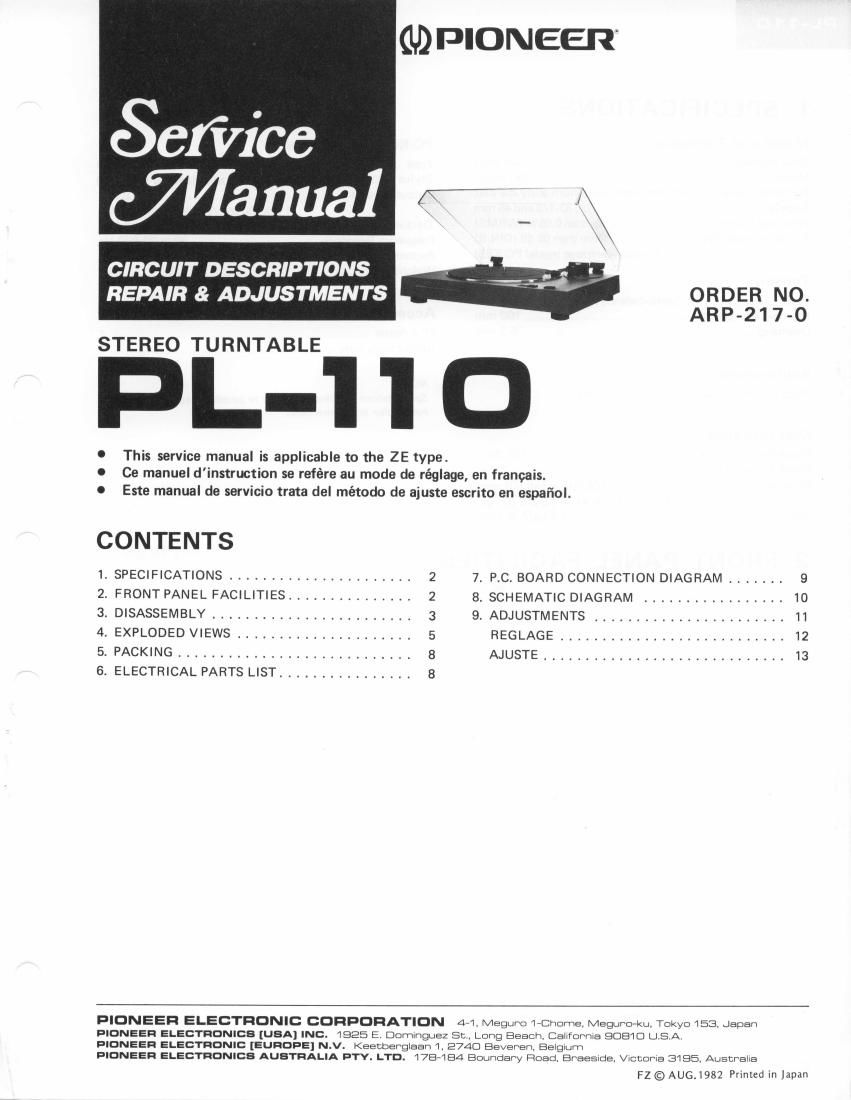

Pioneer pl 110 service manual
This is the 13 pages manual for pioneer pl 110 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pl 110 service manual (Ocr-read)
Page 1
1. SPECIFICATIONS Motor and Turntable Drive System Belt-drive Motor ......... DC motor Turntable Platter ..... 280mm diam. aluminum alloy diecast Speeds 3-1/3 and 45 rpm Wow and Flutter . . .. . .. . Less than 0.057o (WRMS) Signal-to-Noise-Ratio More than 68 dB (DlN-B) (with Pioneer cartridge model PC-K65) Tonearm Type .......... Static-balance type, Straight pipe arm Effective Arm Length . .. . 190 mm Overhang 9.3 mm Subfunctions Auto-return mechanism, Free stop hinges Miscellaneous Power Requirements .. D.C. 20V Power Consumption .......... .................2.4W Dimensions 422 (Wl x 108 (H) x 345 (D) mm 16-3/8 lWl x 4-1/4 (H) x 13-5/8 (D) in. Weight 3.2kg/7 tb 1 oz PC-K65 Specifications Type ......... Moving Magnet type Stylus ......... 0.5 mitdiamond (pN-K6S) Output Voltage 3.5 mV (1 kHz, 50 mm/s Peak velocity, LAT) Tracking Force .......... 2.1 g to 2.9 g (proper 2.5 g) Frequency Response 20 - 2O,OOO Hz Recommended Load ..... 47 kO Weight ........ 3.4 g Accessories EPAdapter ........1 Instructions note............. ....... 1 NOTE: Specifications and design subject to possible modification without notice, due to improvements. O PLATTER @ PLATTEB MOUNTING SHAFT O RUBBER MAT (D EP ADAPTER This is used when playing records without a "middle." (l cABrNEr ti? ousr covER 2. FRONT PANEL FACILITIES O speeo swrrcH Set this switch in accordance with the speed of the record which is to be played. Depr6 "3" for playing 3-1/3 rpm records. Depres "45" lor playing 45 rpm records. @ cur swrrcH Depress this switch to stop play. @ CARTRIDGE (Pc.K65) @ HEADSHELL O ToNEARM @ ARM REST This serves to hold and clamp the tonearm. When moving the tonearm, release the clamp. e
Page 2
3. DISASSEMBLY Rubber mat assembly Tonearm assembly PU plate (B) assembly @ An14I
