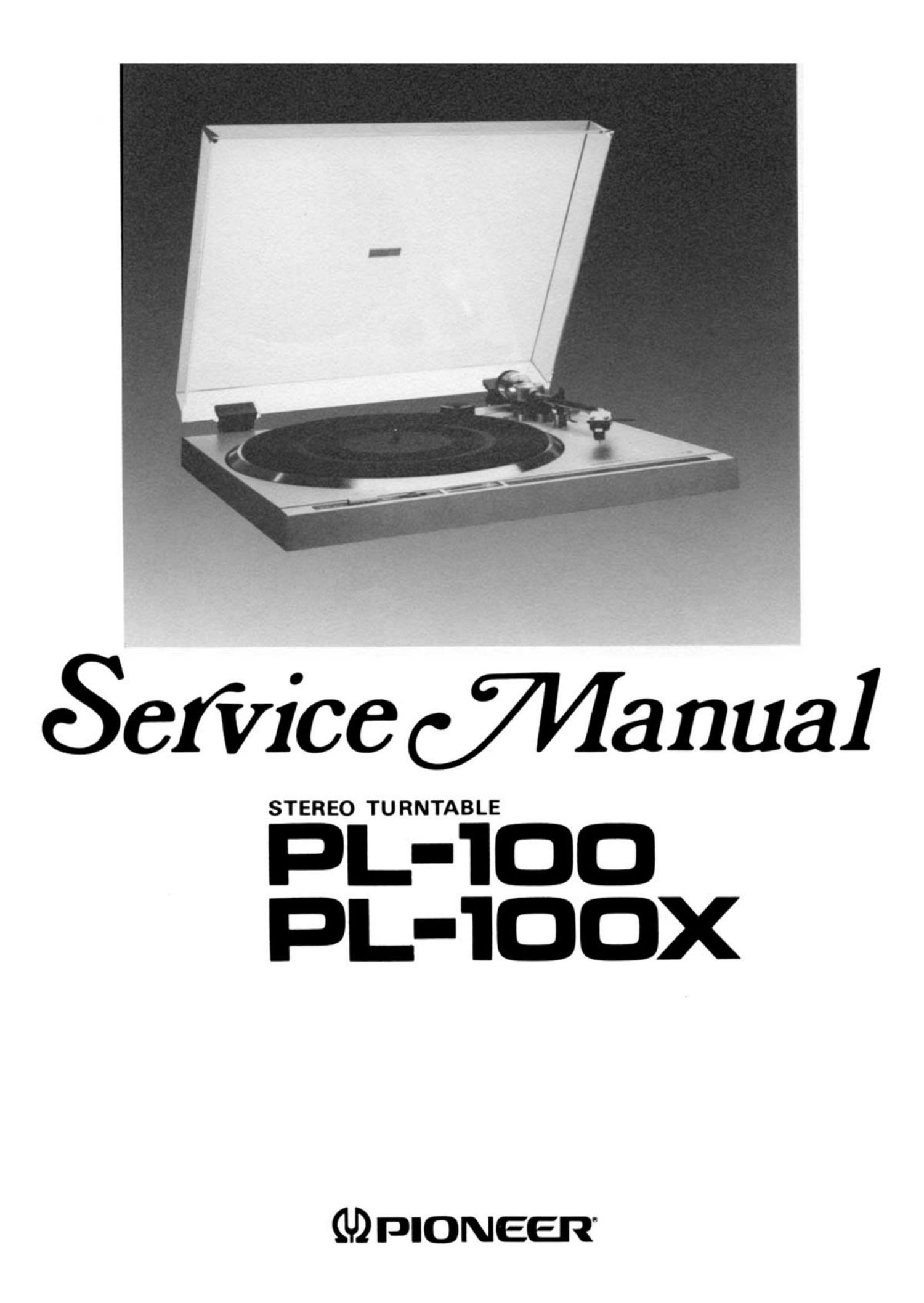

Pioneer pl 100 x service manual

Page 2

MODEL PL-IOO COMES IN SEVEN VERSIONS DISTINGUISHED AS FOLLOWS:

Type Voltage Remarks

KU AC 120V only U.S.A. model (with cartridge)

KUT AC 120V only U.S.A. model (without cartridge)

KCT AC 120V only Canada model (without cartridge)

WE AC 220V - 240V Europe model (with cartridge)

WB AC 220V - 240V United kingdom model (with cartridge)
WP AC 220V - 240V Oceania model (with cartridge)

R AC 110-120/220-240V (switchable) General export model (with cartridge)

0 This service manual is applicable to the PL-100/WE, WB, WP, PL-100X/WE, WB. For servicing of the
other types, please refer to the additional service manual.

CONTENTS

1. SPECIFICATIONS ..................... 3 8. EXPLODED VIEWS
2. PANEL FACILITIES ................... 3 8.1 Exterior ....................... 12
3. DISASSEMBLY 8.2 Sub-panel ...................... 15
3.1 Panel and Base Plate ................ 4 9. SCHEMATIC DIAGRAM, P.C. BOARDS
3.2 Arm Base and Sub.Panel .............. 5 E'OsNrNECTION DIAGRAM AND PARTS
4. MECHANISM DESCRIPTION ............. 6 9_1 Parts List ...................... 16
5' ADJUSTMENT 9.2 Schematic Diagram ................ 17
5.1 Auto-return Adjustment ............. 8 9.3 P.C. Boards Connection Diagram ....... 18
5-2 F-G- ""OtorMiustment -------------- 8 10. PACKING .......................... 19
5.3 Arm-elevation Adjustment ............ 8
6. TROUBLE SHOOTING
6.1 Auto-return Does not Work ........... 9
6.2 Return is Fast (Return at 1mm Pitch) ..... 10
7. PRECAUTIONS FOR REASSEMBLY
7.1 Areas That Require Lubrication ....... 10

7.2 Precautions for Attachment of Parts
and Reassembly .................. 11
