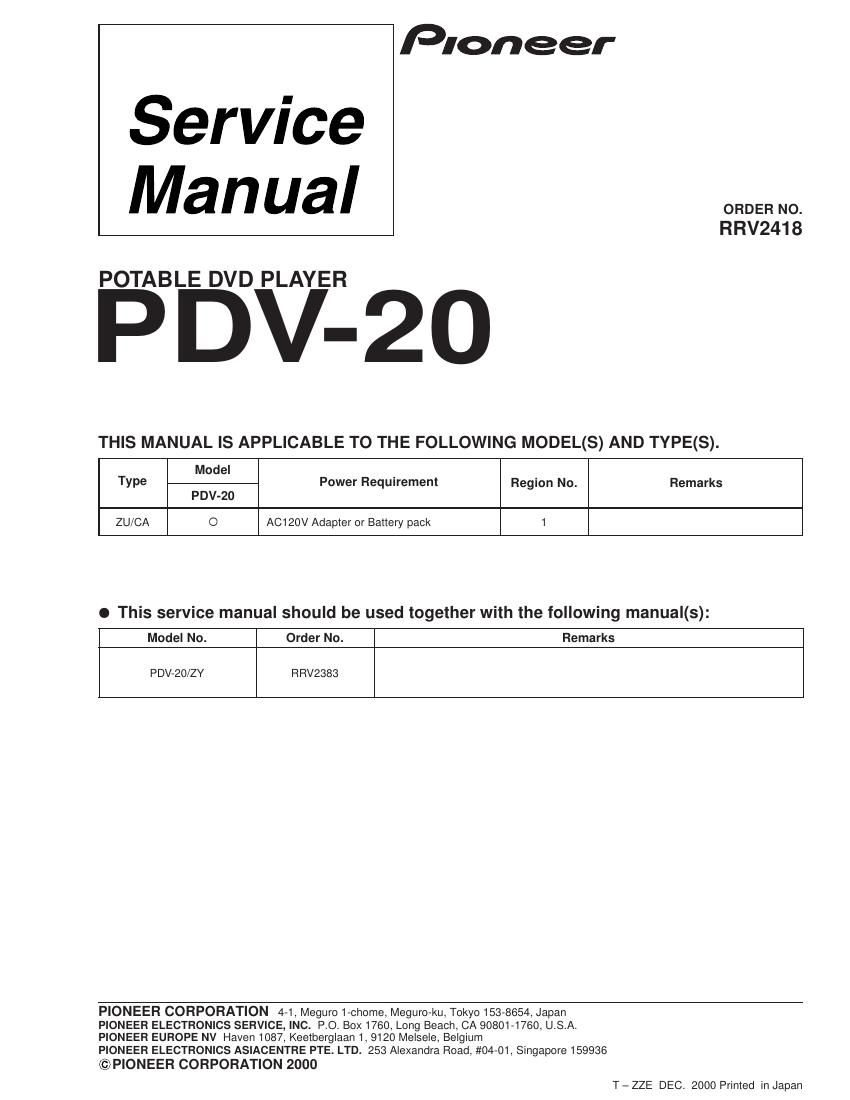

Pioneer pdv 20 service manual
This is the 3 pages manual for pioneer pdv 20 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdv 20 service manual (Ocr-read)
Page 1
PDV-20 2 7 CONTRAST TABLE PDV-20/ZU/CA and PDV-20/ZY are constructed the same except for the following: PCB ASSEMBLIES P7 - 1 PDVDM Assy VWS1461 VWS1460 P7 - 2 PDVDS Assy VWG2259 VWG2258 PACKING P5 - 2 AC Adapter VWX1229 VWX1228 P5 - 3 Power Cable ADG1127 RDG1034 P5 - 7 Polyethylene Bag B5 VHL1051(´1) VHL1051(´2) P5 -12 Packing Case VHG1991 VHG2037 P5 -14 NSP Warranty Card ARY7022 ARY7045 P5 -15 Manual Holder VHC1062 Not used P5 -17 Master Carton VHG1990 VHG2036 P5 -20 Name Plate Label VRW1858 VRW1859 P5 -21 Optical Cable VDE1062 Not used P5 -22 Operating Instructions (French) VRD1120 Not used P5 -23 Operating Instructions (Italy) VRD1121 Not used P5 -24 Operating Instructions (German) VRD1122 Not used P5 -25 Operating Instructions (Dutch) VRD1123 Not used P5 -26 Operating Instructions (Swedish) VRD1124 Not used P5 -27 Operating Instructions (Spanish) VRD1125 Not used P5 -28 NSP Polyethylene Bag Z21-019 Not used EXTERIOR P7 -17 Body VNK4718 VNK4813 P7 -18 Top Cover VNK4755 VNK4815 P7 -25 Chassis VNK4754 VNK4814 P7 -31 Label Not used VRW1867 P7 -32 65 Label Not used ARW7050 P7 -33 NP Knob VNK4719 Not used P7 -34 NSP Caution Label (F) VRW-328 Not used P7 -35 Label (Service) Not used VRW1815 P7 -36 Caution Label VRW1860 Not used Ref. No.Remarks PDV-20/ZY PDV-20/ZU/CAPart No. Mark Symbol and Description 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 ......................................................................... RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F · For PCB assemblies, Refer to ÒCONTRAST OF PCB ASSEMBLIESÓ.
Page 2
PDV-20 3 7 CONTRAST OF PCB ASSEMBLIES R603 Not used RS1/16SS0R0J *1 R721, R728 RS1/16SS0R0J Not used R722 RS1/16SS153J Not used R729 RS1/16SS103J Not used S603 VSG1022 Not used S604 VSH1024 Not used Mark Symbol and DescriptionPart No. VWS1461 VWS1460Remarks PDVDM ASSY VWS1460 and VWS1461 are constructed the same except for the following: *1: This part is used for PDV-LC20/ZU/CA. Refer to the service manual RRV2383 (P16). R2007 RS1/16S123J RS1/16S333J R2011 RS1/16S473J Not used R2012 Not used RS1/16S473J *1 R2018 RS1/16S153J RS1/16S562J Mark Symbol and DescriptionPart No. VWG2259 VWG2258Remarks PDVDS ASSY VWG2258 and VWG2259 are constructed the same except for the following: *1: This part is used for PDV-LC20/ZU/CA. Refer to the service manual RRV2383 (P27).
