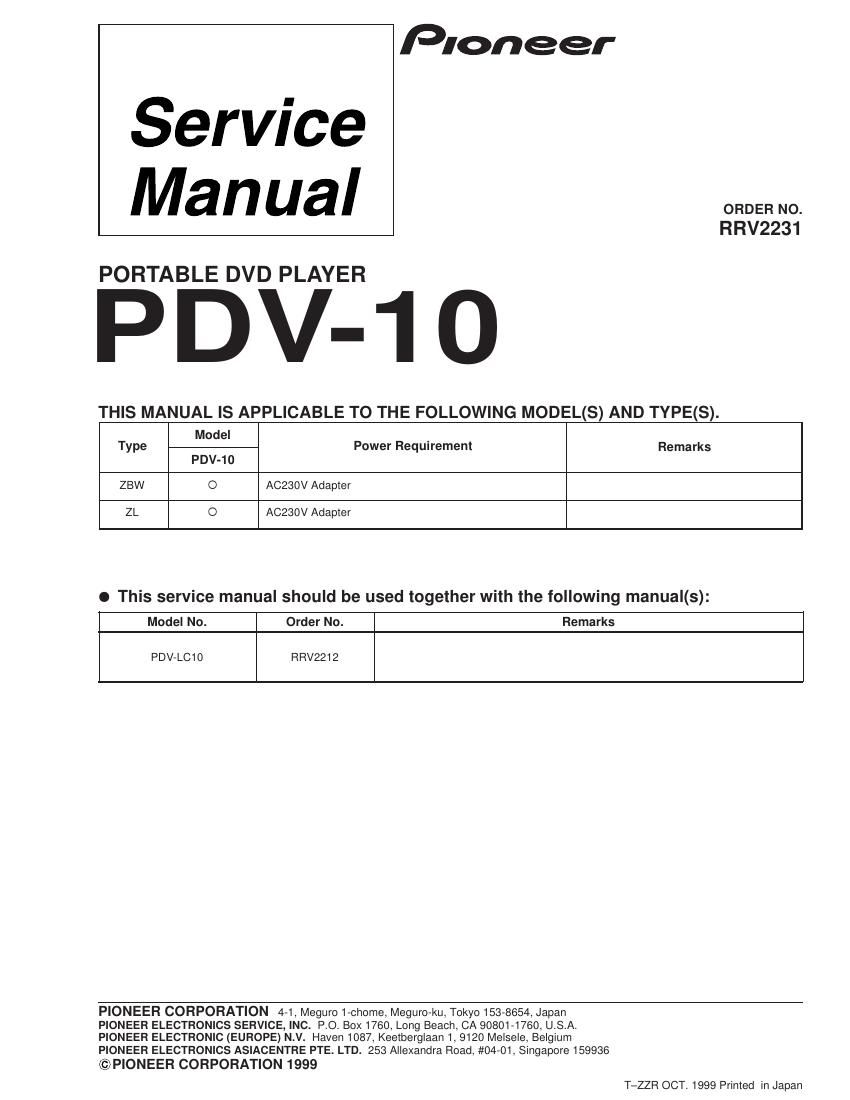

Page 1

Pioneer

Service
Manual

RRV2231

PORTABLE DVD PLAYER

PDV-1 0

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model .
Type Power Requirement Remarks
PDV-1O
ZBW O AC23OV Adapter
ZL O ACZSOV Adapter

I This service manual should be used together with the following manual(s):
Model No. Order No. Remarks

PDV-LC10 RRV2212

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Allexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 1999
T-ZZR OCT. 1999 Printed in Japan

Page 2

PDV-10

I CONTRAST OF MISCELLANEOUS PARTS

NOTES .' 0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, he sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex. 1 When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J: 5%, andK: 10%).
5609»56x10l->561 ................................................... RBI/4PUEIEEJ
47kQ->47><103->473 RDl/4PUEIEEJ
0.5Q->R50 ................. RN2H@-@K
lQ->1R0 ....................... ................ RS1PEE@K
Ex. 2 When there are 3 eflective digit. such as m high precision metal film resistors).
5.62kQ->562X10->5621 .. RN1/4PC- .mF
l CONTRAST TABLE
PDV-10/ZL, PDV-10/ZBW and PDV-LCt O/ZL are constructed the same except for the following :
Part No.
II? Mark Symbol and Description PDV-LC10/ PDV-10/ PDV-10/ Remarks
ZL type ZL type ZBW type
PCB ASSEMBLIES
P9-8 NSP PDVDM ASSY VWS1407 VWS1408 VWSI408
P9-26 MAIN ASSY (PDVDM Assy) VXX2677 VXX2690 VXX2690
PACKING
P5-20 Battery Pack (NI-MH) VEM1026 Not used Not used
P5-21 Packing Case (Baby) VHG1866 Not used Not used
P5-22 Packing Case (Battery) VHG1868 Not used Not used
P5-23 Packing Carton VHG1870 VHG1885 VHGI 885
P5-26 A Battery Charger VWY106O Not used Not used
P5-27 Battery Case VXX2696 Not used Not used
P5-28 Mirror Mat Sheet DHL1050 VHB1074 VHBIO74 Insulating Aircap
P5-29 Pad A VHB1072 Not used Not used
P5-30 Pad B VHB1073 Not used Not used
P5-31 Packing Plat (Side) VH01054 Not used Not used
Intermediate Plat Not used VHC1046 VHC1046 No.1
Bottom Board Not used VHC1048 VHC1048 No.2
Master Carton Not used VHG1884 VHG1884 No.3
Hand hold Not used VEE1006 VEE1006 No.4
ZBW LAVEL Not used Not used VRW1812 No.5
EXTERIOR
P7-1 LCD Cover VNA2070 Not used Not used
P7-2 Insulating Sheet L VECZOBO Not used Not used
P7-3 Earth Plate B VBK1092 Not used Not used
P7-4 LCD Monitor VXX2668 Not used Not used
P7-5 LCD Monitor PCB Assy VXX2669 Not used Not used
P7-6 Inverter PCB Assy VXX2670 Not used Not used
P7-7 Protective Tape VE02073 Not used Not used
P7-8 Cushion B VEC1311 Not used Not used
P7-9 Cover Plate VNH1056 Not used Not used
P7-10 Speaker VVY1002 Not used Not used
P7-t1 Earth Plate A VBK1091 Not used Not used
