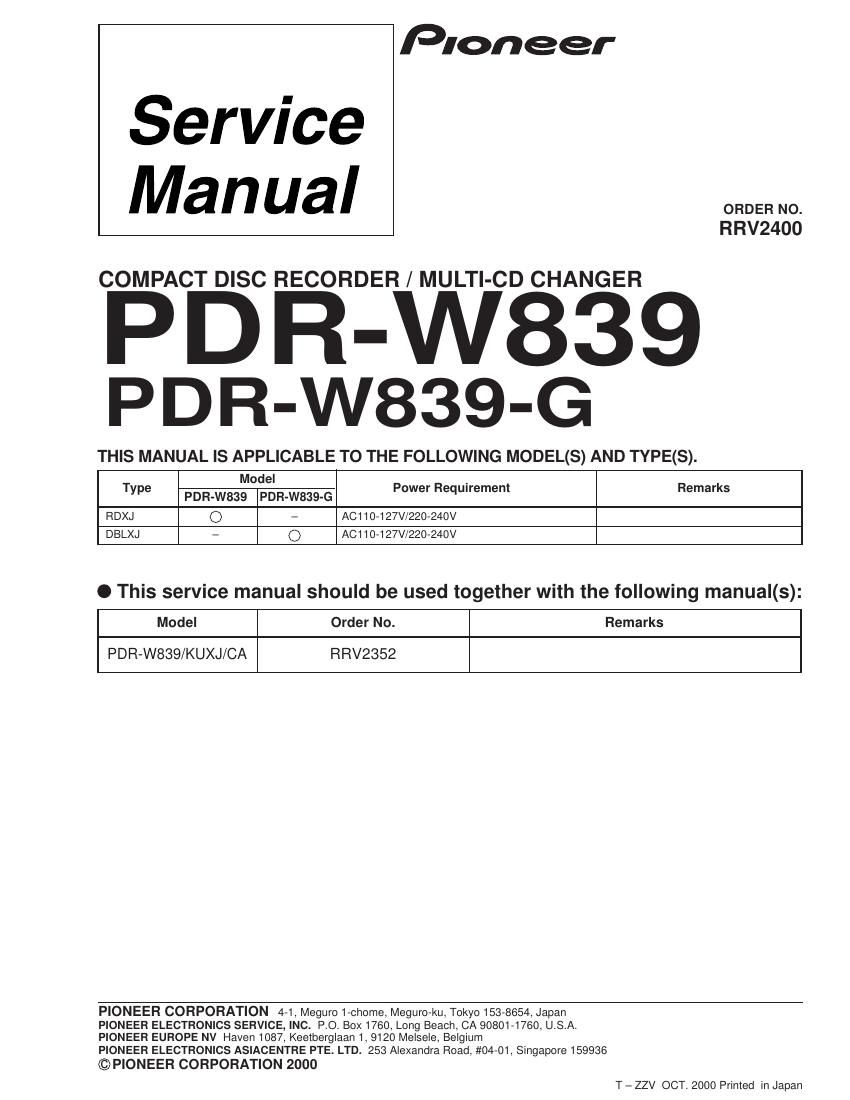

Page 1

Pioneer

Service
Manual

RRV2400

COMPACT DISC RECORDER / MULTI-CD CHANGER

P D R-W839
PDR-W839-G

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model
PDR-W839 PDR-W839-G

RDXJ Q - AC110-127V/220-240V

DBLXJ - Q AC110-127V/220-240V

Power Requirement Remarks

O This service manual should be used together with the following manual(s):

Model Order No. Remarks

PDR-W839/KUXJ/CA RRV2352

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2000
T -ZZV OCT. 2000 Printed in Japan

Page 2

PDR-W839, PDR-W839-G
1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: OParts marked by NSP are generally unavailable because they are not in our Master Spare Parts List.
0 The x/I\ mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Screws adjacent to V mark on product are used for disassembly.
OReference Nos. indicate the pages and Nos. in the service manualfor the base model.
I When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex] When there are 2 efiective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).

560 * 56 X 10 *
47k -- 47 x 103
0.5 -- R50
1 - 1R0 RSIPIEEK
Ex] When there are 3 efiective digits (such as in high precision metalfilm resistors).
5.62k * 562 X 10 a 5621 ------------------ RNl/4PC-E
O CONTRAST TABLE

PDFi»W839/RDXJ, PDR»W839»G/DBLXJ and PDR-W839/KUXJ/CA are constructed the same except for the
following:

Ref. M . . Part No.
ark Symbol and Description Remarks
NO- PDR-WB39 PDR-W839 PDR-W839-G
/KUXJ/CA /RDXJ /DBLXJ
PCB ASSEMBLIES
P64 MAIN ASSY PWM2325 PWM2328 PWM2329 Constructed same.
NSP SUB ASSY PWX1636 PWX1636 PWX1638
P7-1 OPERATING 1 ASSY PWZ4133 PWZ4133 PWZ4135
P7-2 OPERATING 2 ASSY PWZ4141"2 PWZ41412 PWZ41432 2 Constructed same.
P7-3 OPERATING 3 ASSY PWZ41493 PWZ4149a PWZ4151a 3 Constructed same.
P7-4 HEAD PHONE ASSY PWZ4157 PWZ4157 PWZ4159 Constructed same.
PACKING SECTION
P4-1 A AC Power Code ADG7022 ADG1154 ADG1154
A Power Plug Adapter Not used XKM3001 XKM3001 No.1
Optical Fiber Cable Not used ADE7024 ADE7024 No.2
P4-5 Sub Manual (English) PRB1308 Not used Not used
P448 Operating |nstructionslSpanish/Chlnese) Not used PRD1066 PRD1066
P440 NSP Warranty Card ARY7045 Not used Not used
P446 Packing Case PHG2422 PHG2425 PHG2426
P4-21 Caution PRM1077 PRM1076 PRM1076
EXTERIOR SECTION
P643 A Power Socket AKP7032 Not used Not used
P643 A 1PAC Inlet Not used BKP1046 BKP1046
P648 Bonnet Case BR PYY1283 PYY1283 Not used
P648 Bonnet Case GR Not used Not used PYY1284
P649 Rear Base 839KU PNA2554 Not used Not used
P649 Rear Base 839RD Not used PNA2556 Not used
P649 Rear Base 839RDG Not used Not used PNA2557
P6-26 Shield Plate PNB1631 Not used Not used
P6-3O Tray Panel C PNW2936 PNW2936 Not used
P6-30 Tray Panel C G Not used Not used PNW2942
P6-31 Tray Panel B R PNW2981 PNW2981 Not used
P6-31 Tray Panel G R Not used Not used PNW2984
P6-32 NSP Laser Caution Label PRW1516 Not used Not used
P6-35 Disc Caution Label PRW1551 Not used Not used
P6-36 NSP Caution Label Not used PRW1018 PRW1018
P6-43 Power Button B PAC2009 PAC2009 Not used
P6-43 Power Button G Not used Not used PACZOIO
P6-44 Screw (for Bonnet x4) FBT40P080FZK FBT4OP080FZK FBT40P080FN|
