Pioneer pdr 509 g service manual

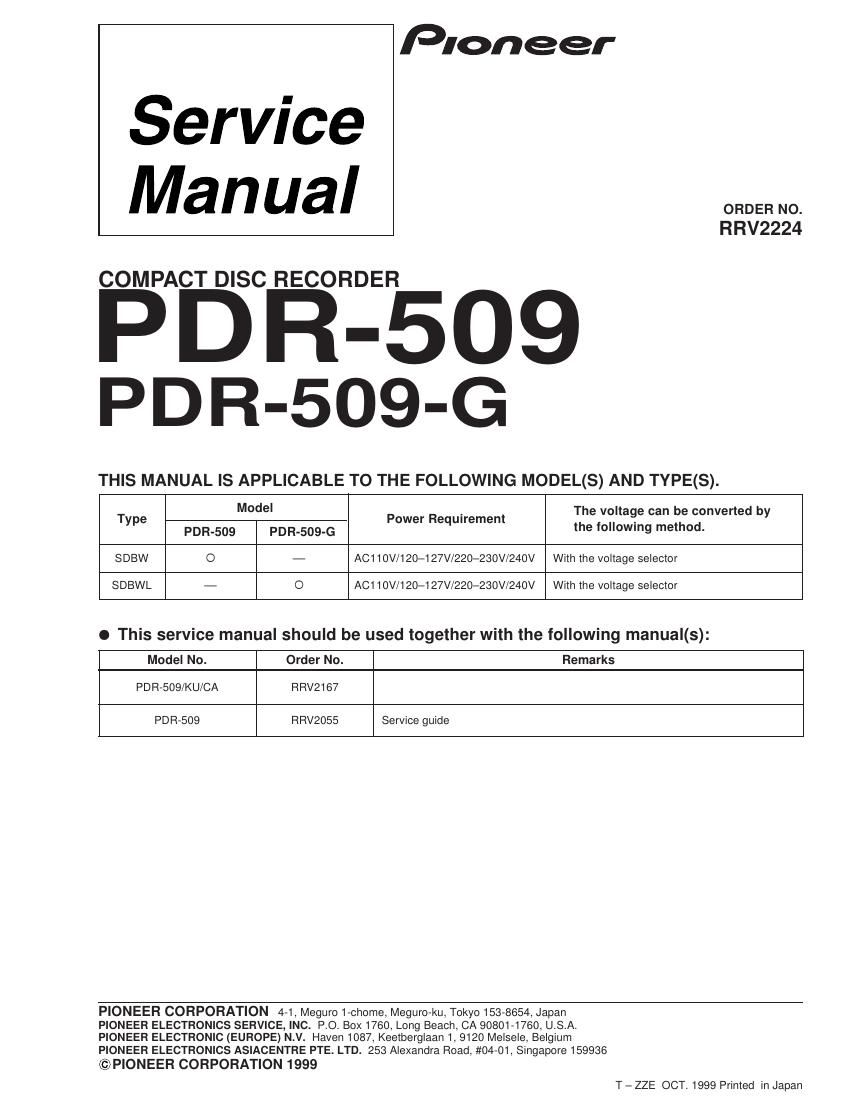

Page 1

Service
Manual

Pioneer

ORDER NO.
RRV2224

COMPACT DISC RECORDER

PDR- 509
PDR-509-G

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

T e Model Power Re uirement The voltage can be converted by
yp FDR-509 PDR-509-G q the lollowing method.

SDBW o - AC110V/120-127V/220-230V/240V With the voltage selector

SDBWL - O AC110V/120-127V/220-230V/240V With the voltage selector

o This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
PDR-SO9/KU/CA RRV2167
FDR-509 RRV2055 Service guide

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melseie, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 1999

T -ZZE OCT. 1999 Printed in Japan

Page 2

FDR-509, PDR-509-G

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES .' 0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safetsfactor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manualfor the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm ( tolerance is shown by
.I = 5%, andK =10%).
5609*56X10->561. RDl/4PU- J
47kQ-v47X105->473 RBI/4PUE J
0.5Q->R50 .. RNZHIE@@K
lQ->1R0... ...RSIPiIIEiflK
Ex. 2 When there are 3 effective dig . such a. n high prec . ion metalfilm resistors).
5.62kn->562x10/->5621 .................................... RN1/4PC- EIF
I CONTRAST TABLE
PDR-509/SDBW, PDR-509-G/SDBWL and PDR-509/KU/CA are constructed the same except for the following:
Part No.
Ref. Mark Symbol and Description FDR-509 PDR-509-G Remarks
N°' KU/CA SDBW SDBWL
PCB ASSEMBLIES
NSP MAIN ASSY PWM2282 PWM2285 PWM2285
P6 - 2 AUDIO ASSY PWZ3996 PW23999 PWZ3999
P6 - 3 DIGITAL |/O ASSY PWZ4020 PWZ4023 PWZ4023
P7 - 3 OPERATING ASSY PWZ3977 PWZ3980 PWZ3980
P6 - 4 POWER SUPPLY ASSY PWZ4008 PWZ4011 PWZ4011
PACKING
P4 - 1 & AC Power Cord ADG7021 ADG1127 ADG1127
P4 - 2 NSP Warranty Card ARY7023 ARY7025 Not used
P4 - 4 Operating Instructions (English) PRB1296 Not used Not used
P4 - 4 Operating Instructions Not used PRE1286 PRE1286
(English/Spanish/Trad-Chinese)
P4 - 9 Packing Case PHG2382 PHG2409 PHGZ410
Caution 220-230V Not used PRM1064 PFIM1064 No. 1
Optical Fiber Cable Not used ADE7024 ADE7024 No. 2
Lb» Power Plug Adapter Not used VKX1007 VKX1007 No. 3
EXTERIOR SECTION
P6 - 7 _/§\ Power Transformer (T1) PTT1356 PTT1359 PTT1359
P6 -14 Bonnet PYY1147 PYY1147 REA1282
P6 -16 Rear Base PNA2525 PNA2528 PNA2539
P6 -19 Tray Panel PNW2932 PNW2932 PNW2933
P6 -20 Power Button RAC2207 RAC2207 RA02205
P6 -27 Screw FBT4OP080FZK FBT40P080FZK FBT40P080FNI
P6 -36 Disc Caution Label PRW1532 Not used Not used
i Swilch Not used FISB1028 FISB1028 No. 4
