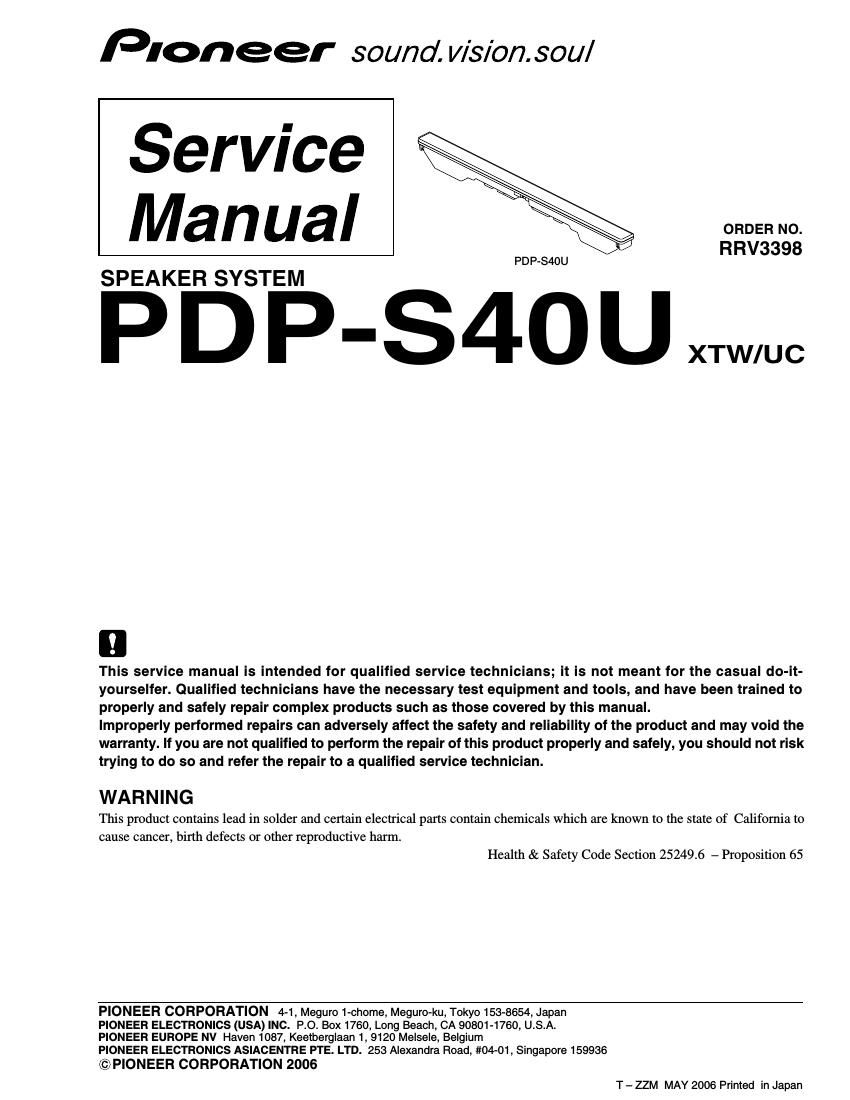

Pioneer pdps 40 u service manual
This is the 6 pages manual for pioneer pdps 40 u service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdps 40 u service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E PDP-S40U 1.REASSEMBLY AND DISASSEMBLY PRECAUTIONS The grille ASSY is attached to the baffle by its bosses and double-sided self-adhesive tape. To detach it, first remove the packing on the top of the unit. Then pry it open little by little by inserting a flat blade screw- driver (covered with a cloth) into the slot between the grille ASSY and the baffle. The woofer is attached to the baffle by 4 internal screws. To detach it, unfasten the 6 screws on the back of cabinet C. Then, unfasten the 12 screws on the front of cabinet L. Do the same for cabinet R. When attaching, the plus terminal should be facing inward. The tweeter is attached to the baffle by 2 internal screws. To detach it, unfasten the 6 screws on the back of cabinet C. Then, unfasten the 12 screws on the front of cabinet L. Do the same for cabinet R. When attaching, the plus terminal should be facing upward. It is hard-wired between the input terminal and the network ASSY. When detaching the Network ASSY, swing to pull it out. Grille ASSY Cloth Screwdriver(-)Baffle Slot *Be careful not to damage the grille ASSY by bending too much. To re-attach it, press it to the baffle using new double-sided self-adhesive tape. Grille ASSY Baffle Grille ASSY Baffle Then, attach new packing on the top of the unit. Grille ASSYBaffle Packing Tape SEH1089 Baffle Network ASSY 1 2 1 Input terminal
Page 2
3 1 234 1 23 4 C D F A B E PDP-S40U 2.EXPLODED VIEW 2.1 PACKING PACKING PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: Mark No. Description Part No. Mark No. Description Part No. 1 25 27 26 29 19 33 33 7 1328 32 32 24 24 31 3 5 2 4 6 8 12 10 11 9 14 18 1516 17 2023 22 21 34 NSP 1 Accessory Set SME3695 2 Speaker Wire SDS1191 3 Polyethylene Bag S1 SHL1439 NSP 4 Screws Set SME3696 5 Screw BMZ50P100FTB 6 Polyethylene Bag S0 SHL1438 7 Bracket Assy(L) SXG1107 NSP 8 Label(L) SAK1024 9 Gasket SED1136 10 Gasket(L) SED1137 11 Gasket SED1138 NSP 12 Bracket L SNA1465 13 Bracket ASSY(R) SXG1108 NSP 14 Label(R) SAK1025 15 Gasket SED1136 16 Gasket SED1138 17 Gasket(R) SED1139 NSP 18 Bracket R SNA146619 Bracket ASSY(C) SXG1109 20 Gasket SED1140 21 Gasket SED1141 22 Gasket SED1142 NSP 23 Bracket C SNA1467 24 Form Pad(Side) SHA2544 25 Form Pad(C-T) SHA2545 26 Form Pad(C-M) SHA2546 27 Form Pad(C-B) SHA2547 28 Protection Sheet S3 SHC1846 29 Protection Sheet S1 SHC1847 30 - - - - - 31 Packing Case SHG2755 32 Packing Bag S2 SHL1450 33 Polyethylene Bag S0 SHL1451 NSP 34 CS ASSY SMW1945 NSP Label Serial SRW1112
