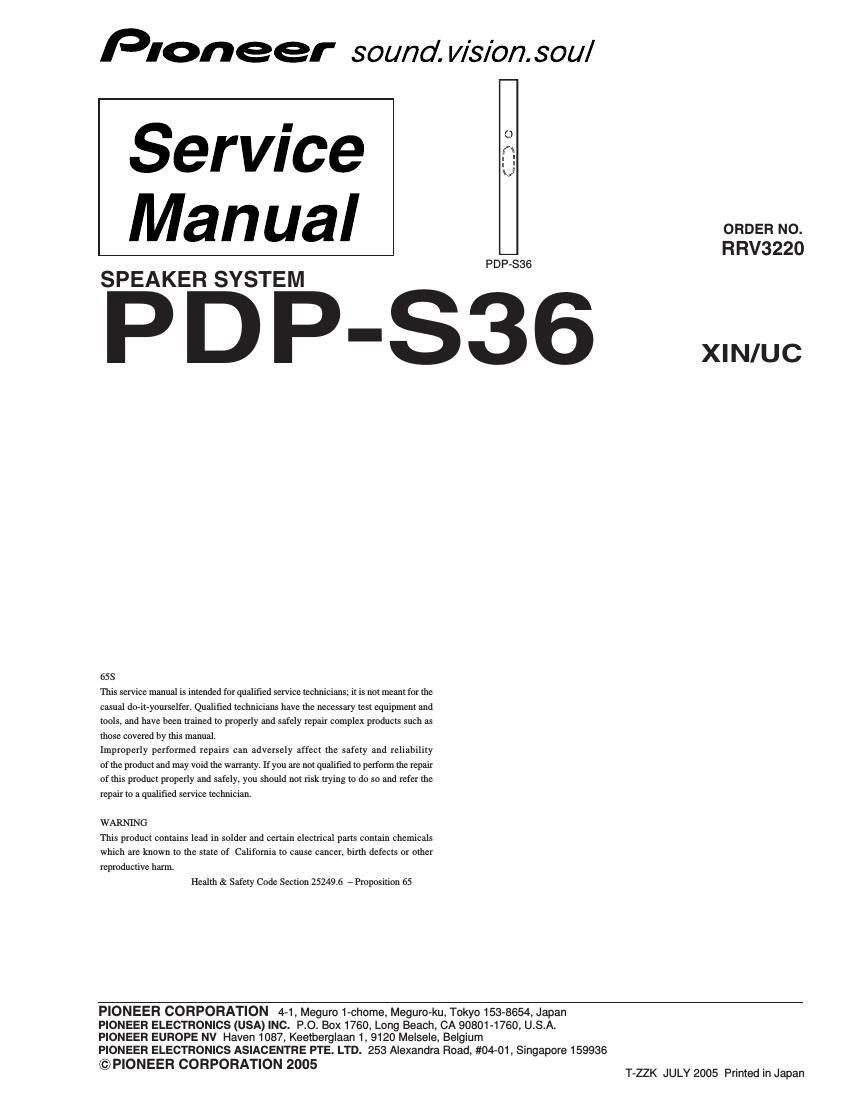

Pioneer pdps 36 service manual
This is the 9 pages manual for pioneer pdps 36 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdps 36 service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E PDP-S36 FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the baffle using double-sided self-adhe- sive tape. To avoid damaging the cabinet, work with the speaker on top of a blanket or similar, face the grille upward. There is slot in the lower part of the speaker. Insert a screw- driver(-) into slot and push up detach the lower part. Taking care not to damage the grille and baffle, lift the grille a little bit at a time with hand. When reattaching the grille, use double-sided self-adhesive tape in the locations shown in the diagram and press the grille assy into place. The grille is fixed using boss and double-sided self-adhesive tape(The tape is in the locations indicated in the diagram be- low). Do not use a dryer to heat the self-adhesive tape when removing the grille. The woofer is attached to the baffle by 4 internal screws. To detach it, first remove the baffle from cabinet. Then unfasten those screws. When attaching the woofer, face its plus terminal downward. When changing it, stick the felt(SED1123 4pcs.) on the speci- fied position of the woofer frame. The tweeter is attached to the baffle by 2 internal screws. To detach it, first remove the baffle from cabinet. Then unfasten those screws. When attaching it, face its plus terminal (bigger terminal) rightward. LOCATIONS TO FIX DOUBLE-SIDED SELF-ADHESIVE TAPE (32) Tape (SEH1077 x2) Grille ASSY (Back Side) GRILLE Slot Screwdriver(-) Grille Baffle LOCATIONS TO FIX FELT FELT (SED1123) FELT (SED1123)
Page 2
3 1 234 1 23 4 C D F A B E PDP-S36 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP Cabinet SNK2899 NSP Baffle R SNK2917 NSP Baffle L SNK2918 Grille ASSY SMG1854 NSP Grille Cloth SAS1598 NSP Felt SED1124 NSP Felt SED1125 NSP Grille Frame SMH1111 NSP Cosmetic Frame SNK2900 Network ASSY SWN1755 NSP Model Label (L) SAN3724 NSP Model Label (R) SAN3725 NSP Insert Nut M5 SBN1056 NSP Packing (BOSS: WF TW) SEB1244 NSP Gasket (INP-SIDE) SEB1255 NSP Gasket (CAB(UP BOT)) SEB1294 NSP Gasket (CAB(DUCT-BOT)) SEB1295 NSP Gasket (CAB(UP WF DUCT-UP)) SEB1296 Gasket (INP-BACK) SEC1724 NSP Gasket (CAB SHORT) SEC1965 NSP Gasket (CAB LONG) SEC1966 NSP Gasket (CAB BIRI-SHORT) SEC1967 NSP Gasket (CAB TW) SEC1968 NSP Gasket (G-B BIRI-SHORT UP) SEC1969 NSP Gasket (G-B BIRI-LONG) SEC1970 NSP Gasket (G-B BIRI-SHORT BOT) SEC1971 Gasket (CAB BIRI-LONG) SEC1972 NSP Gasket (MDF BAR) SEC1973 NSP Felt (CB(INP WF)) SED1113 Felt (BOSS(WF)) SED1123 NSP Felt (DUCT) SED1133 Tape (CAB(WF-SIDE)) SEH1076 Tape (GRILLE ASSY) SEH1077 Input Terminal SKX1097 NSP MDF Bar SLX1162 NSP Port Tube Ring 26 SMR1382 NSP Paper Tube 26 SMR1396 NSP Acoustic Absorbent (DUCT) SMT1243 NSP Acoustic Absorbent (UP UP-B BOT) SMT1297 NSP Acoustic Absorbent SMT1298 (UP UP-R WF INP BOT) NSP Acoustic Absorbent SMT1299 (DUCT INP-S(ROLL)) NSP Label Serial (Model Label L,R) SRW1083 Speaker (Woofer) H132DC65-51F Speaker (Tweeter) FK26AP32-51LGasket Set SME3674 NSP Gasket SEC1978 NSP Polyethylene Bag S2 SHL1309 NSP Accessories Set SME3676 NSP Polyethylene Bag S1 KHL1079 NSP Screws Set SME3677 Screw BMZ50P100FTB NSP Polyethylene Bag S0 KHL1081 Speaker Wire Set SME3678 NSP Polyethylene Bag S0 KHL1081 NSP Speaker Wire SDS1189 NSP Instruction Manual Set SME3680 NSP Polyethylene Bag S2 SHL1309 Owners Manual SRD1296 (English, Spanish, French) NSP Bracket ASSY Set SME3681 Case SHA2513 Case SHA2514 Protection Sheet S1 SHC1831 Protection Sheet SHC1837 Protection Sheet SHC1838 Bracket (L-TOP) ASSY SXG1090 NSP Label (L-TOP) SAK1016 Gasket SEC1979 Gasket SEC1980 NSP Tape SEH1078 NSP Bracket (L-TOP) SNA1451 NSP Cover L-T SNN1058 Bracket (L-BOT) ASSY SXG1091 NSP Label (L-BOTTOM) SAK1017 Gasket SEC1979 Gasket SEC1981 NSP Tape SEH1078 NSP Bracket (L-BOTTOM) SNA1452 NSP Cover L-B SNN1059 Bracket (R-TOP) ASSY SXG1092 NSP Label (R-TOP) SAK1018 Gasket SEC1979 Gasket SEC1980 NSP Tape SEH1078 NSP Bracket (R-TOP) SNA1453 NSP Cover R-T SNN1060 Bracket (R-BOT) ASSY SXG1093 NSP Label (R-BOTTOM) SAK1019 Gasket SEC1979 Gasket SEC1981 NSP Tape SEH1078 NSP Bracket (R-BOTTOM) SNA1454 NSP Cover R-B SNN1061 For Packing Mark No. Description Part No. Mark No. Description Part No.
