Pioneer pdps 35 service manual
This is the 8 pages manual for pioneer pdps 35 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdps 35 service manual (Ocr-read)

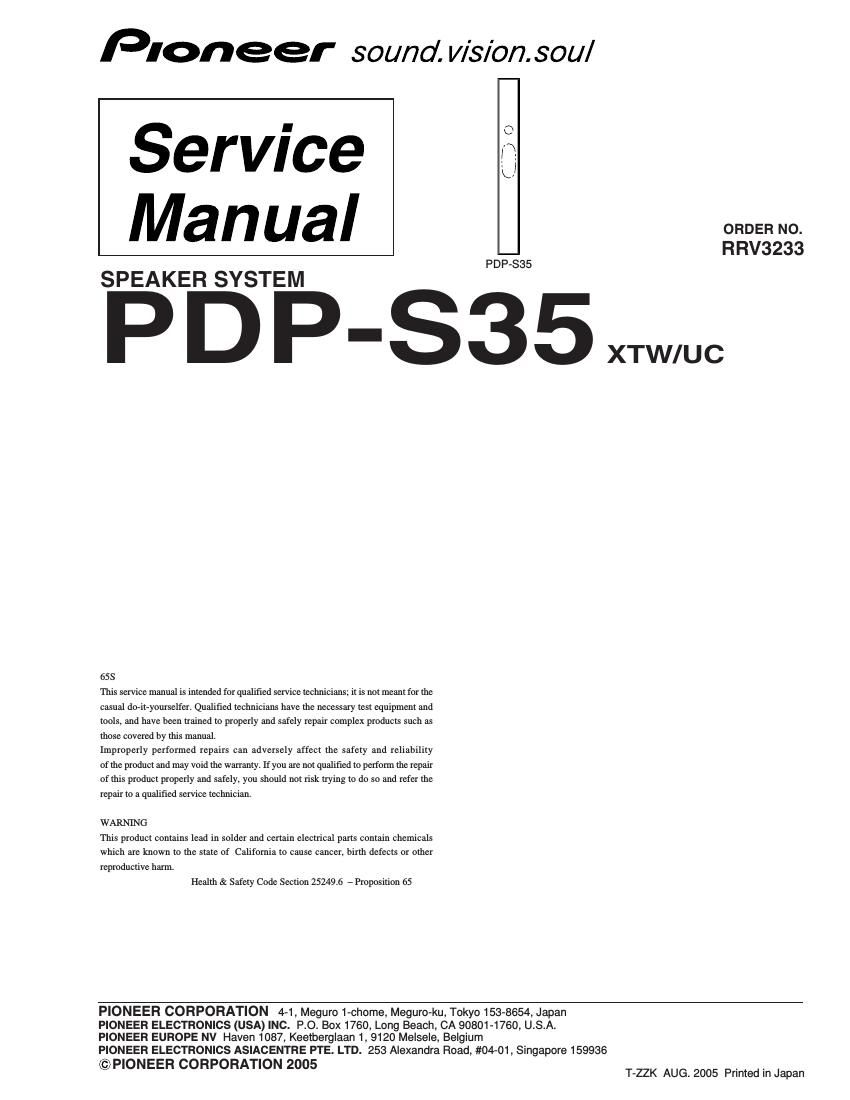

Page 1
2 1 23 4 1234 C D F A B E PDP-S35 FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the baffle using double-sided self-adhe- sive tape. To avoid damaging the cabinet, work with the speaker on top of a blanket or similar, face the grille upward. There is slot in the lower part of the speaker. Insert a screw- driver(-) into slot and push up detach the lower part. Taking care not to damage the grille and baffle, lift the grille a little bit at a time with hand. When reattaching the grille, use double-sided self-adhesive tape in the locations shown in the diagram and press the grille assy into place. The grille is fixed using boss and double-sided self-adhesive tape(The tape is in the locations indicated in the diagram be- low). Do not use a dryer to heat the self-adhesive tape when removing the grille. The woofer is attached to the baffle by 4 internal screws. To detach it, first remove the baffle from cabinet. Then unfasten those screws. When attaching it, face its plus terminal down- ward. The tweeter is attached to the baffle by 2 internal screws. To detach it, first remove the baffle from cabinet. Then unfasten those screws. When attaching it, face its plus terminal right- ward. LOCATIONS TO FIX DOUBLE-SIDED SELF-ADHESIVE TAPE Tape (SEH1080 x 2) Grille ASSY (Back Side) Slot GRILLE Screwdriver(-) Grille Baffle
Page 2
3 1 234 1 23 4 C D F A B E PDP-S35 Gasket Set SME3685 NSP Gasket SEC1994 Polyethylene Bag S2 SHL1437 NSP Instruction Manual Set SME3688 Polyethylene Bag S2 SHL1437 Owners Manual SRD1295 (English, Spanish, French) NSP Bracket Assy Set SME3689 Case SHA2516 Case SHA2517 Protection Sheet S1 SHC1832 Spacer SHB1173 NSP Accessory Set SME3684 Speaker wire SDS1190 Polyethylene Bag S1 SHL1439 NSP Screws Set SME3687 Screw BMZ50P100FTB Polyethylene Bag S0 SHL1438 Bracket (L-TOP) Assy SXG1098 NSP Label (L-TOP) SAK1020 Gasket SEC1995 Gasket SEC2003 NSP Tape SEH1079 NSP Bracket (L-TOP) SNA1455 NSP Cover L-T SNN1062 Bracket (L-BTM) Assy SXG1099 NSP Label (L-BOTTOM) SAK1021 Gasket SEC1996 Gasket SEC2003 NSP Tape SEH1079 NSP Bracket (L-BOTTOM) SNA1456 NSP Cover L-B SNN1063 Spacer SEP1353 Bracket (R-TOP) Assy SXG1100 NSP Label (R-TOP) SAK1022 Gasket SEC1995 Gasket SEC2003 NSP Tape SEH1079 NSP Bracket (R-TOP) SNA1457 NSP Cover R-T SNN1064 Bracket (R-BTM) Assy SXG1101 NSP Label (R-BOTTOM) SAK1023 Gasket SEC1996 Gasket SEC2003 NSP Tape SEH1079 NSP Bracket (R-BOTTOM) SNA1458 NSP Cover R-B SNN1065 Spacer SEP1353 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP Cabinet Assy SXG1102 NSP Insert Nut M5 SBN1062 NSP Cabinet SNK2907 NSP Baffle R SNK2920 NSP Baffle L SNK2919 Grille Assy SMG1855 NSP Grille Cloth SAS1599 NSP Felt SED1128 NSP Felt SED1129 NSP Grille Frame SMH1112 NSP Cosmetic Frame SNK2908 Network Assy SWN1756 NSP Model Label (L) SAN3730 NSP Model Label (R) SAN3731 NSP Gasket SEC1984 NSP Gasket SEC1985 NSP Gasket SEC1986 Gasket SEC1987 Gasket SEC1988 NSP Gasket SEC1989 Gasket SEC1990 NSP Gasket SEC1997 NSP Gasket SEC1998 Gasket SEC1999 NSP Gasket SEC2000 NSP Gasket SEC2001 NSP Gasket SEC2002 NSP Gasket SEC2005 NSP Gasket SEC2010 NSP Felt SED1126 NSP Felt SED1127 NSP Felt SED1130 Tape SEH1080 Tape SEH1081 Input Terminal SKX1098 NSP MDF Bar SLX1163 NSP Port Tube Ring 26 SMR1393 NSP Paper Tube 26 SMR1397 NSP Acoustic Absorbent SMT1303 NSP Acoustic Absorbent SMT1304 NSP Acoustic Absorbent SMT1305 NSP Acoustic Absorbent SMT1306 NSP Acoustic Absorbent SMT1308 NSP Label Serial (Model Label L,R) SRW1111 Speaker (Woofer) H132DC65-51F Speaker (Tweeter) FK26AP32-51L For Packing Mark No. Description Part No. Mark No. Description Part No.
