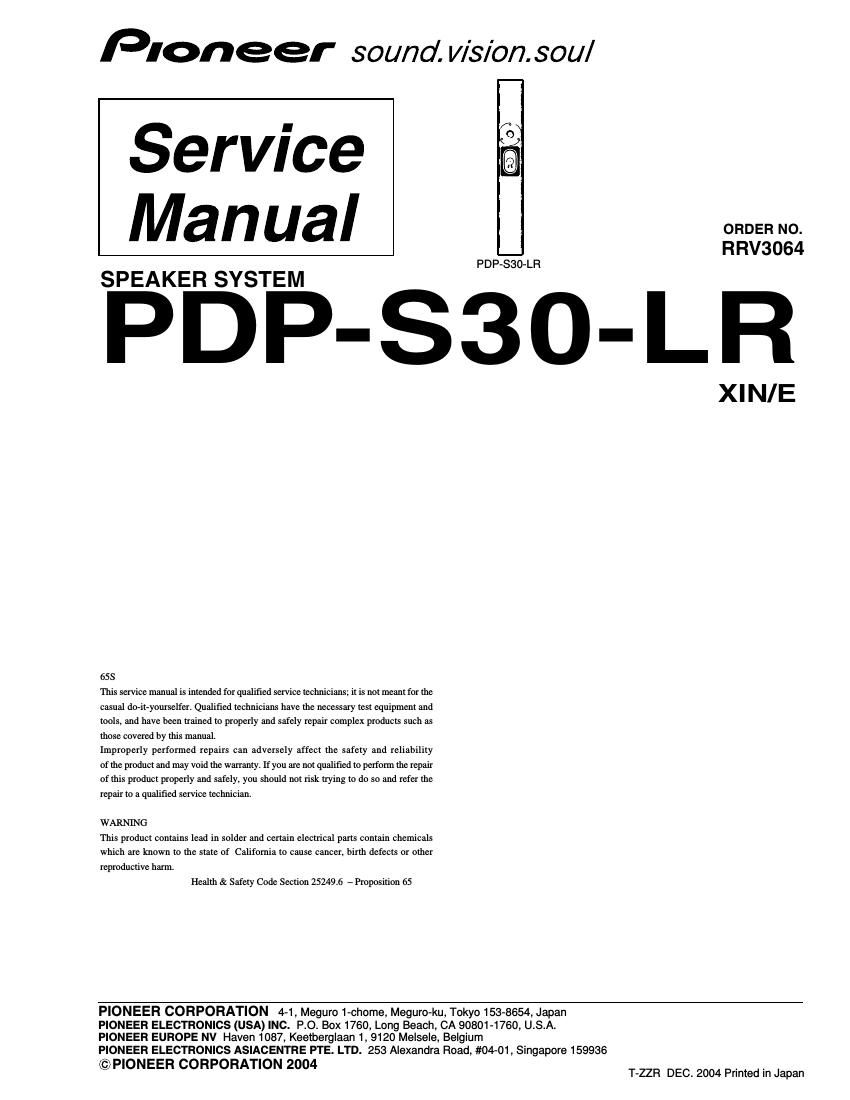

Pioneer pdps 30 lr service manual
This is the 8 pages manual for pioneer pdps 30 lr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdps 30 lr service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E PDP-S30-LR FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the baffle using double-sided self-adhe- sive tape. To avoid damaging the grille, work with the speaker on top of a blanket or similar, face up. There are two slots in the lower part of the speaker. Insert a screwdriver(-) into each slot and push down detach the lower part. Turn the speaker over and insert a screwdriver(-) between the grille and the baffle. Taking care not to damage the baffle, push down on the screwdriver(-) to prize the baffle and grille apart. When reattaching the grille, use double-sided self-adhesive tape in the locations shown in the diagram and press the grille assy into place. The grille is fixed using boss and double-sided self-adhesive tape(The tape is in the locations indicated in the diagram be- low). Do not use a dryer to heat the self-adhesive tape when removing the grille. The woofer is attached to the baffle by external screws. To de- tach it, unfasten those screws. When attaching it, face its termi- nal downward. The tweeter is attached to the baffle by external screws. To de- tach it, unfasten those screws. Slot GRILLE Screwdriver(-) Grille BaffleDown LOCATIONS TO FIX DOUBLE-SIDED SELF-ADHESIVE TAPE Tape (SEH1056 x2)
Page 2
3 1 234 1 23 4 C D F A B E PDP-S30-LR For Packing Mark No. Description Part No. NSP Accessorys Set SME3516 Protection Sheet S1 SHC1815 Spacer SHD1060 Spacer SHD1061 Accessory Case SHF1086 Bracket A ASSY (R) SNX1167 NSP Polyethylene Bag S1 KHL1079 NSP Label (R) SAK1014 Gasket SEC1861 Gasket SEC1862 Spacer SEP1315 NSP Bracket A SNA1433 NSP Clear tape 12mm ZTA-400-12 Bracket A ASSY (L) SNX1168 NSP Polyethylene Bag S1 KHL1079 NSP Label (L) SAK1015 NSP Gasket SEC1861 NSP Gasket SEC1862 Spacer SEP1315 NSP Bracket A SNA1433 NSP Clear tape 12mm ZTA-400-12 Bracket B ASSY (R) SNX1169 NSP Polyethylene Bag S1 KHL1079 NSP Label (R) SAK1014 Gasket SEC1861 Gasket SEC1862 Spacer SEP1315 NSP Bracket B SNA1434 NSP Clear tape 12mm ZTA-400-12 Bracket B ASSY (L) SNX1170 NSP Polyethylene Bag S1 KHL1079 NSP Label (L) SAK1015 Gasket SEC1861 Gasket SEC1862 Spacer SEP1315 NSP Bracket B SNA1434 NSP Clear tape 12mm ZTA-400-12 NSP Danpron tape ZTA-Danpron-50cl NSP Accessory Set SME3525 NSP Polyethylene Bag S1 KHL1079 NSP Screws Set SME3510 Screw BMZ50P100FZK NSP Polyethylene Bag S0 KHL1081 NSP Max no.10-1m ZNX-MAX10-1M Speaker Wire Set SME3526 NSP Polyethylene Bag S0 KHL1081 Speaker Wire SDS1166 NSP Max no.10-1m ZNX-MAX10-1M NSP Max no.10-1m ZNX-MAX10-1M NSP Accessory Set SME3614 Accessory Case SHF1092 Bracket A ASSY (R) SNX1171 NSP Polyethylene Bag S1 KHL1079 NSP Label (R) SAK1014 Gasket SEC1861 Gasket A SEC1905 NSP Bracket A SNA1445 NSP Clear tape 12mm ZTA-400-12 Mark No. Description Part No. NSP Baffle SNK2784 NSP Cabinet SNK2786 Grille ASSY SMG1817 NSP Grille Cloth SAS1571 NSP Grille Frame SMH1087 NSP Cosmetic Frame SNK2788 Network ASSY SWN1736 Input Terminal KKX1015 NSP Model Label (L) SAN3549 NSP Model Label (R) SAN3550 NSP Insert Nut M5 SBN1056 NSP Gasket (BF:WF-TW,Top,Bottom) SEB1250 NSP Gasket (Input-Side) SEB1255 NSP Gasket (WF:Input) SEB1256 NSP Gasket (TW:Input) SEB1271 NSP Gasket (CAB:Input) SEB1273 Gasket (Input Terminal Back) SEC1724 NSP Gasket (WF:Gasket) SEC1754 NSP Gasket (CAB:Long) SEC1858 NSP Gasket (CAB:Short) SEC1859 NSP Gasket (BF:Outside) SEC1863 NSP Gasket (CB:TW Side) SEC1878 NSP Felt (Duct:Inside) SED1112 NSP Felt (CAB:C TERM) SED1113 Tape (Grille ASSY) SEH1056 NSP Paper Tube 26 SMR1380 NSP Port Tube Ring 26 SMR1382 NSP Acoustic Absorbent (Roll (Small)) SMT1240 NSP Acoustic Absorbent (CAB:Roll) SMT1246 NSP Acoustic Absorbent (BF:Top,Bottom) SMT1248 NSP Acoustic Absorbent (CB:Bottom) SMT1249 NSP Acoustic Absorbent (CAB:Roll) SMV2183 NSP Acoustic Absorbent (BF:L Side) SMV2205 NSP Acoustic Absorbent (Roll (Small)) SMV2206 Spacer ASSY (BF) SMX1100 NSP Gasket SEC1877 NSP Tape SEH1063 NSP Spacer SNK2824 Spacer ASSY (CB) SMX1101 NSP Gasket SEC1879 NSP Tape SEH1064 NSP Spacer SNK2825 NSP Label Serial (Model Label L,R) SRW1083 Speaker A101EC65-54F Speaker FADD55-52F Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST
