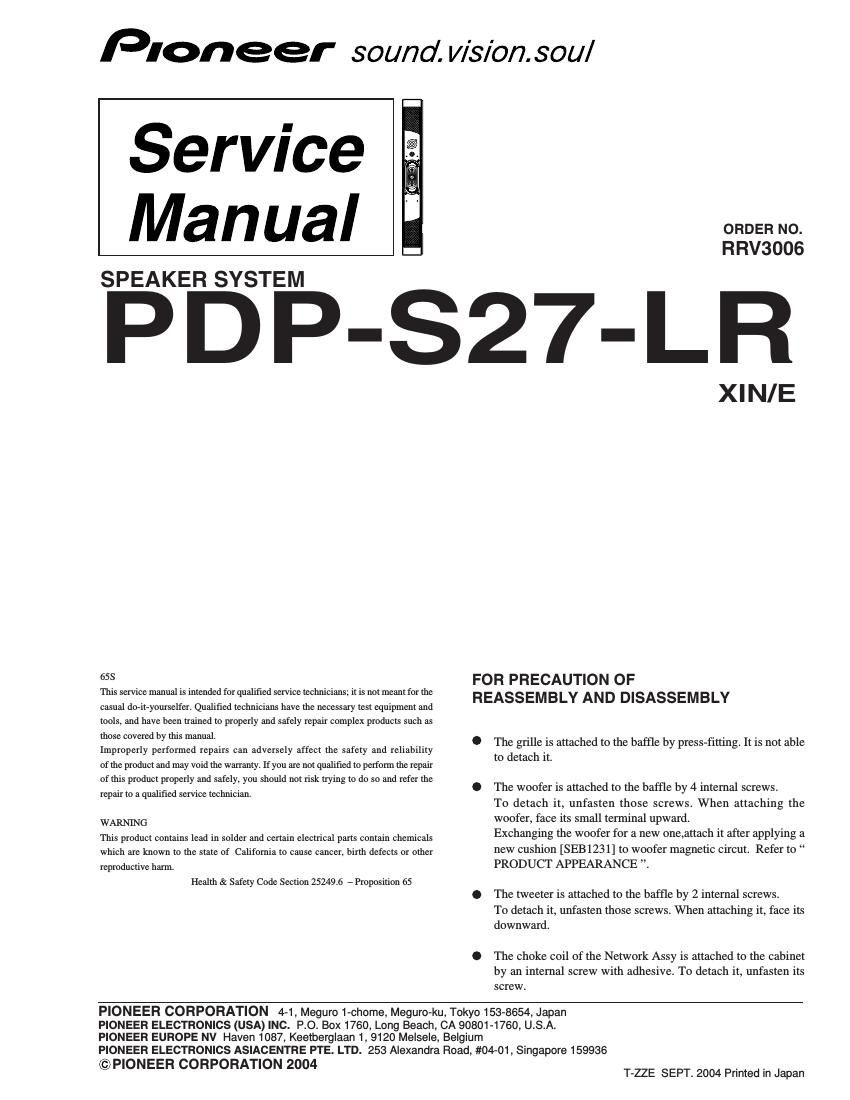

Pioneer pdps 27 lr service manual
This is the 4 pages manual for pioneer pdps 27 lr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdps 27 lr service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E PDP-S27-LR Metal Reinforce SNA1442 Cabinet SNK2829 NSP Baffle SNK2830 Grille ASSY SMG1828 NSP Grille Cloth SAS1579 NSP Grille Frame SMH1041 Network ASSY SWN1738 NSP Model Label(L) SAN3513 NSP Model Label(R) SAN3514 Flanged Anchor Bolt SBA1209 Serrated Flange Nut SBN1052 Packing (for Baffle,Terminal) SEB1228 NSP Packing (for Baffle,Cabinet) SEB1230 Cushion (for Woofer Magnet) SEB1231 NSP Packing (for Cabinet) SEB1233 Packing (for Cabinet) SEC1572 Packing (for Baffle) SEC1565 Input Terminal KKX1015 NSP Acoustic Absorbent SMV2097 Installation Board (R) SNK2582 Installation Board (L) SNK2583 NSP Label Serial SRW1083 Speaker (Woofer) A142CU60-51F Speaker (Tweeter) FK26AP13-55F Screw (for Tweeter) APZ30P080FMC Screw (for Woofer) BPZ40P100FMC Screw (for Input Terminal) BBZ35P140FMC Screw (for Baffle-Cabinet) BPZ40P160FZK Screw (for NW Choke Coil) BPZ40P350FMC Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Accessory Set SME3568 Speaker Wire SDS1172 NSP Screw Set SEA1563 Screw CMZ50P120FZK Bolt SBA1210 Hexagon Wrench SEX1021 NSP Polyethylene Bag S1 SHL1304 Bracket SET SEA1608 NSP Polyethylene Bag S1 KHL1079 Bracket SNA1412 Bracket (R) SET SEA1609 NSP Polyethylene Bag S1 KHL1079 Bracket (R) SNA1413 Bracket (L) SET SEA1610 NSP Polyethylene Bag S1 KHL1079 Bracket (L) SNA1414 NSP Polyethylene Bag S2 SHL1309 Installation Manual Set SME3566 NSP Polyethylene Bag S2 SHL1309 Operating Instructions SRD1276 (English,French,German,Italian, Dutch,Spanish) Protector SHA2324 Inner Partition SHD1049 Packing Case SHG2598 NSP Polyethylene Bag S2 SHL1307 NSP Label Serial SRW1087
Page 2
3 1 234 1 23 4 C D F A B E PDP-S27-LR SCHEMATIC DIAGRAM Network ASSY (SWN1738) Woofer I N Red Red BlackBlue White White Tweeter 1.8µF/63V 1.0mHL C
