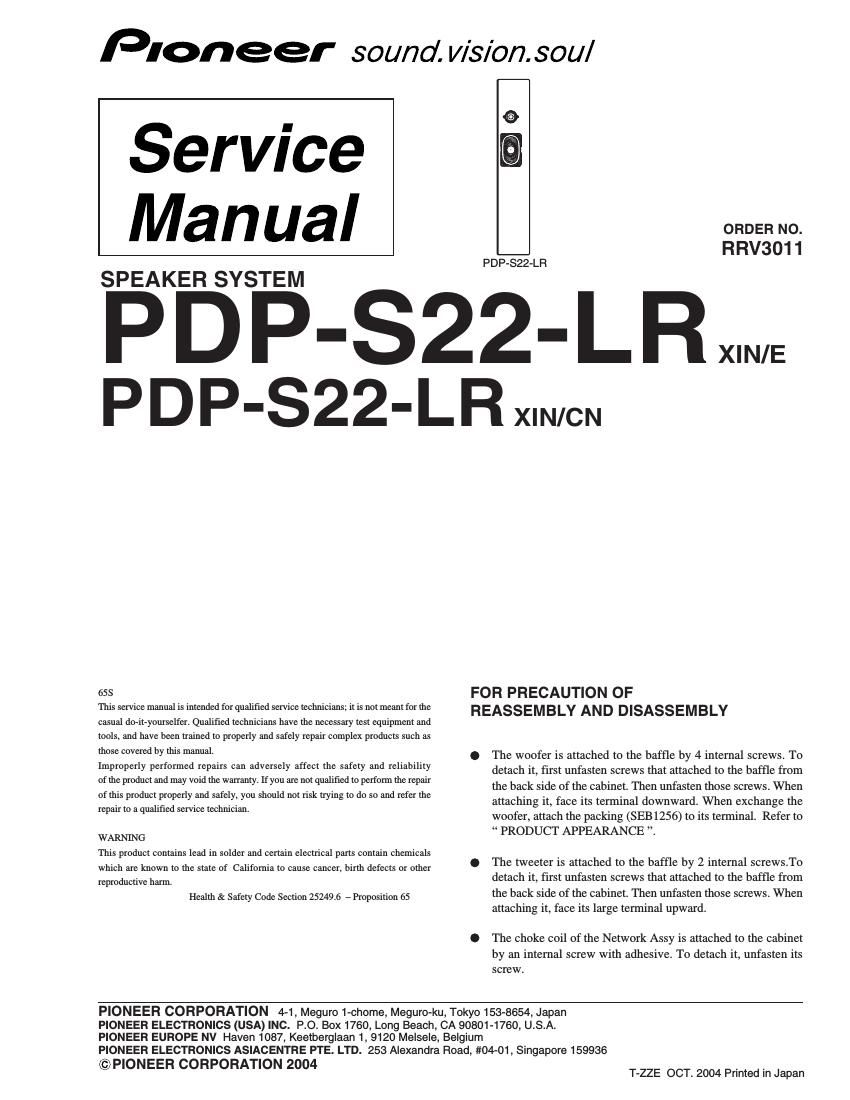

Pioneer pdps 22 lr service manual
This is the 5 pages manual for pioneer pdps 22 lr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdps 22 lr service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E PDP-S22-LR Mark No. Description Part No. Baffle (R) ASSY SMX1096 NSP Baffle (R) SNK2793 NSP Punching Sheet (R) SNN1031 Baffle (L) ASSY SMX1097 NSP Baffle (L) SNK2792 NSP Punching Sheet (L) SNN1030 NSP Cabinet (L) SNK2794 NSP Cabinet (R) SNK2795 Network ASSY SWN1737 Input Terminal KKX1015 NSP Model Label (R) (XIN/E Type) SAN3503 NSP Model Label (L) (XIN/E Type) SAN3504 NSP Model Label (R) (XIN/CN Type) SAN3547 NSP Model Label (L) (XIN/CN Type) SAN3548 NSP Insert Nut M5 SBN1056 NSP Packing (TW:Boss WF:Punchi) SEB1244 NSP Gasket (Baffle) SEB1250 NSP Gasket (Terminal) SEB1255 NSP Gasket (Woofer) SEB1256 Gasket (Woofer) SEB1262 NSP Gasket (CB:Terminal) SEB1273 NSP Gasket (BF:WF RIB) SEB1288 NSP Gasket (Duct) SEB1290 Gasket (Input Terminal Back) SEC1724 NSP Gasket (BF-CAB(Short)) SEC1845 NSP Gasket (BF-CAB(Long)) SEC1846 Gasket (wire) SEC1851 NSP Gasket (TW:Punchi) SEC1871 NSP Gasket (BF:TW) SEC1872 NSP Felt (CB:Treminal) SED1113 NSP Felt (Duct) SED1119 NSP Felt (Cabinet RIB H) SED1120 NSP Felt (Cabinet RIB V) SED1121 NSP Spacer SLX1160 NSP Paper Tube 26 SMR1386 NSP Acoustic Absorbent (CB:C,D) SMT1240 NSP Acoustic Absorbent (CB Roll) SMT1246 NSP Acoustic Absorbent (CB:C) SMT1251 NSP Acoustic Absorbent (CB:C) SMT1252 NSP Acoustic Absorbent (CB:U) SMT1253 NSP Acoustic Absorbent (CB Roll C) SMV2183 Spacer ASSY SMX1100 NSP Gasket SEC1877 NSP Tape SEH1063 NSP Spacer SNK2824 Spacer ASSY (CB) SMX1102 NSP Gasket SEC1879 NSP Tape SEH1064 NSP Spacer SNK2826 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Label Serial (Model Label L,R) SRW1083 Speaker (Woofer) A101EC65-54F Speaker (Tweeter) FK26AP13-52F Screw (Tweeter) BPZ30P080FZK Screw (Input) BPZ35P140FZK Screw (Woofer) BPZ40P080FZK Screw (BF-CAB) BPZ40P100FZK Screw (NW Choke Coil) BPZ40P300FZK For Packing NSP Accesory Set SME3506 NSP Rivets Set SEA1628 NSP Polyethylene Bag S0 KHL1081 Push Rivet SBM1005 Spacer SHB1146 Spacer SHB1147 Case SHB1148 Packing Case SHF1084 NSP Joint Plate (US) ASSY Set SME3511 Polyethylene Bag S2 SHL1291 Joint Plate (US) ASSY SNX1164 Gasket SEB1284 Gasket SEB1285 Gasket SEC1730 NSP Joint Plate (US) SNA1426 NSP Joint Plate Set SME3512 NSP Polyethylene Bag S2 SHL1309 Joint Plate SNA1418 NSP Accesory Set SME3507 Spacer SHB1149 Spacer SHD1058 Spacer SHD1059 Packing Case SHF1085 NSP Bracket (L) ASSY Set SME3513 NSP Polyethylene Bag S1 SHL1304 Bracket (L) ASSY SNX1165 Gasket SEC1848 Gasket SEC1849 NSP Bracket (L) SNA1424 NSP Bracket (R) ASSY Set SME3514 NSP Polyethtlene Bag S1 SHL1304 Bracket (R) ASSY SNX1166 Gasket SEC1848 Gasket SEC1849 NSP Bracket (R) SNA1425 NSP Accessory Set SME3505 NSP Polyethylene Bag S1 KHL1079 NSP Screws Set SME3510 Screw BMZ50P100FZK NSP Polyethylene Bag S0 KHL1081 Speaker Wire Set SME3523 NSP Polyethylene Bag S0 KHL1081 Speaker Wire SDS1164
Page 2
3 1 234 1 23 4 C D F A B E PDP-S22-LR Mark No. Description Part No. Foam Pad SHA2448 Foam Pad SHA2449 Foam Pad SHA2450 Packing Case (XIN/E Type) SHG2570 Packing Case (XIN/CN Type) SHG2613 NSP Packing Bag S2 SHL1407 NSP Label Serial SRW1087 (XIN/E Type) NSP Installation Manual Set SME3555 NSP Polyethylene Bag S2 SHL1309 Operating Instructions SRD1271 (English / French / German / Italian / Dutch / Spanish / Trad-Chinese) (XIN/CN Type) NSP Installation Manual Set SME3605 NSP Polyethylene Bag S2 SHL1309 Operating Instructions SRD1277 (Simp-Chinese) SCHEMATIC DIAGRAM Network ASSY (SWN1737) Woofer I N Red Red BlackBlue White White Tweeter 1.2µF/100V 1.0mHL C 0.3A P.SW P.SW P.SW has extreme positive resistance-temperature characteristics. (Less than 0.3W at the normal temperature). If an abnormal current flows to P.SW due to an excessive input or unusual signal, P.SW heats up and the resistance rapidly increases. With this function, the speakers are protected from excessive input or unusual signal. The resistance value increases even when using a soldering iron for repairing, so allow it to cool before using.
