Pioneer pdps 05 lr service manual
This is the 2 pages manual for pioneer pdps 05 lr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdps 05 lr service manual (Ocr-read)
Page 1

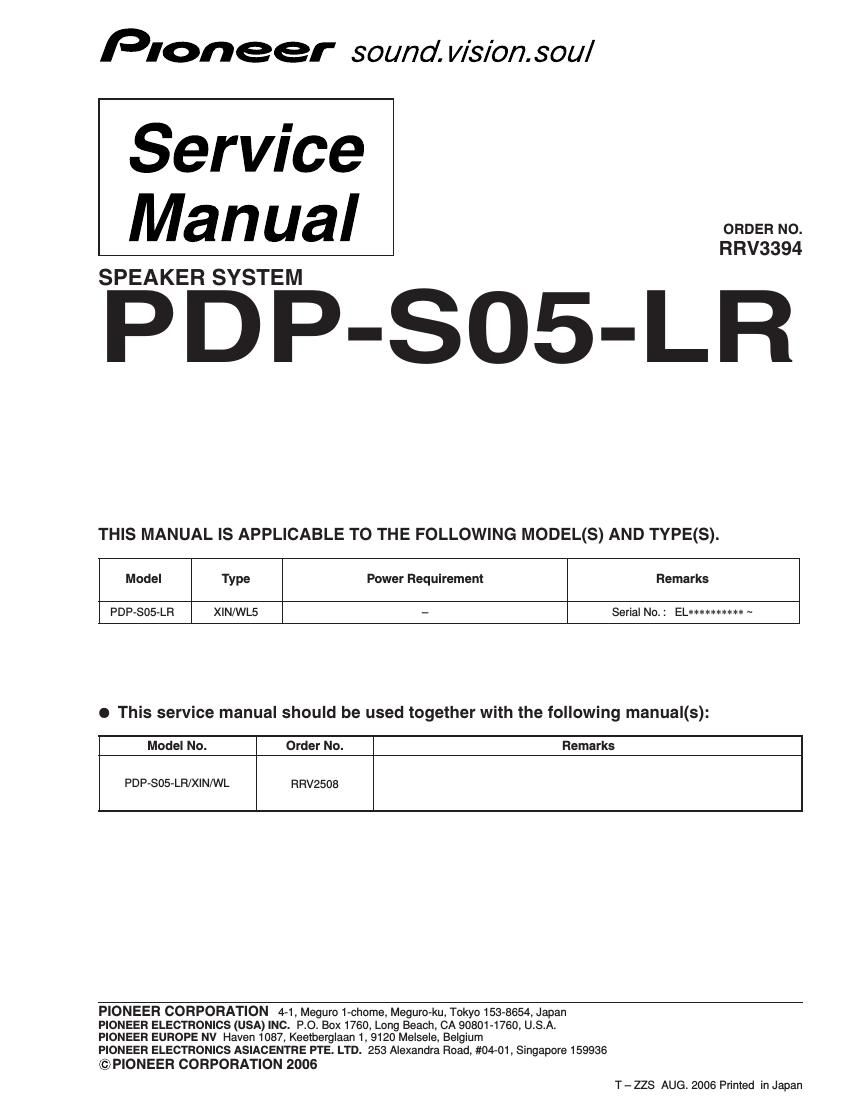

2 1 23 4 1234 C D F A B E PDP-S05-LR 1. CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST OF TABLE PDP-S05-LR/XIN/WL5 and PDP-S05-LR/XIN/WL are constructed the same except for the following: Ref.Part No. No.Mark Symbol and DescriptionPDP-S05-LR PDP-S05-LR Remarks /XIN/WL /XIN/WL5 NSP Cabinet assy SMX1093 SMX1103 Metal Reinforce SNA1404 SNA1442 Baffle Assy SXB1441 SXB1488 NSP Punching Net SNC1190 SNC1209 Input Terminal KKX1015 SKX1097 65 Label SRW1080 Not used Speaker (Woofer) A142CU61-51F A142CU60-51F Speaker (Tweeter) FK26AP02-69F FK26AP13-55F Screw (for Woofer, Terminal) BPZ40P100FTC Not used Screw (for Terminal) Not used BBZ35P140FTC Screw (for Woofer) Not used BPZ40P100FTC For Packing NSP Accsessory Set SEA1568 SEA1717∗1 NSP Accsessory Set SME3258 SME3711∗1 NSP Operating Instructions Set SME3294 SME3712 Operating InstructionsSRD1227 SRD1263 (Japanese/ English/ French/ German/ Italian/ Spanish/ Dutch) Packing Case SHG2368 SHG2699 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: NOTES : ∗1: Although the part numbers are different in PDP-S05-LR/XIN/WL5 and PDP-S05-LR/XIN/WL, they have the same service parts.
