Pioneer pdpr 03 u service manual

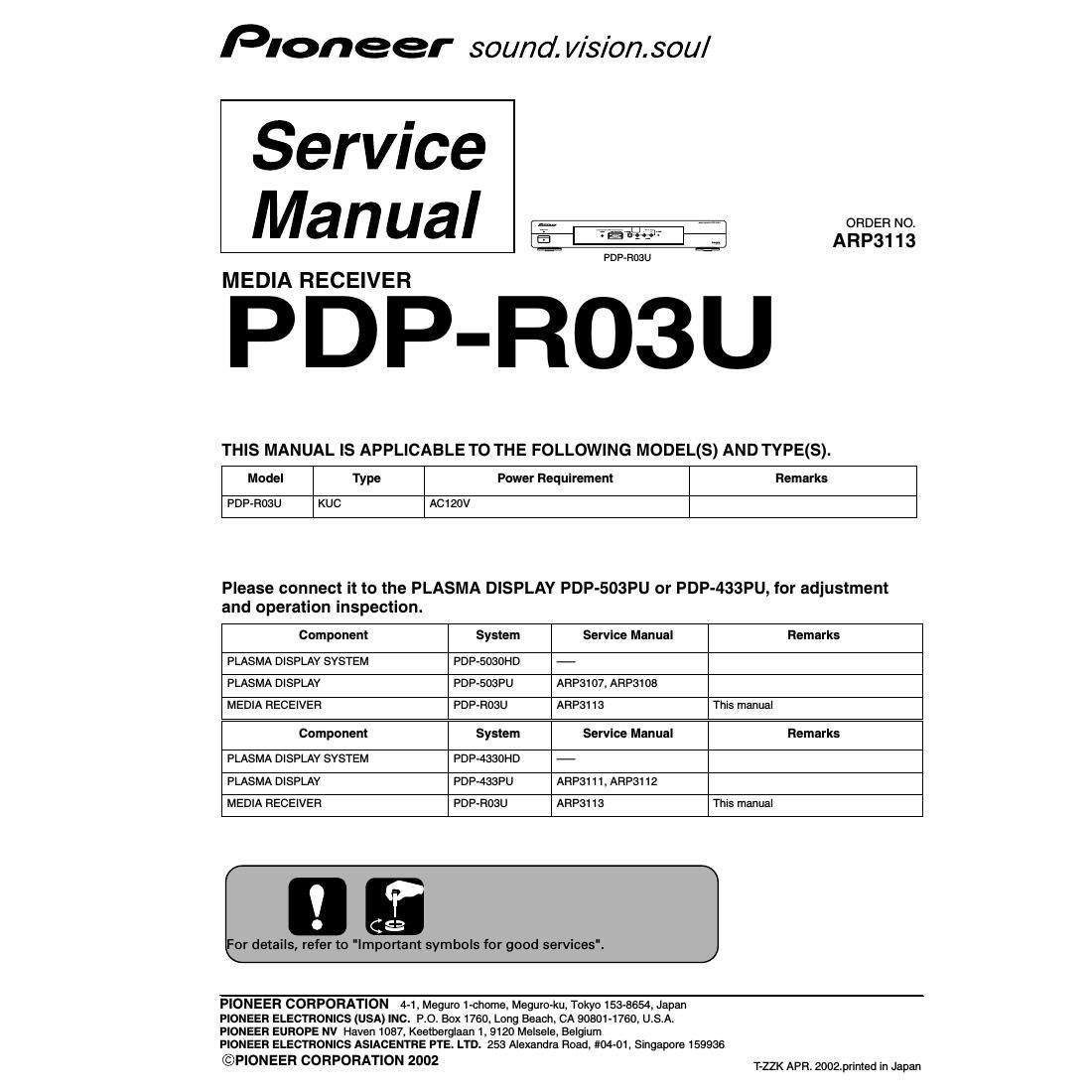

Page 1

Pioneer sound. vision. sou/

Service
Manual

MEDIA RECEIVER

PDP-RO3U

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model Type Power Requirement Remarks

ORDER NO.

ARP3113

PDP~R03U

PDP-R03U KUC AC120V

Please connect it to the PLASMA DISPLAY PDP-503PU or PDP-433PU, for adjustment
and operation inspection.

Component System Service Manual Remarks
PLASMA DISPLAY SYSTEM PDP-5030HD -
PLASMA DISPLAY PDP-503PU ARP3107, ARP3108
MEDIA RECEIVER PDP-ROSU ARP3113 This manual
Component System Service Manual Remarks
PLASMA DISPLAY SYSTEM PDP-433OHD -
PLASMA DISPLAY PDP-433PU ARP3111, ARP3112
MEDIA RECEIVER PDP-R03U ARP3113 This manual

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

OPIONEER CORPORATION 2002 T-ZZK APR. 2002_primed in Japan

Page 2

1 - 2 - 3 - 4

SAFTY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols EH» (fast operating fuse) and/or a» (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.

REMARQUE

(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible EH (fusible de type rapide) et/ou a (fusible de type lent) sur CCI indiquent que
les pieces de remplacement doivent avoir la meme designation.

- (FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS ANY MEASUREMENTS NOT WITHIN THE
The following check should be performed for the LIMITS OUTL|NED ABOVE ARE lND'CATIVE

continued protection of the customer and service OF A POTENTIAL SHOCK HAZARD AND

technician.

LEAKAGE CURRENT CHECK MUST BE CORRECTED BEFORE RETURN-
Measure leakage current to a known earth ground ING THE APPLIANCE To THE CUSTOMER-

(water pipe, conduit, etc.) by connecting a leakage

current tester such as Simpson Model 229-2 or 2_ PRODUCT SAFETY NOTICE

equivalent between the earth ground and all exposed

_ , , Many electrical and mechanical parts in the appliance
metal parts of the appliance (Input/output terminals,

have special safety related characteristics. These are

screwheads, metal overlays, COMTOI shaft, BIC-I- PIUQ often not evident from visual inspection nor the
the AC line 00rd 0f the appliance directly into a 120V protection afforded by them necessarily can be obtained
AC 60 HZ outlet and turn the AC power switch on. Any by using replacement components rated for voltage,
current measured must not exceed 0.5 mA. wattage, etc. Replacement parts which have these

special safety characteristics are identified in this
Service Manual.
Electrical components having such features are

:Sagérgbfmu'd identified by marking with a A on the schematics and
Leakage 05 m on the parts list in this Service Manual.
current . .
Device «95.9, The use of a substitute replacement component which

under
test

does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER

Service Manual. A subscription to, or additional copies
{Liginfic'szgaml of, PIONEER Service Manual may be obtained at a
plugasrequired) 7 ground nominal charge from PIONEER.

AC Leakage Test

Test all
exposed metal
surfaces

8

Also test with

2 PDP-ROSU

1 I 2 - 3 I 4
