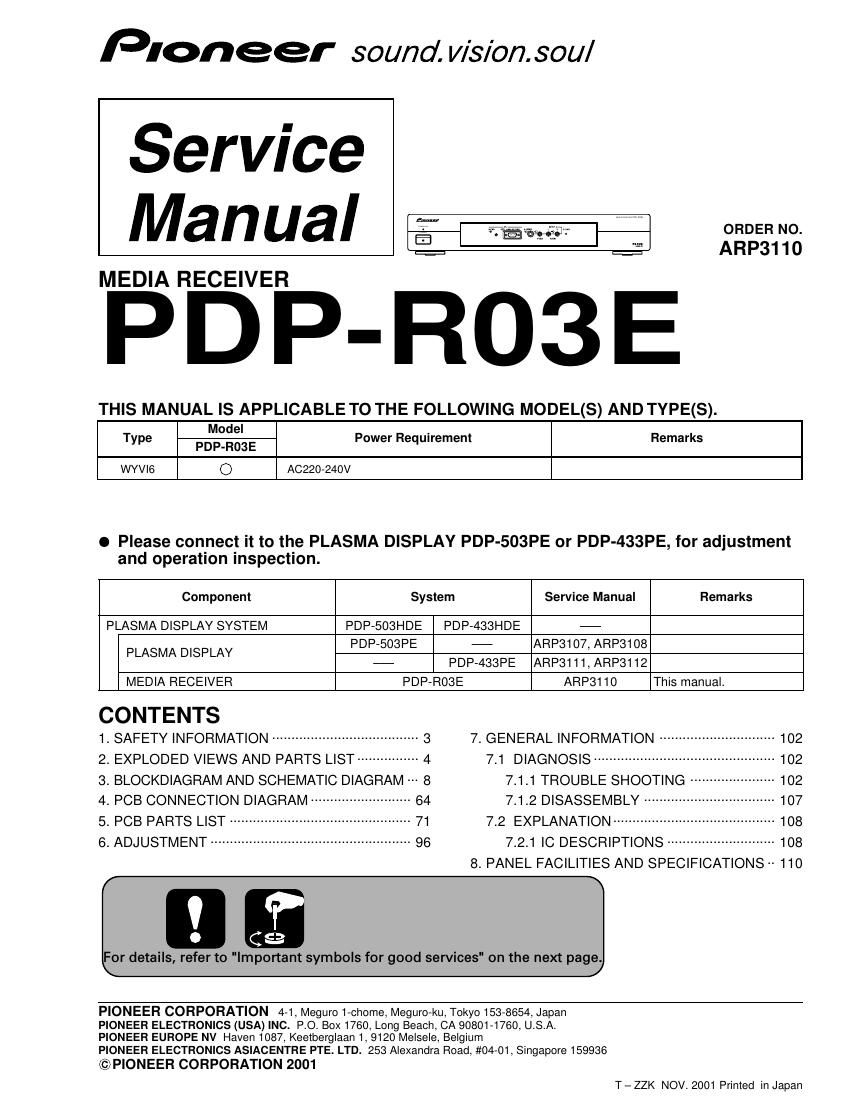

Page 1

Pioneer sound. vision. soul

Service
Manual

MEDIA RECEIVER

PDP-RO3E

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER No.
ARP3110

Model .
Type PDP-R03E Power Reqmrement Remarks
WYVI6 O A0220-240v

0 Please connect it to the PLASMA DISPLAY PDP-503PE or PDP-433PE, for adjustment
and operation inspection.

Component System Service Manual Remarks
PLASMA DISPLAY SYSTEM PDP-503HDE PDP-433HDE -
PLASMA DISPLAY PDP-503PE - ARP3107, ARP3108
- PDP-433PE ARP3111, ARP3112

MEDIA RECEIVER PDP-ROBE ARP311O This manual.
CONTENTS
1. SAFETY INFORMATION --------------------------- -- 3 7. GENERAL INFORMATION
2. EXPLODED VIEWS AND PARTS LIST ----- -- 4 7.1 DIAGNOSIS ---------------------
3. BLOCKDIAGRAM AND SCHEMATIC DIAGRAM 8 7.1.1 TROUBLE SHOOTING
4. PCB CONNECTION DIAGRAM -- 64 7.1.2 DISASSEMBLY -----
5_ PCB PARTS LlST .............................. 71 72 EXPLANAT'ON .............
6_ ADJUSTMENT .................................................... 96 7..21 IC DESCRIPT'ONS ............................ 108

8. PANEL FACILITIES AND SPECIFICATIONS -- 110

For details, refer to "Important symbols for good services" on the next page.

PIONEER CORPORATION 4-1, Meguro 1-ohome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 MeIseIe, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2001
T - ZZK NOV. 2001 Printed in Japan

Page 2

PDP-R03E

[ Important symbols for good services ]

In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any ofthe symbols, be sure to fulfill them:

1. Product safety

You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

(2. Adjustments

To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.

lo

3. Cleaning

t For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
% proper cleaning should be performed to restore their performances.

f4- Shipping mode and shipping screws \

To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or

the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
.-

5. Lubricants, glues, and replacement parts

Appropriately applying grease or glue can maintain the product performances, But improper lubrication or applying
glue may lead to failures or troubles in the product, By following the instructions in this manual, be sure to apply the

prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
