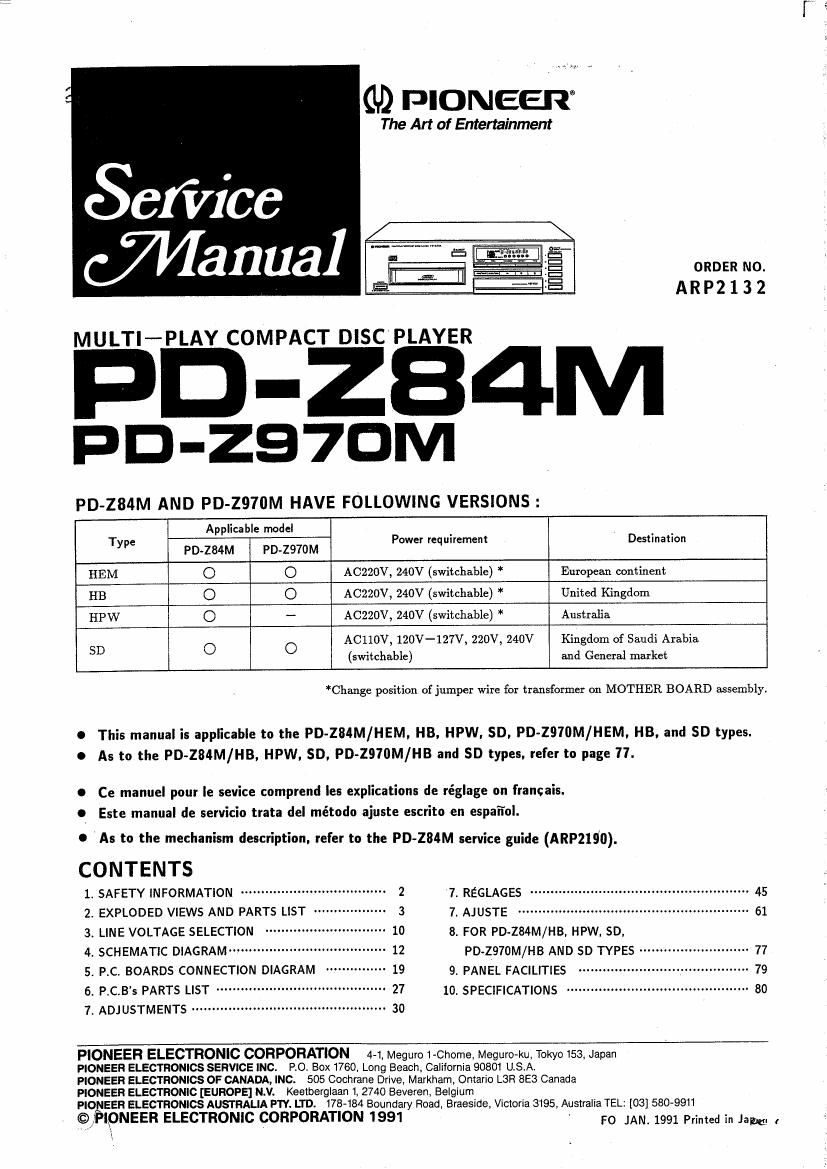

(U) PIONEER

The Art of Entertainment

Sefiice

ORDER NO.
ARP2 1 3 2

MULTl-PLAY COMPACT DISC PLAYER

PD-ZB4M

PD-ZS7DM

PD-ZMM AND PD-2970M HAVE FOLLOWING VERSIONS :

Applicable model .
Type ID-284M ID-2970M Power requirement Destination
HEM O O ACZ20V, 240V (switchable) * European continent
HE C O ACZZOV, 240V (switchable) * United Kingdom
HPW O '- ACZ2OV, 240V (switchable) * Australia
SD 0 O ACIAIOV, 120V-127V, 220V, 240V Kingdom of Saudi Arabia
(sthchable) and General market

*Change position of jumper wire for transformer on MOTHER BOARD assembly.

0 This manual is applicable to the PD-ZIMM/HEM, H8. HPW, SD, PD-2970M/HEM. HB, and SD types.
O As to the PD-ZS4M/HB, HPW, SD, PD-ZWIIM/HB and SD types. refer to page 77.

0 Ce manuel pour Ie sevice comprend Ies explications de réglage on francais.
O Este manual de servicio trata del método ajuste escritn en espafiol.

0 As to the mechanism description, refer to the PD-ZBAM service guide (ARPZIUO).

CONTENTS
1

. SAFETY INFORMATION 2 7. REGLAGES "

2. EXPLODED VIEWS AND PARTS LIST 7, AJUSTE ...................... 51
3. LINE VOLTAGE SELECTION 8. FOR PD-284M/HB. HPW. SD,

4. SCHEMATIC DIAGRAM'm ------ PD.ZQ70M/HB AND SD TYPES ........................... 77
5. P.C. BOARDS CONNECTION DIAGRAM 9. PANEL FACILITIES ...................... 79
6. P.C.B's PARTS LIST ' 27 10 SPECIFICATIONS

7 ADJUSTMENTS .............. . 3o

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1~Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. P.C. Box 1760. Long Beach, California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive. Markham, Ontario L3H 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keeiberglaan I, 2740 Beveren. Belgium

PIONEER ELECTRONICS AUSTRALIA PW. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [03} 5809911

QHONEER ELECTRONIC CORPORATION 1991 . F0 JAN, 1991 PM... 3,. Jam ,

Page 2

.I- 284M, pn- 2970M

1 . SAFETY INFORMATION

-- (FOR EUROPEAN MODEL ONLY)

- VAROI
AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA

NAKYMATTOMALLE LASERSATEILVLLE.
ALA KATSO SATEESEEN.

LASER

Kuva 1
Lasersateiiyn
varoirusmerkki

-- ADVERSEL: -----'-"
USYNLIG LASERSTRALING VED ABNING
NAR SIKKERHEDSAFERVDERE ER UDE AF
FUNKTION UNDGA UDSAETTELSE FOR
STRALING.

--VARNINGI-------
OSYNLIG LASERSTRALNING NAR DENNA
DEL An OPPNAD OCH SPARREN
AR URKOPPLAD. BETRAKTA EJ STRALEN.

- WARNINGI
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
I INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.

LASER
Picture 1

Warning sign for
laser radiation

IMPORTANT

THIS PIONEER APPARATUS CONTAINS
LASER OF HIGHER CLASS THAN I.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BV A SPECIALLY
INSTRUCTED PERSON.

- LASER DIODE CHARACTERISTICS -
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780-785 nm

LABEL CHECK (MULTI MAGAZINE type)

HB and HBXJ types

CAUTION
INVISIBLE LASER
RADIATION WHEN
AVOID EXPOSURE
TO BEAM

VIM
msmmwmmw
minimum,
wmmm

VIRSIDITI

mmmum

WW
mmmmmmmmxrfl
ml

LASS 1

C
LASER PRODUCT

VRWIII?!

HEM. HB, HEMXJ and HBXJ types

HEM and HEMXJ types

HEM type

vuzo!

Avatcaeesa )u sunjalukitus ohttetta-

essa out alttitnn nikynectéwille

Leserssteilyln. All kacso sateeseen.
vmmci

osymg Ila-rstrrnninq nu sauna dnl
m- eppnaa och epxrzen Ir uekopplad.
Betrektn a] sex-non. Pmm

OPEN,

PRWIOIB

Additional Laser Caution
1. Laser Interlock Mechanism
The ON/ OFF (ON : low level, OFF: high level) status of the
LES]. ($601) and LPSZ ($602) switches for detecting the
loading state is detected by the system microprocessor. and the
design prevents laser diode oscillation when both switches LP51
and LPSZ are not ON (low Ievel)(clamped state).
Thus, interlock will no longer function ifswitches LPSl (5601)
and LPSZ(SSDZ) are deliberately shorted.
Also, in the test mode. the interlock mechanism does not
operate too.
Laser diode oscillation will continue if pins 2 and 3 of
CXA14715 (IC101) are connected to ground or pin 20 is
connected to high level (ON) or the terminals of (2101 are
shorted to each other (fault condition).

. When the cover is opened with the servo mechanism block
removed to be turned over. close viewing of the objective lens
with the naked eye will cause exposure to a Class 1 or higher
laser beam.

Refer to page 31.
