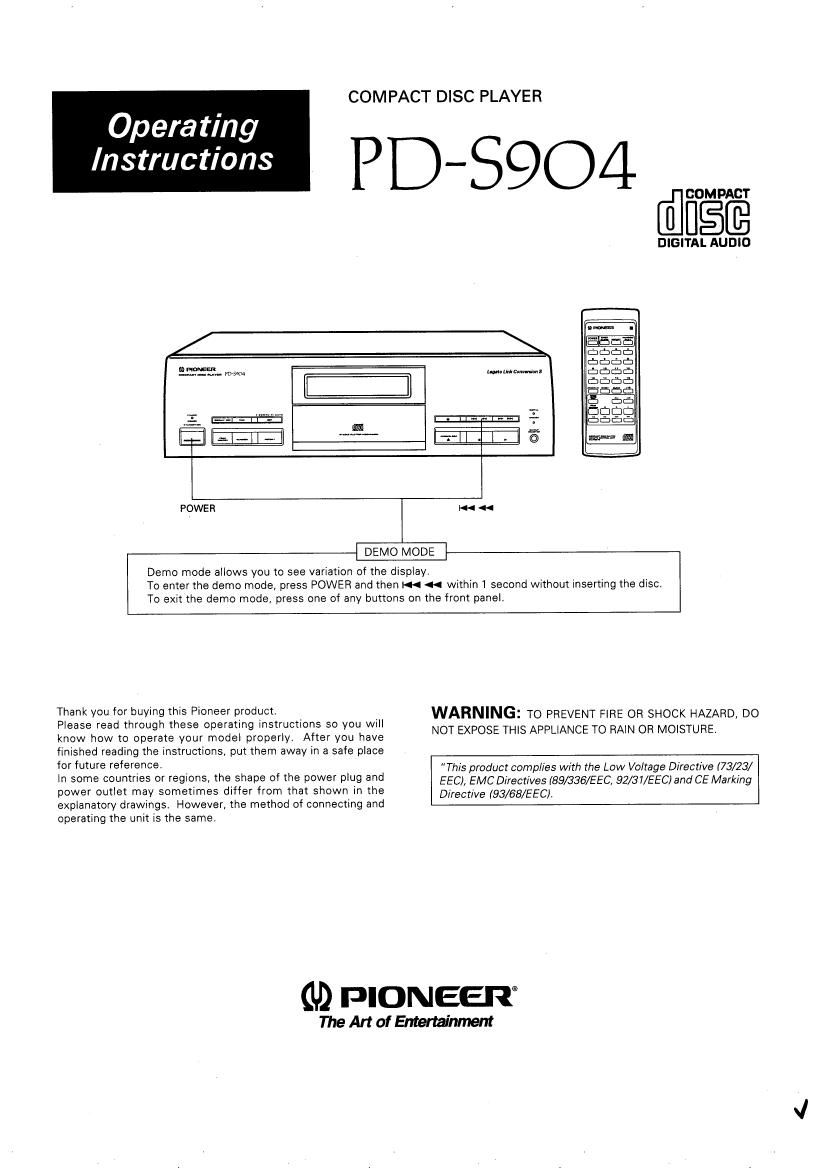

Page 1

COM PACT DISC PLAYER

Opera ting

Instructions 3-8904

COMPACT

DIGITAL AUDIO

POWER K4 «

DEMO MODE

Demo mode allows you to see variation of the display.
To enter the demo mode, press POWER and then H4 « within 1 second without inserting the disc.
To exit the demo mode, press one of any buttons on the front panel.

Thank YOU f°r buving this Pimee PmdUCL WARNING: TO PREVENT FIRE OR SHOCK HAZARD, D0
Please read through these operating instructions so you will

know how to operate your model properlyl After you have NOT EXPOSE TH|S APPLIANCE TO RAIN OR MOISTURE
finished reading the instructions, put them away in a safe place
for future reference.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings However, the method of connecting and
operating the unit is the same

This product complies with the Low Voltage Directive (73/23/
EEC), EMC Directives (89/336/EEC, 92/3 i/EEC) and CE Marking
Directive (93/68/EEC).

GD PIONEEIT

TheArtofEntertainment

Page 2

IMPORTANT

The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated dangerous voltage' within the products
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTlON:

T0 PREVENTTI'E RISK OF ELECTRK: SHOCK. DO NOT
REMOVE COVER (0R BACK]. N0 USER-SERVICE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE RESONIIE.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

IMPORTANT

FOR USE IN THE UNITED

KINGDOM
The win: in this mail: land are coloured in
am with the following code:

Blue ' wt

Brown . o
it the plug provided is unsuitable Ior your socket
outlets, the plug must be cut oil and a suitable plug
fitted.

The cut-oft plug should be disposed oi and must not be
inserted into any 13 amp socket as this can result in electric
shock, The plug or adaptor or the distribution panel should
be provided with 5 amp luse. As the colours oi the wires in
the mains lead oi this appliance may not correspond with
coloured markings identifying the terminals in your plug,
proceed as follows :

The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected

to the terminal which is marked with the letter L or coloured
red.

Do not connect either wire to the earth terminal ol 3
three pin plug.

NOTE

After replacing or changing a fuse, the tuse cover in the
plug must be replaced with a fuse cover which corre~
sponos to the colour or the insert in the base of the plug
or the word that is embossed on the base oi the plug, and
the appliance must not be used without a fuse Dover If
lost replacement Iuse covers can be obtained trom:
your dealer

Only 5 A fuses approved by B,s.l. or A STA to as.
1362 should be used.

[FOR EUROPEAN AND U.K. MODELS]

CAUTION

This product contains a laser diode of higher class
than 1. To ensure continued safety, do not remove
any covers or attempt to gain access to the inside
of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your player.

Location: rear of the player

CLASS 1

LASER PRODUCT

VHW-328

THE POWER SWITCH IS SECONDARY CONNECTED AND
THEREFORE DOES NOT SEPARATE THE UNIT FROM MAINS
POWER IN STANDBY POSITION.

2
(PRBI 228>
En
