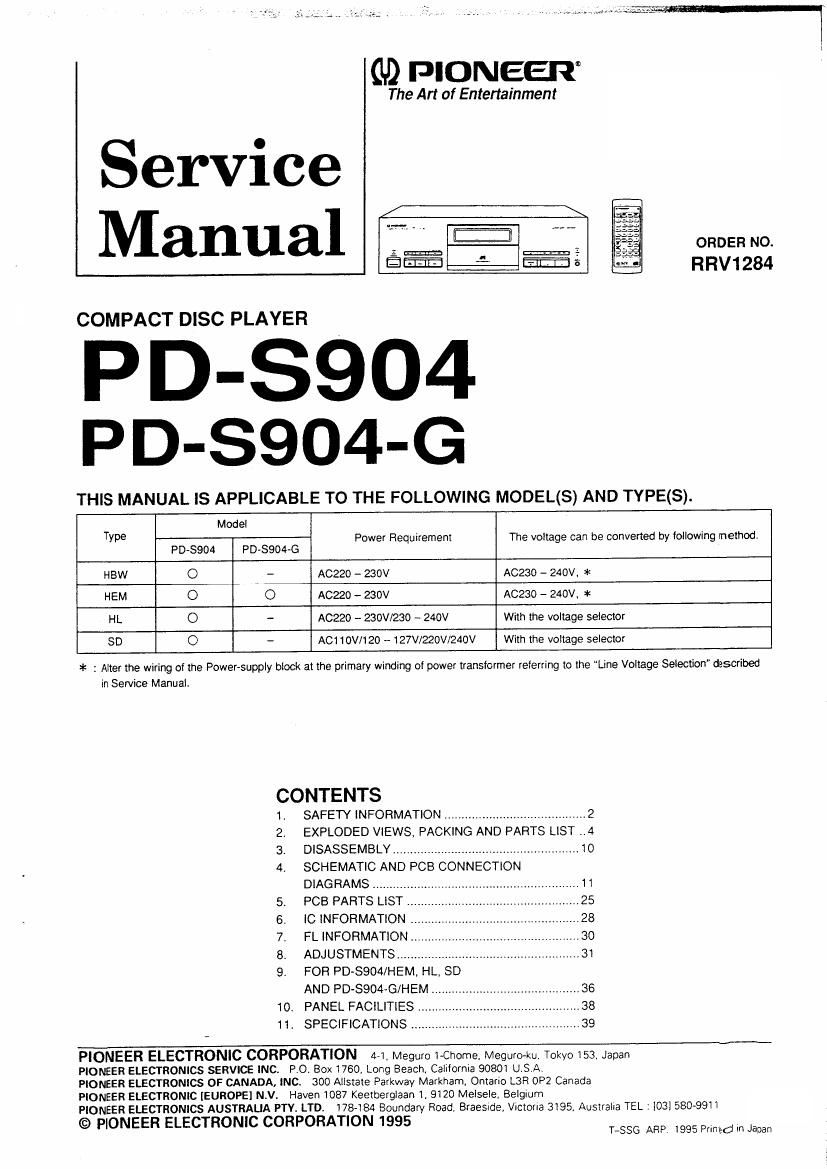

Page 1

(ID PIONEER

The Art of Entertainment

Service
Manual ; m

COMPACT DISC PLAYER

PD-3904
PD-SQO4-G

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.

3% RRV1284

I

Type Medel Power Requirement The voltage can be converted by following method.
ID-$904 PD-5904-G
HBW O - A0220 - 230v A0230 - 240v, *
HEM O O A0220 - 230V A0230 - 240V. *
HL 0 - A0220 - 230V/230 - 240V With the voltage selector
SD 0 - ACI1DV/120 -- 127V/220V/240V With the voIIage selector

* : Alter the wiring of the Power-supply block at the primary winding of power transformer referring to the Line Voltage Selection" described
in Service Manual,

CONTENTS
1. SAFETY INFORMATION ........................................ 2
2t EXPLODED VIEWS, PACKING AND PARTS LIST ..4
3. DISASSEMBLY ...................................................... 10
4. SCHEMATIC AND PCB CONNECTION

DIAGRAMS .......... 11
5. PCB PARTS LIST ....25
6. [0 INFORMATION ..... 28
7. FL INFORMATION ..... 3O
8 ADJUSTMENTS ..................................................... 31
9. FOR PD-8904/HEM, HL, SD

AND PD-8904~G/HEM ..... 36
10. PANEL FACILITIES ..... 38
11 SPECIFICATIONS ................................................ 39

PIONEER ELECTRONIC CORPORATION 471, Meguro 1-Chome, Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760' Long Beach, California 90801 USA

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham. Ontario L3H 0P2 Canada

PIONEER ELECTRONIC IEUROPEI N.V. Haven 1087 Keetberglaan 1 9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRAUA PTY LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL ' I03] 5808911

© PIONEER ELECTRONIC CORPORATION 1995 V
T-SSG AR? 1995 Puma m Japan

Page 2

PD-SQO4, PD-SQO4-G

1 . SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used In this product is llsted by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health 8: Safety Code. Section 25295).

when servicing or handling circuit boards and other components which contain lead in solder. avoid unprotected skin contact with
the solder. Also, when soldering do not Inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols {EB- (fast operating fuse) and/or {EE- (slow operating fuse) on PCB indicate that replacement parts

must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible a (fusible de type rapide) et/ou a (fusible de type lent) sur CCI indiquent que les

pieces de remplacement doivent avoir Ia meme designation.

FIFOR USA MODEL ONLY)
1 . SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe. conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or

metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc). Plug
the AC line cord of the appliance directly into a 120V
AC BOHz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

Reading should

Leakage not be above
current °»5"A

leSlEl

Device
under
test

Test all
exposed metal
surfaces

9 Also test with
plug reversed
(Using AC adapter
plug as requiredl

Earth
ground

AC Leakage Test

equivalent between the earth ground and all exposed

ANY MEASUREMENTS NOT WlTHlN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PC-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the apoli«
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vol-
tage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to. or ad-
ditional copies of. PIONEER Service Manual maybe
obtained at a nominal charge from PIONEER.
