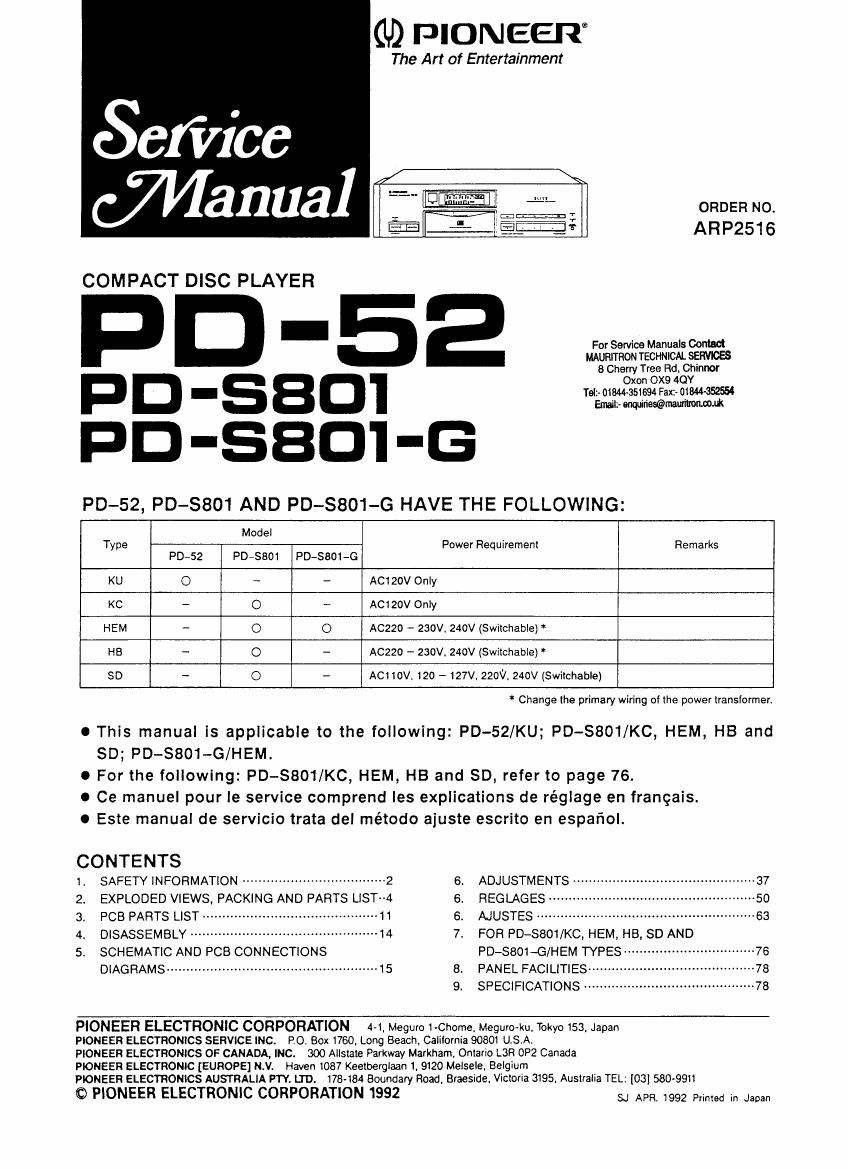

Page 1

GD mower-2w

The Art of Entertainment

ORDER NO.
AR P251 6

COMPACT DISC PLAYER

For Service Manuals Contact
MAURITFION TECHNICAL SERVICES
8 Cherry Tree Rd, Chinmr
Oxon OX9 4QY
- Telz- cimssissa Faxz- aim-3525a
Email:-orwirias@muri1mn.oo.uk

PD-52, PD-8801 AND PD-8801-G HAVE THE FOLLOWING:

Model
Type Power Requiremeni Remarks
PD-SZ ID-$801 PD-SBOi-G
KU O - - ACIZOV Only
KC - O - ACI 20V Only
HEM - O O A0220 230V. 240V (Switchable) *
HB - O - A0220 - 230v. 240V (Switchable) *
so - O - AC1 10V, 120 - 127v. 220V. 240V (Swilchable)

* Change Ihe primary wiring of Ihe power transformer.

o This manual Is applicable to the following: PD-52/KU; PD-8801/KC, HEM, HB and
SD; PD-SBOI-G/HEM.

0 For the following: PD-SSOI/KC, HEM, HB and SD, refer Io page 76.

0 Ce manuel pour le service comprend Ies explications de réglage en frangais.

o Este manual de servicio trata del méIodo ajuste escrito en espafiol.

CONTENTS
I SAFETY INFORMATION --2 6. ADJUSTMENTS . -37
2. EXPLODED VIEWS PACKING AND PARTS LIST 4 6. REGLAGES
3. PCB PARTS LIST ........ 11 6. AJUSTES
4. DISASSEMBLY ~~~~~~~~ 14 7. FOR PD-SBOI/KC, HEM, HE. SD AND
5. SCHEMATIC AND PCB CONNECTIONS PD-S801-G/HEM TYPES --------------------------------- 76
DIAGRAMS ..................................................... 15 3 PANEL FACILITIES ......
9. SPECIFICATIONS -------

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku. Tokyo 1534 Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760, Long Beach, California 90801 USA,

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham. Ontario LEFT 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven l087 Keetberglaan 1. 9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LID. 178-184 Boundary Road, Braeside, Vicioria 3195. Australia TEL: [03] 5809911

© PIONEER ELECTRONIC CORPORATION 1992 SJ Am 1992 pnmad in Japan

Page 2

This service manual is intended for qualified service technicians; it is not
meant for the casual do-it»yourselfer. Qualified technicians have the neces-
sary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to
perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as
a known reproductive toxicant which may cause birth defects or other reproductive harm

(California Health & Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in
solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale

any smoke or fumes produced. .

1. SAFETY INFORMATION

(FOR USA MODEL ONLY)
1.SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage currentto a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 2292 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals.
screwheads, metal overlays, control shaft. etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60H2 outlet and turn the AC power switch on. Any
current rr. asured must not exceed 0.5mA.

Reading should

Leakage not be above
OtSmA

Device current
under tester
test
Test all
exposed metal
surfaces
2-wire cord

Earth
ground

@ Also test with
plug reversed
(Using AC adapter

plug as required)

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER

2.PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vo|«
tags, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are
identified by marking with a A on the schematics and
on the parts list in this Service Manuals
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
