pioneer pds 707 service manual

Extracted text from pioneer pds 707 service manual (Ocr-read)

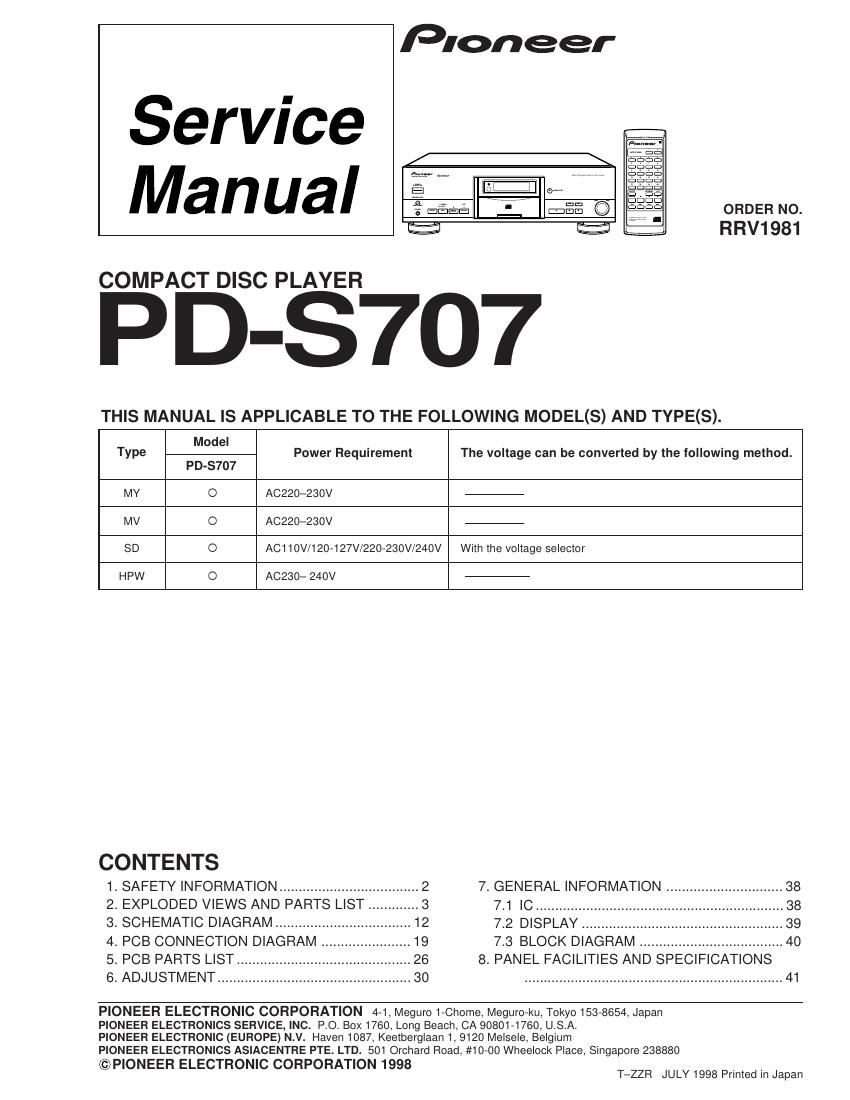

Page 1

Service

Pioneer

COMPACT DISC PLAYER

Manual " o~
if Elfin-é: - GEE 0 ORDER NO.
% g RRV1981

D-S707

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

4. PCB CONNECTION DIAGRAM
5. PCB PARTS LIST
6. ADJUSTMENT ........

Model
Type Power Requirement The voltage can be converted by the following method.
PD-S707
MY 0 A0220-230v
MV 0 A0220-230v
SD 0 AC110V/120-127V/220-230V/240V With the voltage selector
HPW o AC230- 240v
CONTENTS
1. SAFETY INFORMATION .................................... 2 7. GENERAL INFORMATION .............................. 38
2. EXPLODED VIEWS AND PARTS LIST ............. 3 7,1 10 ................ 38
3. SCHEMATIC DIAGRAM ................................... 12 7.2 DISPLAY 39

7.3 BLOCK DIAGRAM ..................................... 4O
8. PANEL FACILITIES AND SPECIFICATIONS
................................................................... 41

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melseie, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880

©P|ONEER ELECTRONIC CORPORATION 1998

T-ZZR JULY 1998 Printed in Japan

Page 2

PD-S707

1. SAFETY INFORMATION

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUTED PERSON.

LASER DIODE CHARACTERISTICS 7
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 , 785 nm

LABEL CHECK

MV and HPW types

MY type
CAUTION
:x::32:'.i:.ii:2'i:::z.::::::" '"V'S'BLE LASER

1......unimigsfiwm"..- RADIATION WHEN OPEN,
......:3m...5rmg.x. AVOID EXPOSURE

mum-n um. T0 BEAM PRw1018


MY type

VMSEI.
mm mum-ms vm All-s nu mu m»
mum III III :5 mum

immune M 5m
minim

mm minutiae um ms wan um

mxwmswsrun 51mm mm mum

mum

Additional Laser Caution

1. Laser Interlock Mechanism
The position of the switch ($601) for detecting loading
state is detected by the system microprocessor, and the
design prevents laser diode oscillation when the switch
(3601) is not on CLMP terminal side (CLMP signal is OFF
or high level.). Thus, the interlock will no longer function if
the switch (5601) is deliberately set to CLMF' terminal
side (low level).
The interlock also does not function in the test mode*.
Laser diode osctllation will continue. if pin 33 of
CXA1782CQ (IC151) on the MAIN BOARD ASSY is
connected to GND, or pin 22 of |C301(LDON) is
connected to low level (ON), or else the terminals of 0151
are shorted to each other (fault condition).

2. When the cover is opened with the servo mechanism
block removed and turned over, close viewing of the
objective lens with the naked eye will cause exposure to a
Class 1 laser beam.

* Refer to paga 31 .
