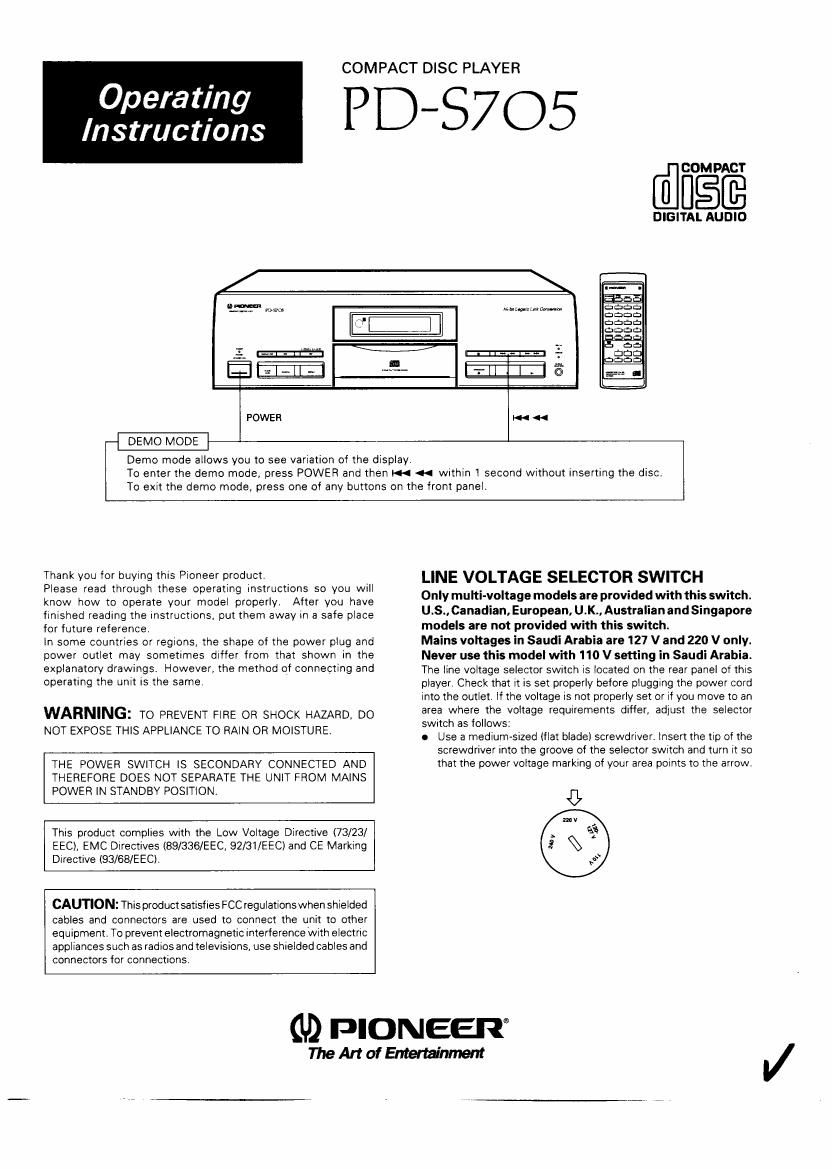

Operating

Instructions

COMPACT DISC PLAYER

3-57 O5

COMPACT

DIGITAL AUDIO

DEMO MODE

m«

Demo mode allows you to see variation of the display,
To enter the demo mode, press POWER and then 044 « Within 1 second Without inserting the disc.
To exit the demo mode, press one of any buttons on the front panel,

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will
Know how to operate your model properly. After you have
finished reading the instructions. put them away in a safe place
for future reference.

In some countries or regions. the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings. However, the method of connecting and
operating the unit is the same

WARNING: TO PREVENT FIRE on SHOCK HAZARD, Do
NOT EXPOSE THIS APPLIANCE T0 RAIN on MOISTURE.

THE POWER SWITCH IS SECONDARY CONNECTED AND
THEREFORE DOES NOT SEPARATE THE UNIT FROM MAINS
POWER IN STANDBY POSITION

This product complies with the Low Voltage Directive (73/23/
EEC). EMC Directives (89/336/EEC, 92/31/EEC) and CE Marking
Directive (93/68/EEC).

CAUTION: This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit to other
equipment To prevent electromagnetic interference With electric
appliances such as radios and televisions, use shielded cables and
connectors for connections

LINE VOLTAGE SELECTOR SWITCH

Only mum-voltage models are provided with this switch.
U.S.. Canadian, European, U.K., Australian and Singapore
models are not provided with this switch.
Mains voltages in Saudi Arabia are 121 V and 220 V only.
Never use this model with 110 V setting in Saudi Arabia.
The line voltage selector switch IS located on the rear panel of this
player. Check that it is set properly before plugging the power cord
into the outlet If the voltage is not properly set or if you move to an
area where the voltage requirements differ, adjust the selector
swnch as follows:
0 Use a medium-Sized Iflat blade) screwdriver. Insert the tip of the
screwdriver into the groove of the selector swnch and turn it so
that the power voltage marking of your area points to the arrow.

GD PIONEEIT

flieArtofEmerminmeI-u

Page 2

IMPORTANT 1

The light ' flash with arrowhead. within an equilateral
Mingle. is ended to alert the user to the presence of
uninsulated 'dangerous voltage' wilhin the product's
enclosure that may be of sufficient magnilude to
constitute a risk of electric shock to persons

CAUTION

loK OF ELkClR
DO NOT OPEN

CAU'HW:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (0R IACKI. NO USER-SERVICEABLE
PARTS INSIDE REFER SERVICING TD QUALIFIED
SERVICE PERSONNEL,

The exclamation point within an equilateral mangle is
intended to alert the user to me presence of important
operating and mainteria nce (servicing) instructions in the
literature accompanying the appliance

IMPORTANT 2

FOR USE IN THE UNITED
KINGDOM

The win: in this mains load In coloured in
accumu- with the lollowng code :

Bllu :Nlutlll

Bruin" : Live
ll the plug provlded is unsuitable Ior your socket
outlets. the plug must be cut oil and a suitable plug
fitted.

The cut-off plug should be disposed M and must not be
inserted Into any 13 amp socket as this can result in electric
shock, The plug or adaptor or the distribution panel should
be provided with 5 amp fuse As the colours of the wlles in
the mains lead or this appliance may not correspond with
coloured markings identifying the terminals in your plug.
proceed as follows :

The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black,
The Wire which is coloured brown must be connected

to the terminal which is marked with the letter Lor coloured
red,

Do not connect either wire to the earth terminal or a
threepin plug.

NOTE

After replacing or changing a Iuse, the fuse cover in the
plug must be replaced with a fuse cover which corre
sponds to the colour otthe insert in the base of the plug
or the word thatisembossed on the base at the plug, and
the appliance must not be used Without a tuse cover, It
lost replacement fuse covers can be obtained from
your dealer

Only 5 A luses approved by B SJ or AS TA to 5.5.
1362 should be used.

[FOR U.K. MODEL]
CAUTION

This product contains a laser diode of higher class
than 1. To ensure continued safety. do not remove
any covers or attempt to gain access to the inside

of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your player.

Location: rear of the player

CLASS 1

LASER PRODUCT

VRWV329

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device. pursuant to Part 15 of the FCC Rules.
These limits are deSigned to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or televrsion reception. which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION
I Use of controls or adjustments or performance of procedures'other than those specified herein may result in hazardous radiation exposure.
I The use of optical instruments with this product will increase eye hazard.

2

En
