Pioneer pds 06 service manual

This is the 44 pages manual for pioneer pds 06 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 44
pioneer pds 06 service manual

Extracted text from pioneer pds 06 service manual (Ocr-read)

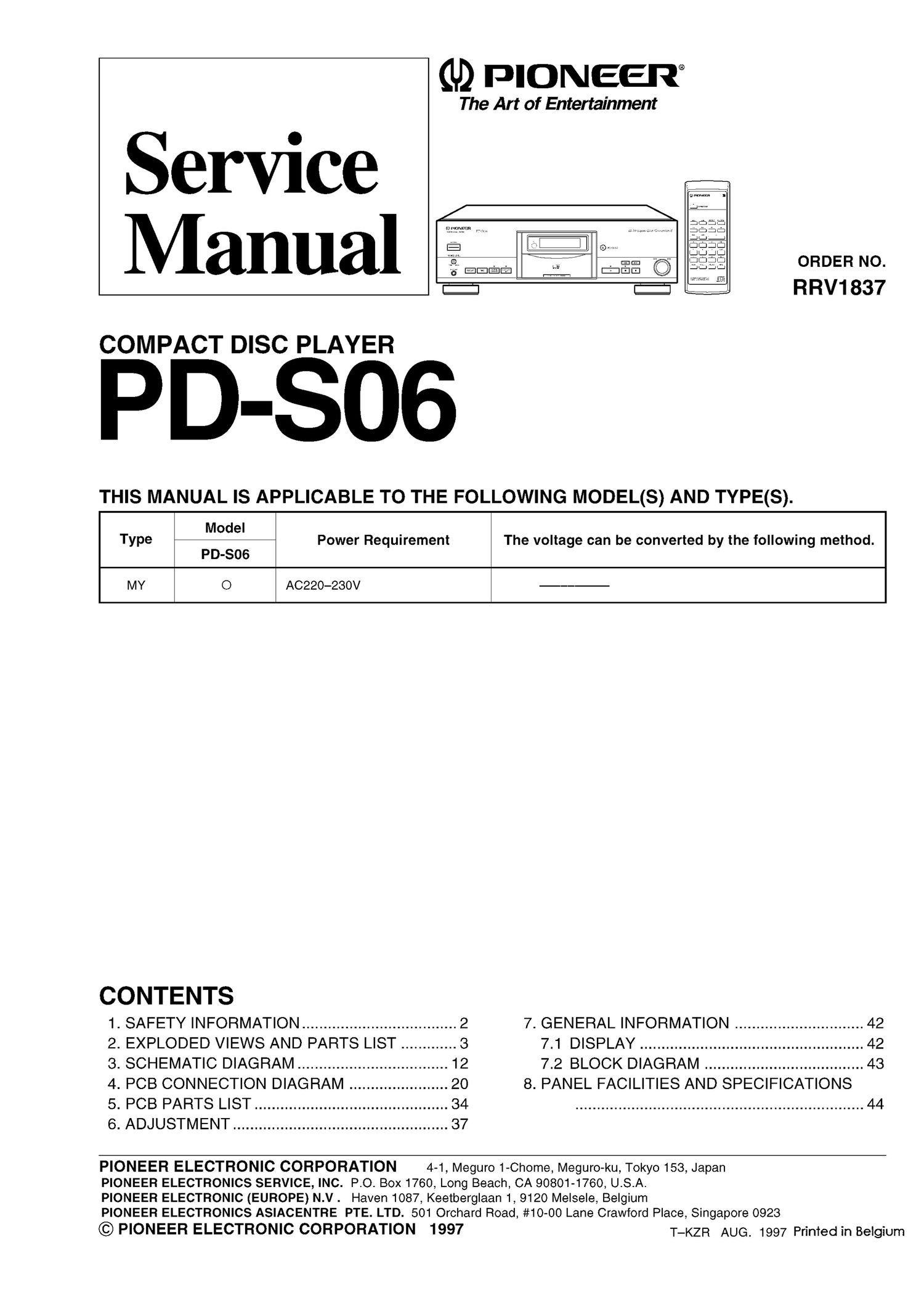

Page 1

(U) PIONEER?

The Art of Entertainment

ervice

:1: iii:

eeie
'_]Ll'_]
Sfilfiicll
muse
3333 ORDER NO.
:L'BTi-leim'li. 11F;
aria RRV1 837

COMPACT DISC PLAYER

I-SOG

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Power Requirement The voltage can be converted by the following method.

AC220-230V

CONTENTS
1. SAFETY INFORMATION .................................... 2 7. GENERAL INFORMATION .............................. 42
2. EXPLODED VIEWS AND PARTS LIST ............. 3 7.1 DISPLAY .................................................... 42
3. SCHEMATIC DIAGRAM ................................... 12 7.2 BLOCK DIAGRAM ..................................... 43
4. PCB CONNECTION DIAGRAM ....................... 20 8. PANEL FACILITIES AND SPECIFICATIONS
5. PCB PARTS LIST ............................................. 34 ................................................................... 44
6. ADJUSTMENT .................................................. 37

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997 T-KZR Aug, 1997 Printed in Belgium

Page 2

PD-SOB

1. SAFETY INFORMATION

-VARO!
AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA
NAKYMATTOMALLE LASERSATEILYLLE.
ALA KATSO SATEESEEN.

- ADVARSEL:

USYNLIG LASERSTRALING VED ABNING
NAR SIKKERHED SAFBRYDERE ER UDE AF
FUNKTION. UNDGA UDSflETTELSE FOR
STRALING.

- VARNING I

OSYNLIG LASERSTRALNING NAR DENNA
DEL AR OPPNAD OCH SPARREN
AR URKOPPLAD. BETRAKTA EJ STRALEN.

LASER

Kuva 1
Lasersateilyn
varoitusmerkki

- WARNING I

DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUTED PERSON.

MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780-785 nm

LASER DIODE CHARACTERISTICS -

LASER

Picture 1

Warning sign for
laser radiation

LABEL CHECK

_ ADVARSEL
usruuc Lussasmms um haunts m mam sar-
anvomr EH um AF ruulrimr.
uuusli umrrass Fun 5mm.

VOHSICHT!
UNSICHTBARE useurmuue ram nus. warn 85cm
loom KLAPPsl artisan ISTI man our 511er mm!
VHWIDM

HARD!

Avnttaossl ja suajalukitus ohitotta-
essa olet nlttilna nfikymnttémilla

laseralteilylle. 31a katso sateeseen.

VARNINGI

Osynlig lasarstrdlning nar denna del
it Gppnad och spartan fir urkopplad.
Betraktn e] strtlcn. URW1297A

CLASS I

LASER PRODUCT

Additional Laser Caution

. Laser Interlock Mechanism

The position of the switch (8601) for detecting loading
state is detected by the system microprocessor, and the
design prevents laser diode oscillation when the switch
(8601) is not on CLMP terminal side (CLMP signal is OFF
or high level.) Thus, the interlock will no longer function it
the switch (8601) is deliberately set to CLMP terminal
side (low level).

The interlock also does not function in the test mode*.
Laser diode oscillation will continue, it pin 1 of M51593FP
(IC101) on the PRE-AMP BOARD ASSY mounted on the
pickup assembly is connected to GND, or pin 19 is
connected to low level (ON), or else the terminals of 0101
are shorted to each other (fault condition).

. When the cover is opened with the servo mechanism

block removed and turned over, close viewing of the
objective lens with the naked eye will cause exposure to a
Class 1 laser beam.

* Refer to page 38 .
