Page 1

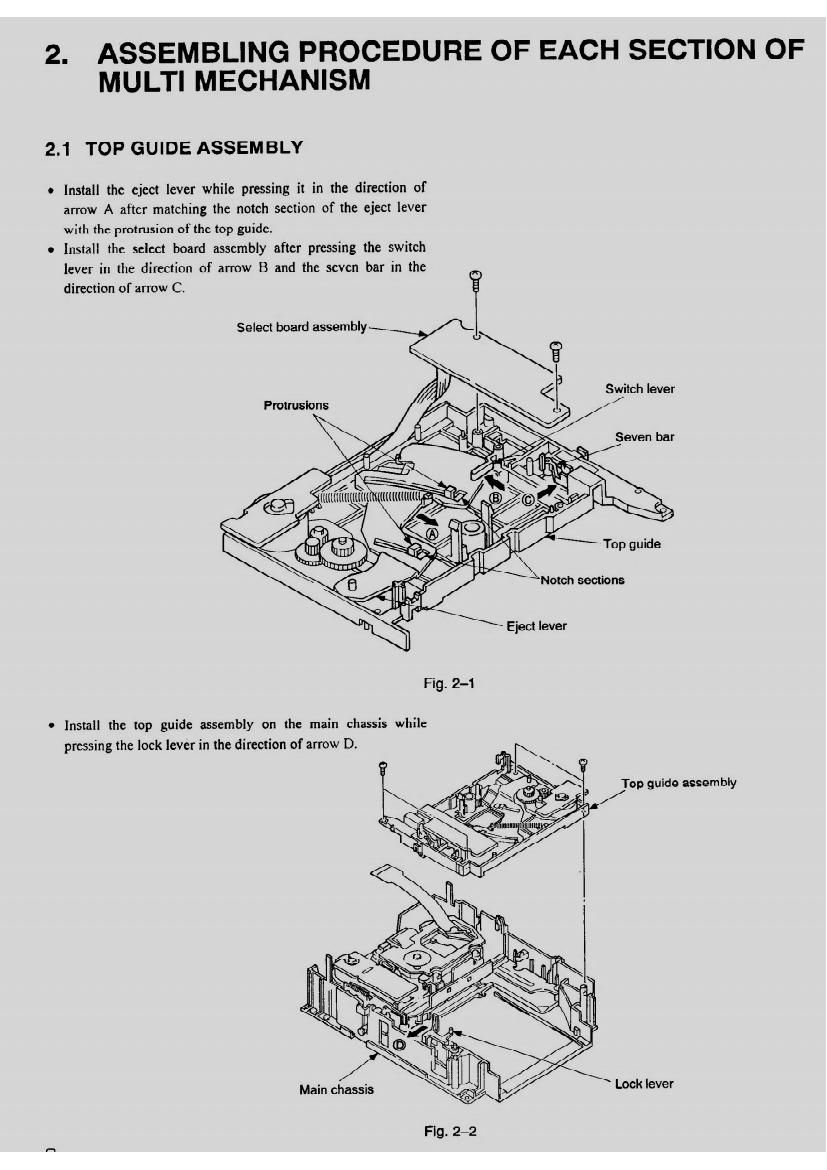

2. ASSEMBLING PROCEDURE OF EACH SECTION OF
MULTI MECHANISM

2.1 TOP GUIDE ASSEMBLY

0 Install the eject lever while pressing it in the direction of
arrow A after matching the notch section of the eject lever

with the protrusion of the top guide.
. Install the select board assembly after pressing the switch

lever in the direction of arrow B and the seven bar in the
direction of arrow C. ?

Select board assembly


(la Switch lever
/

Seven bar

Protrusions

Fig. 2-1

0 Install the top guide assembly on the main chassis while
pressing the lock lever in the direction of arrow D.

Top guide assembly

Lock lever

Page 2

2.2 ASSEM BLING

PROCEDURE OF
SUB-CHASSIS ASSEMBLY

install the rotary lever assembly while matching the groove of
the rotary lever assembly with the pin of the drive board.
Install the gear holder assembly while matching the pin of the
cam gear with the drive board after mounting the drive board
on the upper chassis and pressing it fully in the direction of
arrow A.

0 After mounting the gear holder assembly on the upper chassis

while hanging the holder lever spring on the hook of gear
holder first, then hang again one of the holder lever spring.
(See notes in the figure.)

Install the sub-chassis on the upper chassis after pressing the
pin of clamper cam fully in the direction of arrow B so that

the pin of clamper cam matches with the circumference
groove of the cam gear.

Gear holder assembly

Holder lever spring

Hang © side of the spring to ® side after hanging the holder lever
spring as shown in the figure and installing the gear holder

assembly.
©
<
Hang on hook. / \/
\ Pin ol carn gear ®

Upper chassis

Groove
Rotary lever assembly
