Pioneer pdm 703 service manual

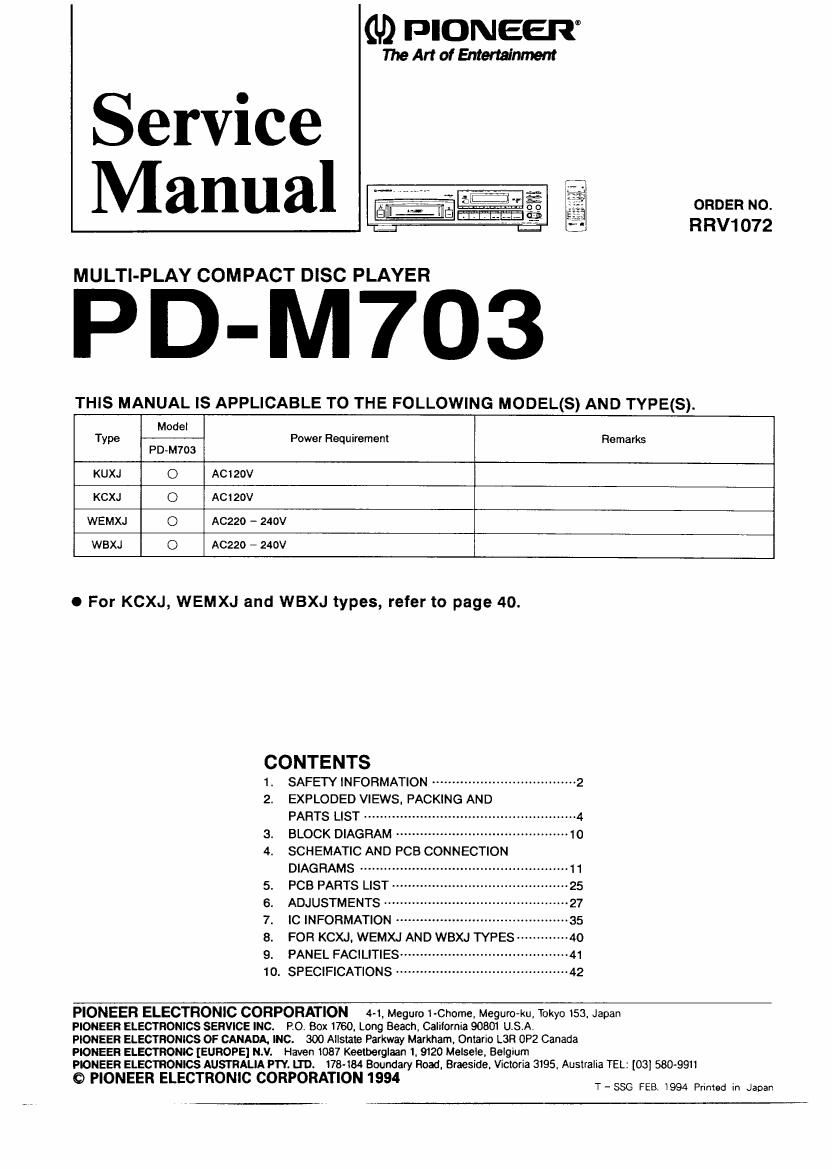

Page 1

M PIONEER"

The Art ofEntenainmem

Service

Manual

MULTl-PLAY COMPACT DISC PLAYER

PD-M7

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.
RRV1 072

Model
Type Power Requirement Remarks
PD-M703
KUXJ O AC120V
KCXJ O ACI 20V
WEMXJ O A0220 - 240V
WBXJ O A6220 - 240V

O For KCXJ, WEMXJ and WBXJ types, refer to page 40.

1CONTE NTS

SAFETY INFORMATION .................................... 2
2. EXPLODED VIEWS, PACKING AND

PARTS LIST ..................................................... 4
3_ BLOCK DIAGRAM ........................................... 10
SCHEMATIC AND PCB CONNECTION
DIAGRAMS ................................ 11
PCB PARTS LIST
ADJUSTMENTS--
IC INFORMATION--
FOR KCXJ. WEMXJ AND WBXJ TYPES
PANEL FACILITIES vvvvv
O SPECIFICATIONS ------

:5

"SDQNS?

PIONEER ELECTRONIC CORPORATION

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach, Calilornia 90801 USA.
PIONEER ELECTRONICS OF CANADA. INC. 300 Allstate Parkway Markham, Onlario L3H 0P2 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1. 9120 Melsele. Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. IJ'D.

O PIONEER ELECTRONIC CORPORATION 1994

4-1, Meguio 1~Chome, Meguro-ku, Tokyo 153. Japan

178-134 Boundary Road, Braeside. Victoria 3195. Auslralia TEL: [03] 580-9911

T-SSG FEB. 1994 Printed in Japan

Page 2

PD-M703

1 . SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health e Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder. avoid unprotected skin contact with
the solder. Also, when eolderlng do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols ~EB- (fast operating fuse) and/or a (slow operating fuse) on PCB indicate that replacement parts

must be of identical designation.

HEMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible EEl (fusible de type rapide) eru a (fusible de type lent) sur CCI indiquent que les

pieces de remplacement doivent avoir Ia méme designation.

FfFOR USA MODEL ONLY)

1.$AFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads. metal overlays, control shaft, etc). Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

Reading should

Leakage not be above
current OSmA

tester

Device
under
test

Test all
exposed metal
surlaces

@ Also test with
plug reversed
(Using AC adapter
plug as required)

Earth
ground

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob»
tained by using replacement components rated for vole
tage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
