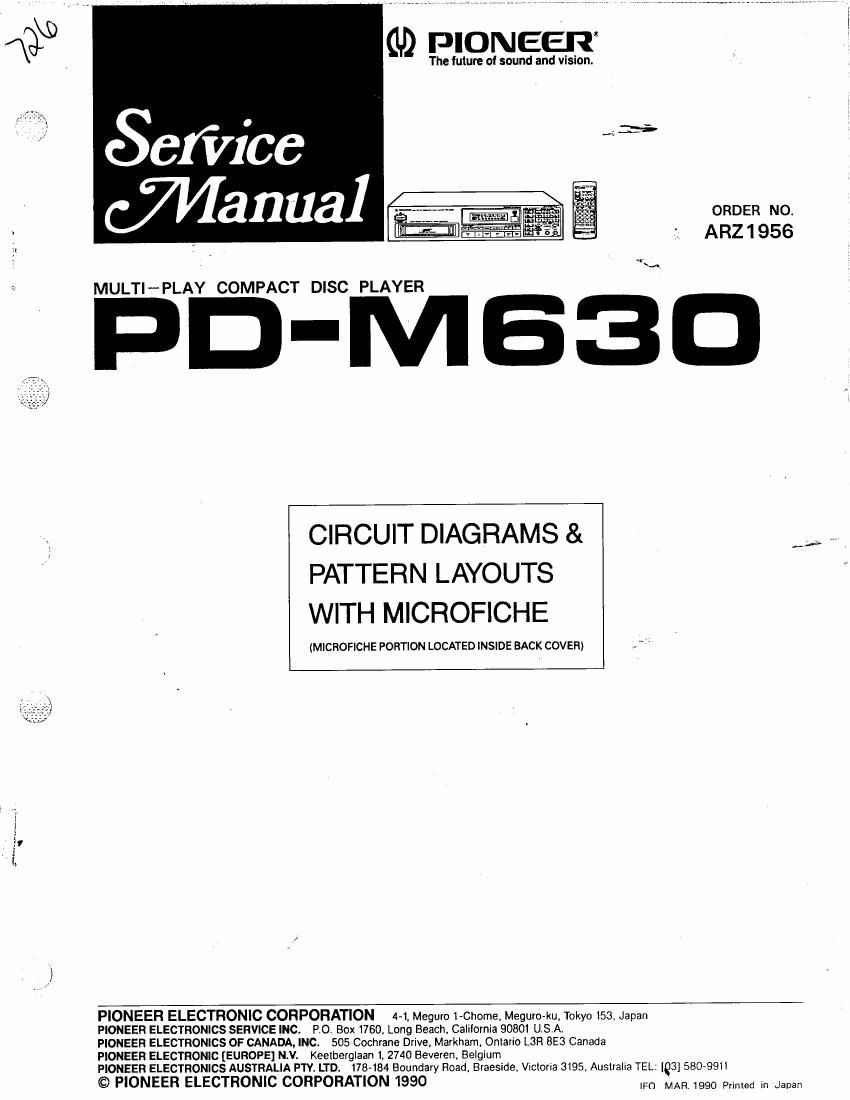

Pioneer pdm 630 schematic

Page 2

NOTES :

.Parts without part number cannot be supplied.

OThe A mark found on some component parts indicates the importance of the safety factor of the part Therefore, when
replacing, be sure to use parts of identical designation.

OParts marked by (9" are not always kept in stock Their delivery time may be longer than usual or they may be unavailable.

Parts List
Mark No, Part No. Description Mark No. Part No Description
A 1 CM-22C Strain relief 101 PCB mold
2 PDD1058 Flexible cable 102 Under base
A 3 PDG1OOZ AC power cord 103 Rear base
A 4 PTT1143 Power transformer 104 Angle
(AC120V) 105 Center angle
5 PYY1131 Bonnet 106 PCB spacer
6 PNM1070 Stopper * 107 Multi mechanism assembly
7 VNK1095 Insulator 108 Name plate
8 AMR1160 LED lens 109 Function panel
9 PAC137O Headphone knob
110 Power switch board assembly
10 PAC144O Select button 111 Transformer board assembly
11 PAC1453 Power button 112 Headphone board assembly
12 PAC1454 Disc button 118 Earth plate
13 PAC1455 Function button
14 PAC1456 Mode button
15 PAC1457 Memory button
16 PAM137O Door name plate
17 PAM1371 Program name plate
18 PAM1437 Display window
19 PAM1373 Display screen
20 PBH1022 Door spring
21 PNW1532 Door

22 BBZBOPOSOFCC Screw
23 BBZ3OP120FZK Screw
24 BBZ40PO6OFMC Screw

25 FBT40P080FZK Screw
26 IBZSOPOSOFCC Screw

27 IBZ30P100FCC Screw >l< The stopper consist of the big ring part and the small
28 IBZBOP18OFMC Screw g Pa"; . .
© 29 PW21843 Main board assembly If you stick the stopper to the leg, stick the big ring part

to the front leg, and the small ring part to the rear leg.
© 30 PWZl854 Function board assembly

A 31 PEMlOOS Lithium battery (BT351) 6
32 PEAlOSl Function panel assembly
33 lPZSOPOGOFMC Screw
34 IBZBOPlSOFMC Screw /\

(For the
(For the ea I
front leg) r r 89)

3.2 MECHANISM SECTION

Parts List of Mechanism Section

Mark No. Part No. Description Mark No. Part No. Description
1 PEB1138 Belt 49 WT12D032D025 Washer
2 PNB1219 Stair (L) 50 IF220P040FMC Screw
3 PNBIZZO Stair (R) 51 WT26D047D025 washer
4 PNW1644 Gear pulley 52 WT31D054D025 Washer
5 PNW1645 Gear 53 BPZZOPO8OFZK Screw
6 PNW1097 Gear 54 PXM1013 Dr C. motor (CARRIAGE)
7 PNW164O Select SW base 55 PNW1605 Half nut
8 PNW1122 Gear 56 PBH1084 Drive spring
9 PXM1011 Motor 57 PBK1057 Plate spring
(LOADING, DISC SELECT) 58 PEB1072 Belt
10 PBH465 Eject spring 59 PLA1003 Drive screw
11 PBH1014 Lock spring 60 PLA1071 Guide bar
12 PBH1088 SM spring 61 PNW1634 Motor pulley
13 PBH1018 Stair spring 62 PNW1066 Pulley
14 PBK1009 Drive spring 63 PBZSOPOBOFMC Screw
15 P8137001 Steel ball (1)4 64 PSI-11003 Slide switch (INSIDE)
16 PNW1099 Rack 65 - - ' r '
17 PNW1641 Operation plate 66 PEAIOBO Pickup assembly
18 PNW1639 Top guide 67 PEA1035 Disc table assembly
19 PNW1258 Drive plate 68 PNW1643 Motor pulley
69 PNM1096 Cushion
20 PNW1395 Lock lever
21 - ' . . . 101 Motor base
22 PBH1009 Earth spring 102 Switch board assembly
23 PBA- 125 Screw 103 Select board assembly
24 PBAIOOZ Screw 104 Servo mechanism assembly
105 Pressure spring
25 PBH1016 Clamper spring (T)
26 PBH1017 Clamper spring (B) 106 Main chassis
27 PEB1014 Float rubber 107 Gear angle (L)
28 PEDlOOl Cushion (A) 108 Gear angle (R)
29 PEDIOOZ Cushion (B) 109 Synchronized lever
110 SM select
30 PXA1299 Rotary lever unit
31 PNW1106 Clamper cam 111 Eject lever
32 PNW1107 Clamper holder (T) 112 Drive lever
38 PNW1108 Clamper holder (B) 113 Bottom guide
34 PNW1110 Pressure cam 114 Actuater spring
115 Binder
35 PNWllll Upper tray
36 PNW1448 Clamper 116 Sub chassis
37 PEA1028 D. C. motor assembly 117 Upper chassis
(SPINDLE) (with oil) 118 Upper guide
38 PEB1132 Float rubber 119 Actuater
120 Earth lead unit
39 BPZSOPIOOFMC Screw
4O IBZBOP060FCC Screw 121 SW angle
41 BBZ30POGOFMC Screw 122 Yoke M
42 PC230P040FMC Screw 123 Mechanism base
43 PMZZOPOSOFMC Screw 124 Cushion
125 Cushion rubber 215
44 PM230P030FMC Screw
45 WA30F120M100 Washer 126 Axiysliding sheet
46 WA32D060D050 Washer 127 Rubber tube
47 PLA1023 Roller 128 Mechanism chassis
48 WA31D054DO50 Washer 129 Mechanism board assembly

C

D

_|

PD-M630

0 How to install the disc table

[3 Use nippers or other tool to cut the two sections
marked ® and the three sections marked (9 in

figure I, Then remove the spacer,

l2 While supporting the spindle motor shaft with
the stopper, put spacer on top of yoke M. and
stick the disc table on top (takes about 9kg press-
ure). Take off the spacer.

Spacer setting

posilian Dim: table
(pressure

of about 9kg]

Spindle motor
mounting posltion

Spacer

Chassis

7.3"
Yoke M + 0 05"
Spindle i w
3 motor I Stowe:
