Pioneer pdm 503 service manual

This is the 2 pages manual for pioneer pdm 503 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer pdm 503 service manual

Extracted text from pioneer pdm 503 service manual (Ocr-read)

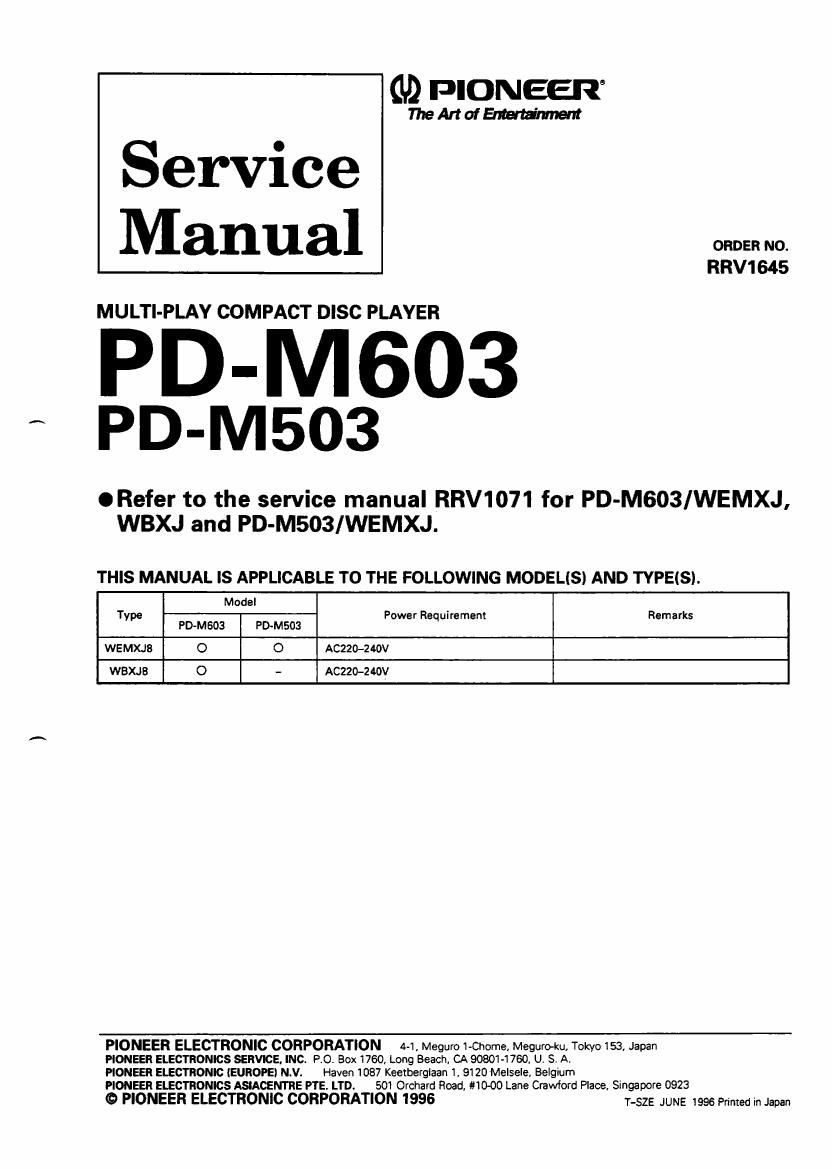

Page 1

Service
Manual

MULTI-PLAY COMPACT DISC PLAYER

PD-M603
PD-M503

ORefer to the service manual RRV1071 for PD-M603/WEMXJ,
WBXJ and PD-M503/WEMXJ.

(U) PIONEER

TheArlafEnmna'nment

ORDER NO.
RRV1645

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEIS).

Model
Type Power Requirement Remarks
PD-M603 PD-M503
WE MXJB O O AC220~2 40V
WBXJB O - AC220-2 40V

PIONEER ELECTRONIC CORPORATION

PIONEER ELECTRONICS SERVICE. INC. PO. Box 1760, Long Beach, CA90801-1760, U. S. A.

PIONEER ELECTRONIC (EUROPE) N.V.
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

9 PIONEER ELECTRONIC CORPORATION 1996

4-1, Meguro 1-Chome. Meguroku, Tokyo 153. Japan

501 Orchard Road, #1000 Lane Crawford Place, Singapore 0923

T-SZE JUNE 1996 Primed in Japan
