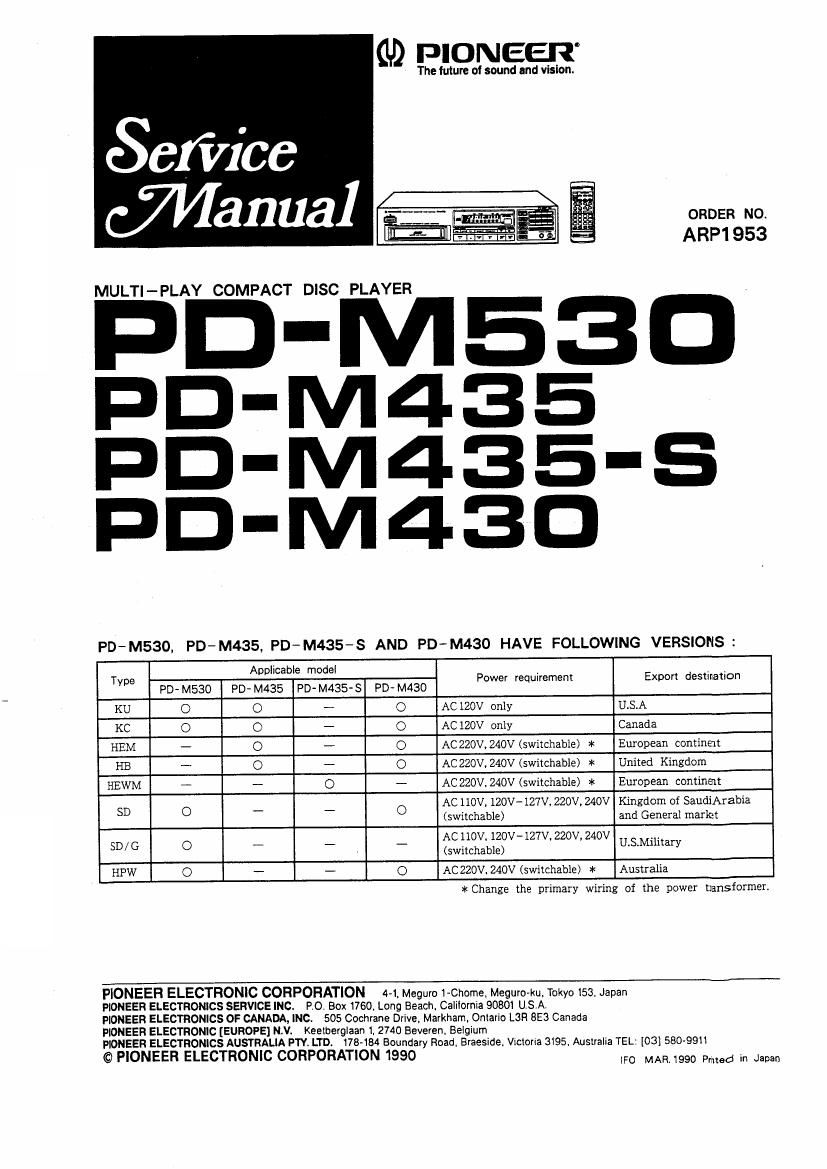

Page 1
PIONEER
The future of sound and vision.
Scfiice
manual , 7 1 ORDER NO.
H 7 ARP1953
MULTl-PLAY COMPACT DISC PLAYER
PD-MEED
PD-M435
PD-M435-S
pD-M430
PD- M530, PD- M435, PD- M435- 8 AND PD- M430 HAVE FOLLOWING VERSIONS :
ApplicabIe model , _ .
Type Power requlrement ExporI destmatuon
PD~ M530 PD- M435 PD- M435- 5 PD- M430
KU O O - 0 AC 120V only U.S.A
KC 0 O -- 0 AC 120V only Canada
HEM - O - 0 AC 220V. 240V (switchable) * European continat
HB - O -- 0 AC 220V. 240V (switchable) * United Kingdom
HEWM - - O - ACZZOV, 240V (switchable) * European continmt
SD 0 _ _ 0 AC 110V, 120V- 127V, 220V, 240V Kingdom of SaudiArabIa
(switchable) and General market
AC 110V, IZOV- 127V. 220V, 240V . I
SD/ G 0 w - (switchable) U.S.M1lnary
HPW O - - 0 AC 220V,240V (switchable) * Australia
* Change the primary wiring of the power transformerr
PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome. Meguro-ku. Tokyo 153. Japan
PIONEER ELECTRONICS SERVICE INC. PO Box 1760. Long Beach. Calilornia 90801 U SA.
PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive. Markham, OnIario L3H 8E3 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Keemerglaan 1. 2740 Beveren. BeIgium
PIONEER ELECTRONICS AUSTRALIA PTV, LTD. 178-184 Boundary Road. Braeside Viclona 3195, Australia TEL: [03] 5809911
O PIONEER ELECTRONIC CORPORATION 1990 {F0 MAR. 1990 Fwd in man
