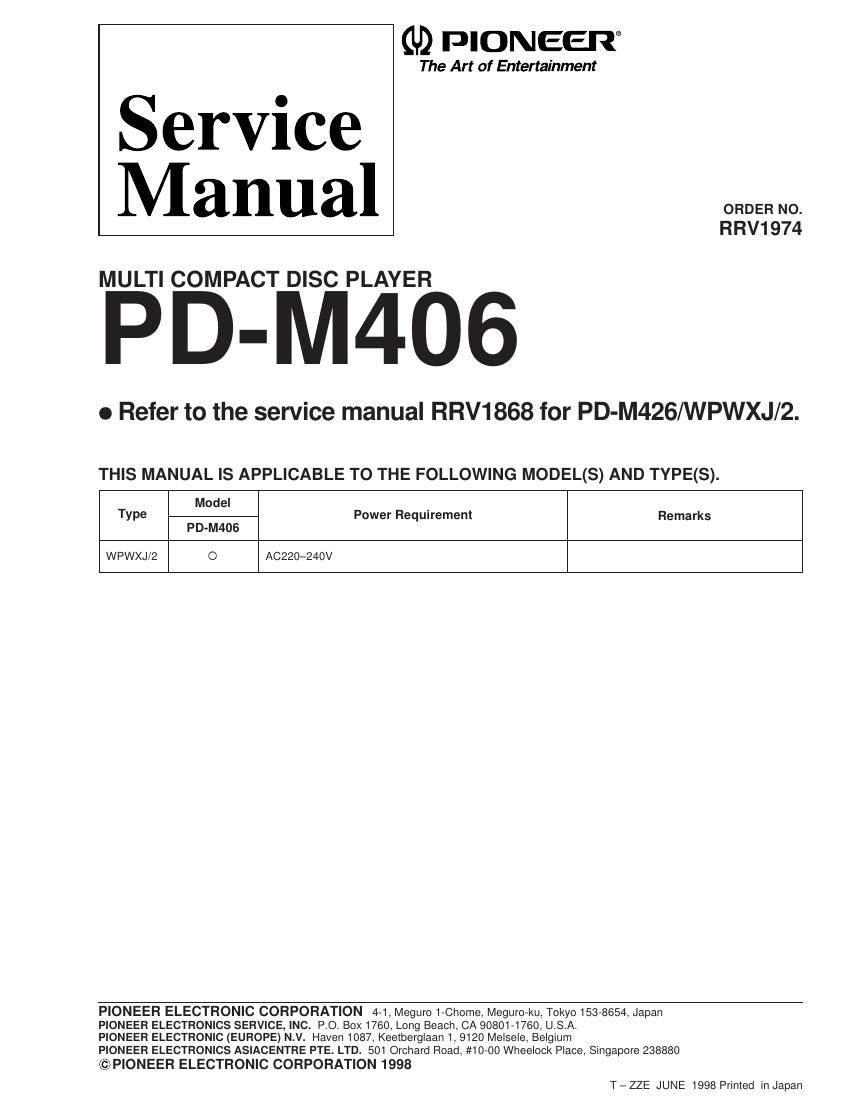

Pioneer pdm 406 service manual
This is the 3 pages manual for pioneer pdm 406 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdm 406 service manual (Ocr-read)
Page 1
PD-M406 2 CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST TABLE PD-M406/WPWXJ/2 and PD-M426/WPWXJ/2 are constructed the same except for the following: PCB ASSEMBLIES P7Ð20 MOTHER BOARD ASSY PWM2156 PWM2153*1 NSP SUB BOARD ASSY PWX1337 PWX1335 P7Ð19 FUNCTION BOARD ASSY PWZ2769 PWZ2768*1 PACKING P5Ð 1 Control Cable (for SR) (L=1m) Not used PDE1247 P5Ð 3 Remote Control Unit (CU-PD068) PWW1107 Not used P5Ð 4 Battery Cover PZN1010 Not used P5Ð 9 CD Packing Case PHG2243 PHG2326 P5Ð11 NSP Dry Cell Battery (AAA/R03) VEM-022 Not used EXTERIOR P7Ð 2 32P F.F.C/30V PDD1041 Not used P7Ð 2 30P F.F.C/30V Not used PDD1049 P7Ð 9 Function Panel PNW2726 PNW2730 P7Ð15 Display Window PAM1635 PAM1730 P7Ð31 Rear Base PNA2412 PNA2437 Ref. No.Remarks PD-M426/WPWXJ/2 PD-M406/WPWXJ/2Part No. Mark Symbol and Description NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 .........................................................................RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F *1 Refer to Ò CONTRAST OF PCB ASSEMBLIES Ó .
Page 2
PD-M406 3 CONTRAST OF PCB ASSEMBLIES MOTHER BOARD ASSY PWM2153 and PWM2156 are constructed the same except for the following: MarkSymbol and Description Remarks Part No. D392ÐD394 Not used 1SS254*1 L391 Not used LAU1R0*1 R391 Not used RD1/4PU244J*1 R392 Not used RD1/4PU102J*1 C393 Not used CCCSL101J50*1 C399 Not used CKCYF103Z50*2 JA391, JA392 SR JACK Not used RKN1004*1 CN351 FFC CONNECTOR HLEM32S-1 HLEM30S-1 PWM2156 PWM2153 *1 These Parts are used for PD-M426/KUXJ/2, KCXJ/2 and RDXJ/2. Refer to page 11 on the service manual RRV1868. *2 This Part is used for PD-M426/WPWXJ/2. Refer to page 11 on the service manual RRV1868. FUNCTION BOARD ASSY PWZ2768 and PWZ2769 are constructed the same except for the following: MarkSymbol and Description Remarks Part No. CN701 FFC CONNECTOR 9607S-32F 9607S-30F REMOTE SENSOR SBX1785-51 Not used PWZ2769 PWZ2768
