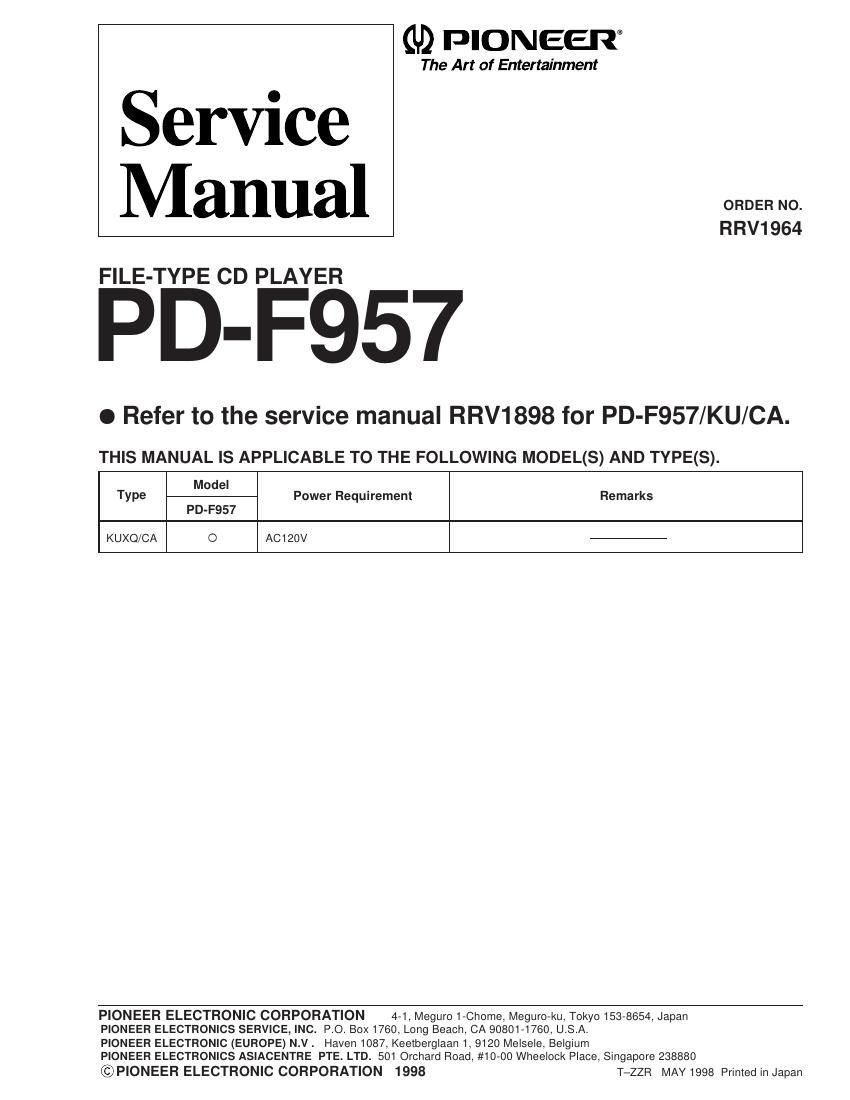

Pioneer pdf 957 service manual

Page 1

PD-F957 2 PACKING P3-6 Operating Instructions(English) PRB1264 PRB1273 P3-11 Packing Case PHG2304 PHG2329 P3-12 Mirror Mat Z23-020 Not used P3-12 Packing Sheet Not used PHF1001 EXTERIOR P6-18 Rear Base PNA2405 PNA2441 P6-21 Back Fence PNW2671 PNW2848 P6-26 Hood Base PNW2633 PNW2847 P6-35 Disc Rack PNW2632 PNW2845 P6-36 Mecha Base PNW2639 PNW2851 P6-50 Operation Panel PNW2786 PNW2861 P6-52 Hood PNW2732 PNW2850 NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 .........................................................................RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F 7 CONTRAST TABLE KUXQ/CA and KU/CA types are constructed the same except for the following: Ref. No.Remarks KU/CA type KUXQ/CA typePart No. Mark Symbol and Description CONTRAST OF MISCELLANEOUS PARTS
