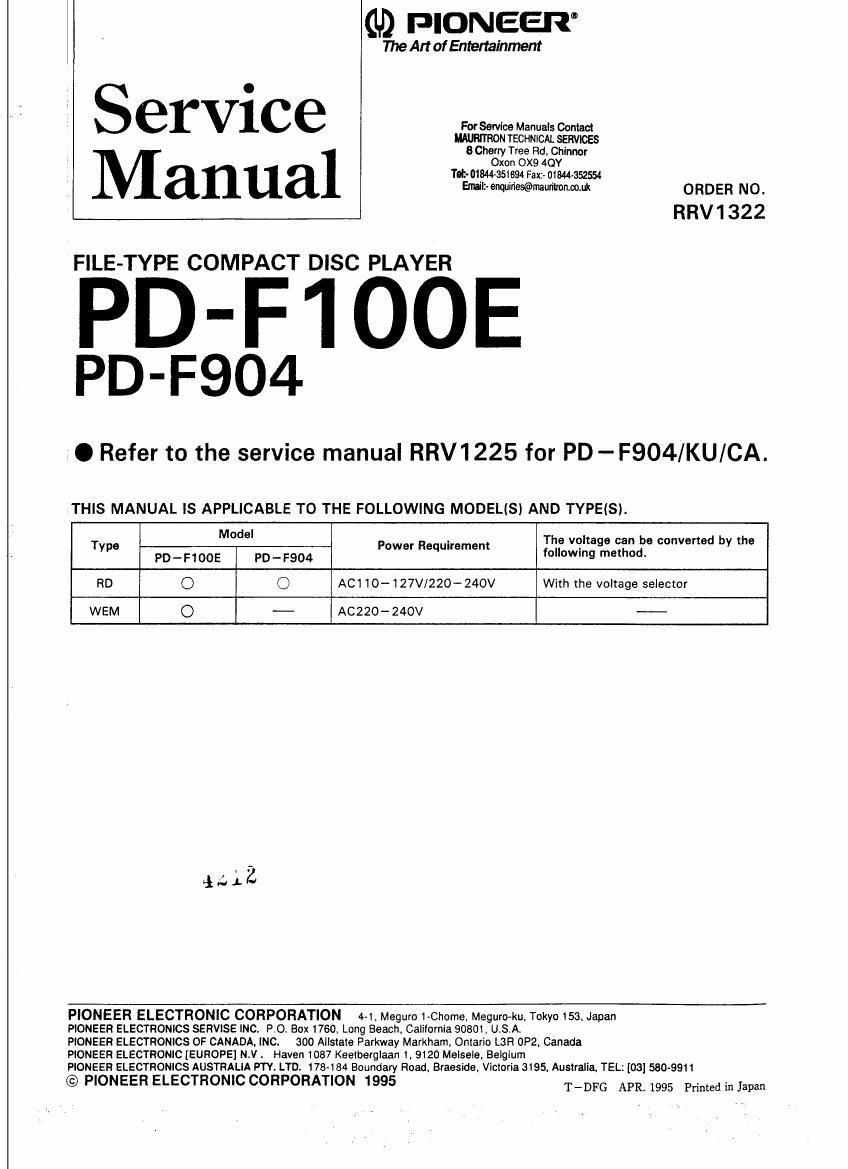

FILE-TYPE COMPACT DISC PLAYER

PD-F1OOE

PD-F904

.0 Refer to the service manual RRV1225 for PD-F904/KU/CA.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEISI.

T pa Model Power Requirement The voltage can be converted by the
y PD-F1ooe PD-F904 following method.
RD 0 O AC110-127V/220- 240V With the voltage selector
WEM O -- AC220-240V -
aéiz

PIONEER ELECTRONIC CORPORATION 4-1. Meguro I»Chome. Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVISE INC. P.O. BOX 1760, Long Beach, California 90801, U.S.A.

PIONEER ELECTRONICS OF CANADA, INC. 300 AIIstate Parkway Markham, Ontario L3H 0P2, Canada

PIONEER ELECTRONIC [EUROPE] N.V . Haven 1087 Keetberglaan 1. 9120 Melsale. BeIgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-154 Boundary Road, Braeside, VICIOI'IS 3195. Australia, TEL: [03] 580-9911

© PIONEER ELECTRONICCORPORATION 1995 Hm APR. 1995 Pmdinkm

Page 2

D 100E, PD-F904

1. SAFETY INFORMATION

- (FOR EUROPEAN MODEL ONLY)

VARO!

AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA
NAKYMATTOMALLE LASERSATEILYLLE.
ALA KATSO SATEESEEN.

. LASER
Kuva i
"ADVERSEL:

USYNLIG LASERSTFIALING veo ABNING
NAR SIKKERHEDSAFBRYDERE ER UDE AF
FUNKTION UNDGA UDSAETTELSE FOR
STRALING,

VARNING!
OSVNLIG LASERSTRALNING NAFl DENNA
DEL An OPPNAD OCH SPARREN
AR URKOPPLAD. BETRAKTA EJ STRALEN.

Lasersaleilyn
varoitusmarkki

-WARNING ! -~
DEVICE INCLUDES LASER DIODE WHICH
EMlTS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS T0 EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS i.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUTED PERSON.

LASER DIODE CHARACTERISTICS -
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 < 785 nm

LASER

Picture 1
Warning sign lor
laser radiation

(Rear Panel Inner)

we:

mun. .) mu.

LABEL CHECK (PD-F100E/WEM Only)

IRear Panel Outer)

CLASS 1
LASER PRODUCT

W" 3" (Rear Panel Inner)

Amuse
Inns mum-Mn M but u m u:-
unin «- Ill » mm-
m Mu: u:- um:
I
«Imam mums m u v- m
mmmmm sum my mm mm-
mm-

1. Laser Interlock Mechanism

Additional Laser Caution

The position of the switch [ Leaf switch lVSKlOl lion the
LOADING BOARD ASSV ) for detecting loading state is
detected by the system microprocessor, and the design
prevents laser diode oscillation when the switch is not on
CLMP terminal side {CLMP signal is OFF or high level).
Thus, the interlock will no longer function if the switch is
deliberately set to CLMP terminal side. (low level)

The interlock also does not function in the test mode.
Laser diode oscillation will continue, if pin 1 of M51593FP
(IC10l) on the PRE-AMP BOARD ASSY mounted on the
pickup assembly is connected to GND, or pin 19 is
connected to low level (ON), or else the terminals of 0101
are shorted to each other (fault conditionlt

2. When the cover is opened, close viewing of the objective

lens with the naked eye will cause exposure to a Class 1
laser beam,

*: Refer to page 29 in the service manual RRV1225 for

PD-F904/KU/CA.
