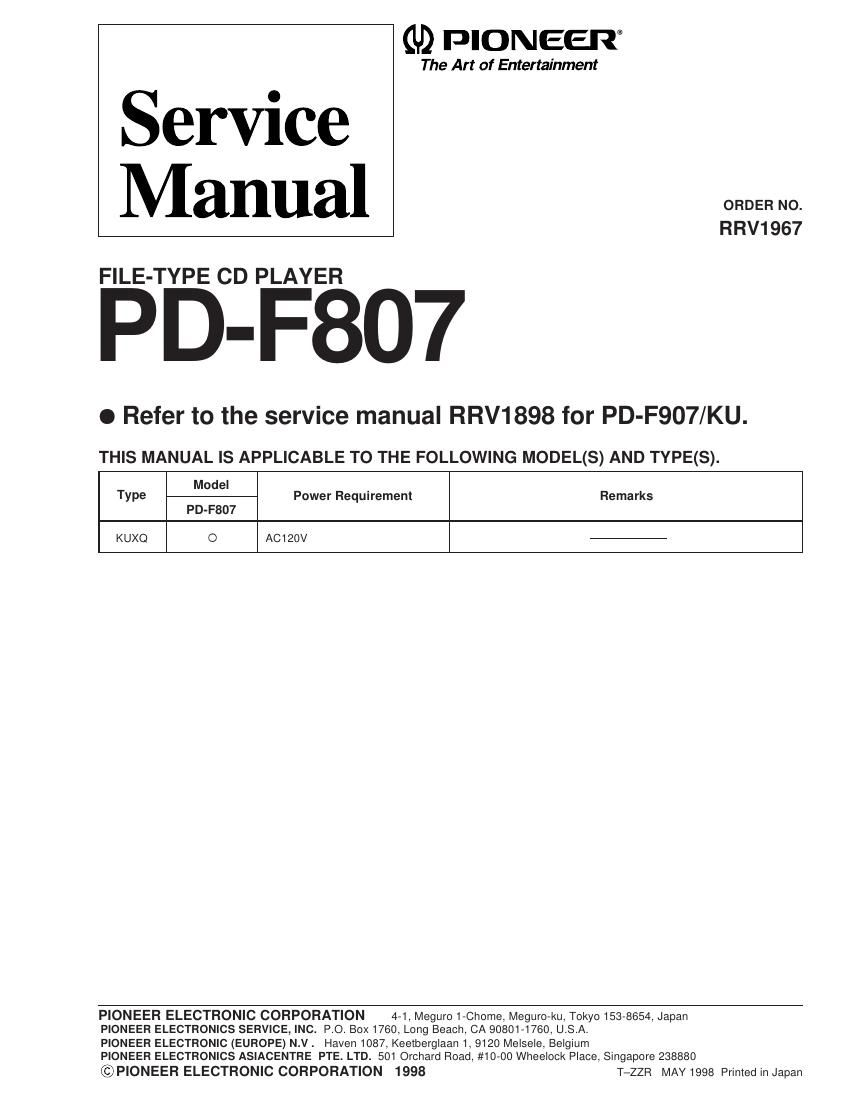

pioneer pdf 807 service manual

Extracted text from pioneer pdf 807 service manual (Ocr-read)


Page 1

PD-F807 2 NSP MOTHER BOARD ASSY PWM2119 PWM2124 P6-4 NSP SWITCH BOARD ASSY PWZ3432 PWZ3434 PACKING P3-3 Remote Control Unit (CU-PD080) PWW1132 Not used P3-4 Battery Cover AZA7204 Not used P3-6 Operating Instructions(English) PRB1263 PRB1275 P3-8 Polyethlene Bag Z21- 038 Not used P3-11 Packing Case PHG2285 PHG2332 P3-12 Mirror Mat Z23- 020 Not used P3-12 Packing Sheet Not used PHF1001 P3-13 NSP Battery (R6P,AA) VEM- 013 Not used EXTERIOR P6-18 Rear Base PNA2389 PNA2445 P6-21 Back Fence PNW2671 PNW2848 P6-26 Hood Base PNW2633 PNW2847 P6-35 Disc Rack PNW2632 PNW2845 P6-36 Mecha Base PNW2639 PNW2851 P6-50 Operation Panel PNW2773 PNW2862 P6-52 Hood PNW2732 PNW2850 NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 .........................................................................RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F Ref. No.Remarks PD-F907/KU PD-F807/KUXQPart No. Mark Symbol and Description ASSEMBLIES C752 CKCYF103Z50 Not used Remote receiver unit GP1U27X Not used Mark Symbol and DescriptionPart No. PWZ3432 PWZ3434Remarks SWITCH BOARD ASSY PWZ3434 and PWZ3432 are constructed the same except for the following: CONTRAST OF MISCELLANEOUS PARTS O CONTRAST TABLE PD-F807/KUXQ and PD-F907/KU are constructed the same except for the following: CONTRAST OF PCB ASSEMBLIES
