Pioneer pdf 606 service manual
This is the 44 pages manual for pioneer pdf 606 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdf 606 service manual (Ocr-read)
Page 1

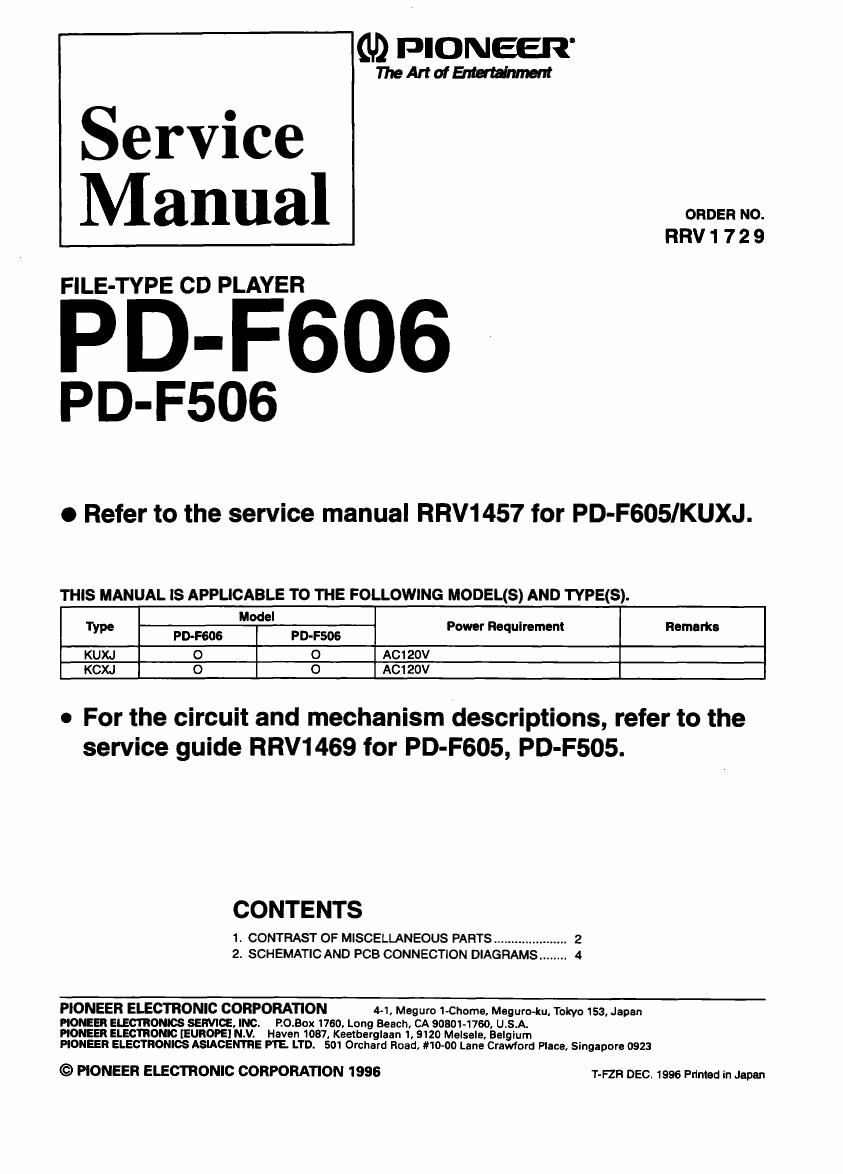

(U) PIONEER'
TheArtofEflUanent
Service
Manual
RRV1729
FILE-TYPE CD PLAYER
PD-F606
PD-F506
0 Refer to the service manual RRV1457 for PD-F605lKUXJ.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
I
Type PD-Fsos Mode P D-FSOG Power Requirement Remarks
KUXJ O 0 A01 20V
KCXJ O O AC120V
- For the circuit and mechanism descriptions, refer to the
service guide RRV1469 tor PD-F605, PD-F505.
CONTENTS
1. CONTRAST 0F MISCELLANEOUS PARTS ..................... 2
2. SCHEMATIC AND PCB CONNECTION DIAGRAMS ........ 4
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chorne, Maguro-ku. Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. ROBOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRON!) [EUROPE] N.V. Haven 1087, Keetberglaan 1, S120 Melsale, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE LTD. 501 Orchard Road, #lO-DO Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 1-an DEC. 1996 Printed in Japan
