Pioneer pdf 507 service manual

This is the 10 pages manual for pioneer pdf 507 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 10
pioneer pdf 507 service manual

Extracted text from pioneer pdf 507 service manual (Ocr-read)

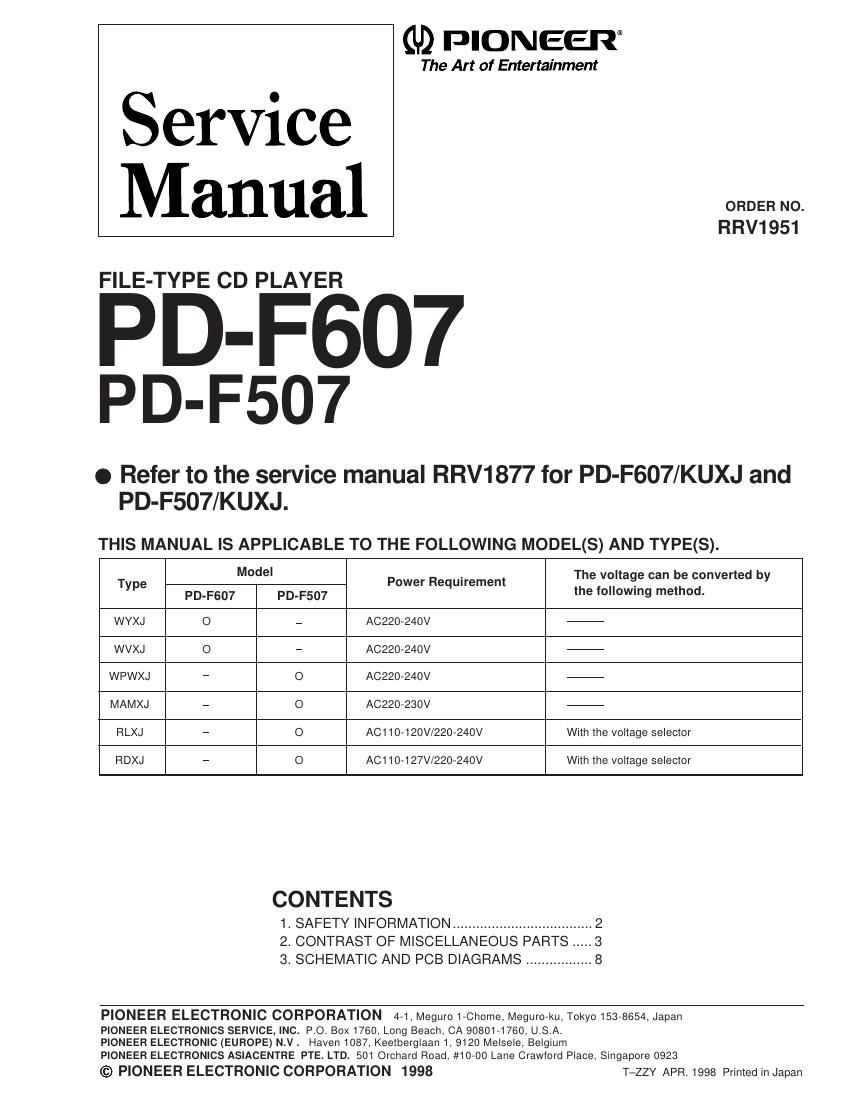

Page 1

(U) PIONEFJT

The Art of Entertainment

Service
Manual

RRV1951

FILE-TYPE CD PLAYER

PD-F607
PD-F507

0 Refer to the service manual RRV1877 for PD-F607/KUXJ and
PD-F507/KUXJ.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

M d I
Type 0 e Power Requirement The voltage can be converted by
PD-F607 PD-F507 the iollowmg method.
WYXJ O - A0220-240V 7
WVXJ O 7 A0220-240V 7
WF'WXJ - O ACZ20-240V 7
MAMXJ - O ACZ20-230V -
RLXJ 7 O AC110-120V/220-240V With the voltage selector
RDXJ 7 O AC110-127V/220-24DV With the voltage selector
CONTENTS
1. SAFETY INFORMATION .................................... 2
2. CONTRAST OF MISCELLANEOUS PARTS ..... 3
3. SCHEMATIC AND PCB DIAGRAMS ................. 8

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. PO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #1000 Lane Crawlord Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1998 T-ZZY APR. 1998 Primed in Japan

Page 2

PD-F607, PD-F507
1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual

do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been

trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may

void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.
IMPORTANT

THIS PIONNER APPARATUS CONTAINS

LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS

SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS 7
MAXIMUM OUTPUT POWER :5 mw
WAVELENGTH : 7807785 nm

LABEL CHECK (For PD-F607/WYXJ,WVXJ and PD-F507/WPWXJ only)

PD-F607/WYXJ only

vM'tol

ADvAltSEL Antenn- j. saint-tutu: ante-tu-
USYMLIB ussnsnmms VEIJ mums Mn 81mm SAF» ass: on: nun-u nlkynlttmuc
BIMIERE m llDi Ar ammo». humuuyuo. Ru Int-9' uuuun.
urinal unsnnse m simme. mus!

VIJRSICHT! x t n 1 M an d l
UflSlCHTBAflE mimlwttuus mlrr Ans. Winn nEEKEl givgpéfi.§22§'5§u?.'fig :xkoggha?

1an mm) Emu isn man now STMHL Aussmzn! gnu. .j gnu-n.
wwmaa PRWt 233


Additional Laser Caution

1. Laser Interlock Mechanism
The position of the switch (8651) for detecting loading
state is detected by the system microprocessor, and
the design prevents laser diode oscillation when the
switch (8651) is not on CLMP terminal side (CLMP
signal is OFF or high level).
Thus, the interlock will no longerfunction if the switch ($651)
is deliberatery set to CLMP terminal side. (low level)
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 33 of
CXA17SZCQ (IC151) on the MOTHER BOARD ASSY
is connected to GND, or pin 26 of ICBSI (LDON) is
connected to low level (ON), or else the terminals of
0151 are shorted to each other (fault condition).

INVISIBIFEAH-IslgN 2.When the cover is opened, close viewing of the
b' t' | 'th Ih k d '||

RADIATION WHEN OPEN. loféléiseifal";r mint? 6 W 59 W

AVOID EXPOSURE

TO BEAM PRW1018 >l< : Refer to page 25. on the service manual RRV1877.

PD-F607/WVXJ and PD-F507/WPWXJ only
