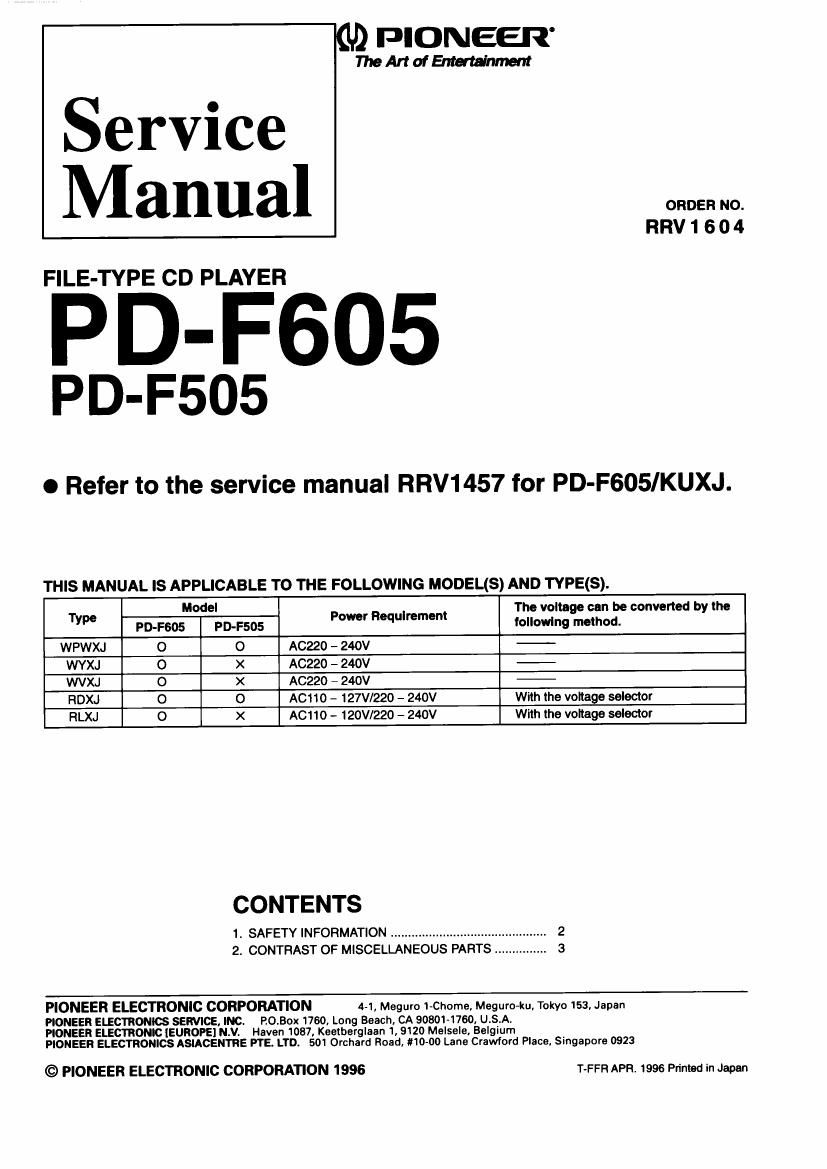

Page 1
PlONEER
"nAndBmmwmnm
Service
Manual
RRV1604
FILE-TYPE CD PLAYER
PD-F605
PD-F505
0 Refer to the service manual RRV1457 for PD-F605/KUXJ.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEHS) AND TYPE(S).
Model The voltage can be converted by the
Type PD-F605 PD_F5°5 Power Requlrement toll owing method.
WPWXJ O 0 A0220 - 240V
WYXJ O X AC220 - 240V -
WVXJ O X A6220 7 240V
RDXJ O O A0110 - 127V/220 - 240v With the voltage selector
RLXJ O X AC110 - 120V/220 - 240V With the voltage selector
1. SAFETY INFORMATION ................................. , 2
2. CONTRAST OF MISCELLANEOUS PARTS . 3
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro~ku. Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. ROBox 1760. Long Beach, CA 908014760, U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place. Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 T-FFR APR. 1996 Printed in Japan
Page 2
PD-F605, PD-F505
1. SAFETY INFORMATION
7 VAROI -
AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA
NAKYMATTOMALLE LASERSATEILYLLE.
ALA KATSO SATEESEEN
LASER
Kuva I
'- ADVERSEL:
USYNLIG LASERSTRALING VED ABNING
NAR SIKKERHEDSAFBRYDEHE ER UDE AF
FUNKTION UNDGA UDSAETTELSE FOR
STRALING.
- VAFINING'
OSYNLIG LASEHSTRALNING NAR DENNA
DEL AR OPPNAD OCH SPARREN
AR URKOPPLAD. BETRAKTA EJ STRALEN
Lasersateilvn
varoitusmerkki
- WARNING!
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TCI EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER LASER
DIODE. Picture 1
Warning srgn tor
laser radiation
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
- LASER DIODE CHARACTERISTICS -
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780-785 nm
LABEL CHECK (for WPWXJ, WVXJ, WYXJ and RLXJ types)
WPWXJ.WVXJ.FIL)UtypssonIy
CAUTION
INVISIBLE LASER
RADIATION WHEN OPEN.
#610}? EXPOSURE
WPWXJ.WVXJ, WYXJ. FILXJIypesofly
.. 1- nun-m. mun
mu... many-mum)!-
yii. MA m mu"...
vmm
Um
"mm in now mm»:
m mam!
cum. t-ncr-xleru-u m a..." m
u an. m, .pmn u Lawns
hum. ., mil"
mm
wmwww
WYXJtypemty
PRWIOIB
Ant/ABEL
minimums no Alums w sum w
m minus
INE'
mum IASHVSMIIIIS nun ANS. m DEIEI
mm Wilma Isw mum smut Ami
wpwxu, WVXJ. ww. RLXlepes onIy
CLASS 1
LASER WI
Additional Laser Caution
l . Laser Interlock Mechanism
The position of the switch (8651) for detecting loading
state is detected by the system microprocessor. and
the design prevents laser diode oscillation when the
switchis (5651) is not on CLMP terminal side (CLMP
signal is OFF or high level).
ThusMeimerlookwillnolongerlumtionitlheswimhlSGfil)
is deliberately set to CLMP terminal side. (low leven
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, it pin 1 ofM51593FP
(lClO1) on the PRE-AMP BOARD ASSY mounted on
the Pickup assembly is connected to GND. or pin 19 is
connected to low level (ON), or else the terminals of
0101 are shorted to each other (fault condition).
2.When the cover is opened, close viewing oi the
objective lens with the naked eye will cause exposure
to a Class 1 laser beam
mu-
at: : Refer to page 23 on the service manual FIRV1457.
