Pioneer pdf 407 service manual
This is the 7 pages manual for pioneer pdf 407 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pdf 407 service manual (Ocr-read)

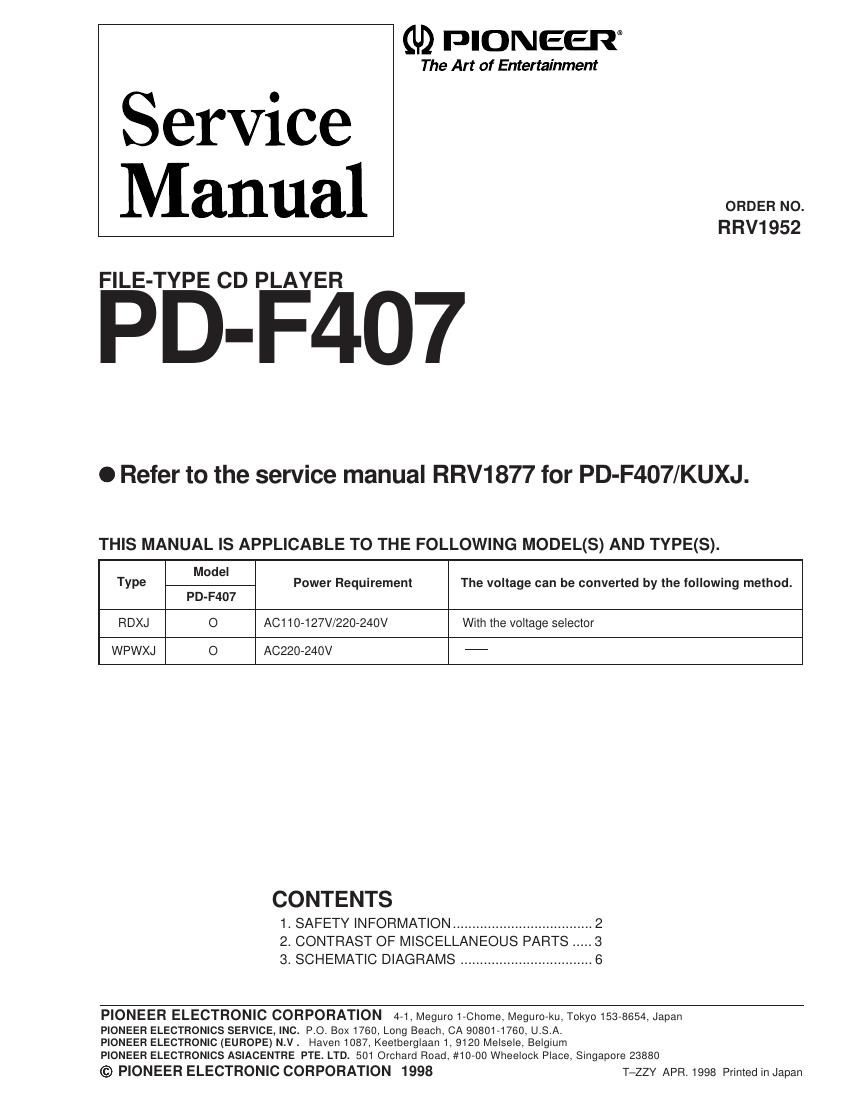

Page 1
PD-F407 2 1. SAFETY INFORMATION Additional Laser Caution 1. Laser Interlock Mechanism The position of the switch (S651) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S651) is not on CLMP terminal side (CLMP signal is OFF or high level). Thus, the interlock will no longer function if the switch (S651) is deliberatery set to CLMP terminal side. (low level) The interlock also does not function in the test mode ]. Laser diode oscillation will continue, if pin 33 of CXA1782CQ (IC151) on the MOTHER BOARD ASSY is connected to GND, or pin 26 of IC351 (LDON) is connected to low level (ON), or else the terminals of Q151 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. ] : Refer to page 25. on the service manual RRV1877. This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. LABEL CHECK For ( PD-F407/WPWXJ only) REAR IMPORTANT THIS PIONNER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER : 5 mw WAVELENGTH : 780-785 nm
Page 2
PD-F407 3 2. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing,be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 .........................................................................RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F CONTRAST TABLE RDXJ,WPWXJ and KUXJ are constructed the same except for the following : Part No. Remarks KUXJ RDXJ WPWXJ Ref. No.MarkSymbol and Description PD-F407 ASSEMBLIES P5-1 MOTHER BOARD ASSY PWM2189 PWM2190 PWM2191 NSP SUB BOARD ASSY PWX1534 PWX1535 PWX1535 P7-1 DISPLAY BOARD ASSY PWZ3610 PWZ3607 PWZ3607 P7-16 NSP POWER SW BOARD ASSY PWZ3622 PWZ3623 PWZ3623 PACKING P3-1 Operating Instructions (English) PRB1265 Not used PRB1265 P3-1 Operating Instructions Not used PRE1267 Not used (English/Spanish/Chinese) P3-10 Packing Case PHG2293 PHG2295 PHG2295 P3-12 NSP Warranty Card ARY1051 Not used PRY1003 CD Liner Notes File Not used PHN1051 PHN1051 No.1 Index Label Sheet (25) Not used PRW1422 PRW1422 No.2 Caution 220V Label Not used ARR1003 Not used No.3 Polyethylene Bag Not used Z21-038 Z21-038 No.4 (230 x 340 x 0.03) EXTERIOR P5-2 Cord Stopper CM-22C CM-22B CM-22B P5-4 AC Power Cord PDG1015 PDG1056 ADG1123 P5-5Power Transformer (AC120V) PTT1237 Not used Not used P5-5Power Transformer (AC220-240V) Not used Not used PTT1236 P5-5Power Transformer Not used PTT1238 Not used (AC110-127V/220-240V) P5-8 Rear Base PNA2395 PNA2396 PNA2397 P5-42 65 Label ORW1069 Not used Not used Insulator (Front Side) Not used PNW2766 PNW2766 No.5 Caution Label Not used Not used PRW1018 No.6 FRONT PANEL SECTION P7-15 Control Panel PNW2778 PNW2780 PNW2780 P7-20 Rubber Sheet AEB1111 Not used Not used LED Lens Not used PNW2019 PNW2019 No.7 Note: The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to ÒEXPLODED VIEWSÓ. For ASSEMBLIES, Refer to Ò CONTRAST OF PCB ASSEMBLIESÓ and Ò3. SCHEMATIC DIAGRAMSÓ.
