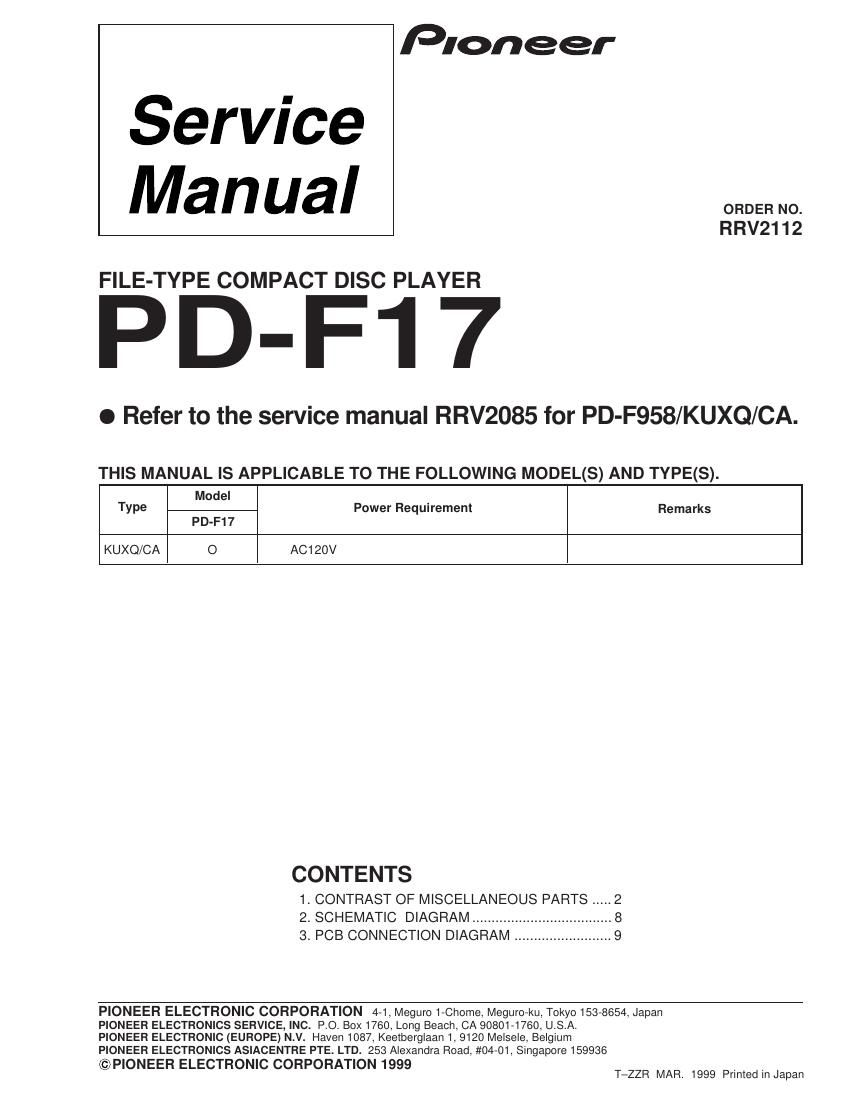

Page 1

Service
Manual

Pioneer

ORDER NO.
RRV2112

FILE-TYPE COMPACT DISC PLAYER

PD-F17

0 Refer to the service manual RRV2085 for PD-F958/KUXQ/CA.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
Type Power Requirement Remarks
PD-F17
KUXQ/CA O AC120V

CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ..... 2
2. SCHEMATIC DIAGRAM .................................... 8
3. PCB CONNECTION DIAGRAM ......................... 9

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 MelseIe, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER ELECTRONIC CORPORATION 1999

T-ZZR MAR. 1999 Printed in Japan

Page 2

PD-F17

1. CONTRAST OF MISCELLANEOUS PARTS


NOTES .' 0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, he sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex. 1 When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J: 5%,andK=10%).
5609»56x10l->561. ..RDI/4PUElEEJ
47kQ->47><103->473 RBI/4PUEEIEJ
0.5Q->R50 RN2H@-@K
lQ->1R0... RS1PEE@K
Ex. 2 When there are 3 eflective dig such a n high prec ion metal film resistors).
5.62kQ->562X10->5621 ........................................... RN1/4PC-IEEF
I CONTRAST TABLE
PD-F17/ KUXQ/CA and PD»F958/KUXQ/CA are constructed the same except for the following:
R f Part N0.
N: Mark Symbol and Description PD-F958/ PD-F17/ Remarks
KUXQ/CA KUXQ/CA
EXTERIOR
NSP MOTHER BOARD ASSY PWM2269 PWM2272
P6-1 A MAIN BOARD ASSY PW23895 PW23898
P6-2 A POWER BOARD ASSY PWZ3900 PWZ3902
P6-3 DISPLAY BOARD ASSY PW23904 PW23905
P6-4 NSP SWITCH BOARD ASSY PW23907 PW23908
NSP HEADPHONE BOARD ASSY Not used PWZ3911 No.1
NSP COAXIAL OUTPUT BOARD ASSY Not used PW23917 No.2
P6-14 Foot Assy RE01263 Not used
P6-1 8 Rear Base PNA2452 PNA2502
P6-20 Insulator PNW2766 PNW2766
()9) (x4)
P6-46 Name Plate PAM1776 PAN1376
P6-50 Operation Panel PNW2869 PNW2918
P6-52 Hood PNW2865 PNW2919
Headphone Knob Not used PAC1707 No.3
LED Lens Not used PNW2019 No.4
SR Angle Not used PNB1192 No.5
PACKING
P3-5 NSP Warranty Card ARY7023 ARY7007
P3-7 Operating Instructions (English) PRB1278 PRB1289
P3-11 Packing Case PHG2337 PHG2374

Note : o The numbers in the remarks Column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS".
