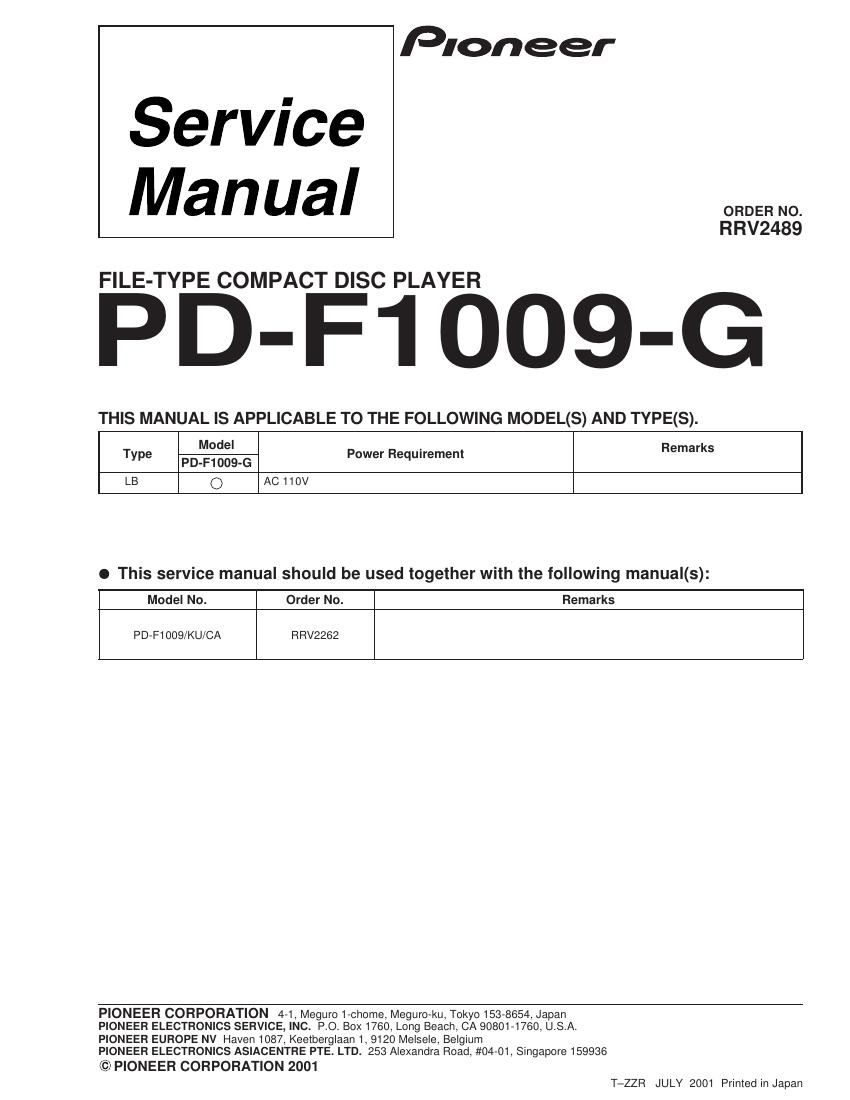

Pioneer pdf 1009 g service manual

Page 1

PD-F1009-G 2 PACKING P5- 3 Packing Case PHG2397 PHG2448 P5- 6 Operating lnstructions(English) PRB1300 Not used P5- 6 NSP Operating lnstructions Not used ** : Local procurement P5-12 NSP Warranty Card ARY7045 Not used EXTERIOR P7- 8 Bonnet Case PYY1255 PYY1272 P7- 9 Rear Base PNA2529 PNA2574 P7-10 Insulator AMR7198 PNW2766 P7-12 65 Label ARW7050 Not used P7-19 Caution Label VRW1817 PRW1594 P7-21 Screw FBT40P080FZK FBT40P080FNI FRONT PANEL ASSY P13- 5 MODE Button PAC1994 PAC2043 P13- 6 PLAY Button PAC1995 PAC2044 P13- 7 Jog Dial PAC1882 PAC1968 P13- 8 ENTER Button PAC1883 PAC1969 P13- 9 Name Plate PAM1776 PAM1779 P13-10 Display Window PAM1822 PAM1823 P13-16 Operation Panel PNW2958 PNW3014 P13-23 Power Button VNK4527 PAC2045 P13-24 Rubber Sheet AEB1111 Not used 1. CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST TABLE PD-F1009-G/LB and PD-F1009/KU/CA are constructed the same except for the following: Ref. No.Remarks PD-F1009 PD-F1009-G /KU/CA /LBPart No. Mark Symbol and Description NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model.
