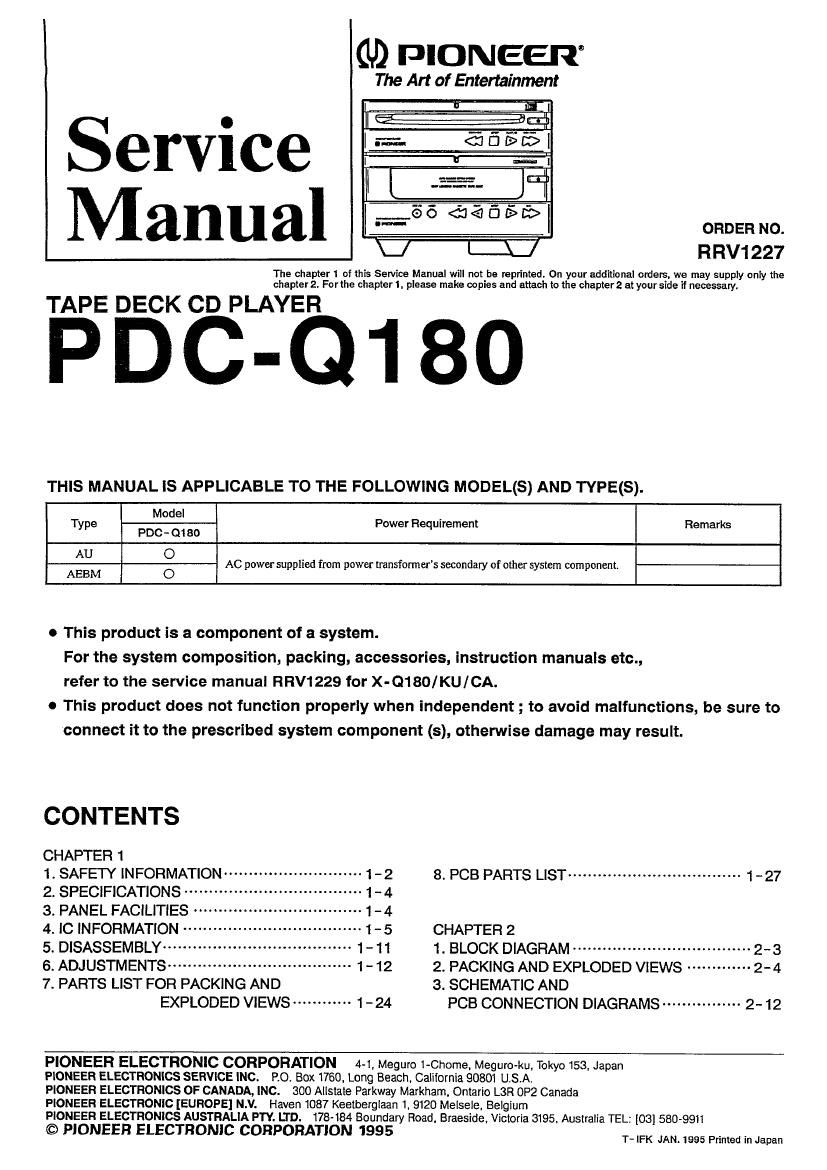

Page 1
GD PIONEER
The Art of Entertainment
Service
Manual
ORDER NO.
RRV1 227
The chapter 1 of this Service Manual will not be reprinted. On your additional orders, we may supply only the
chapter 2. Fertile chapter 1. please make copies and attach to the ohapterz at your side if necessary.
TAPE DECK CD PLAYER
PDC-Q180
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model .
Type Power Requirement Remarks
PDC- Q1 80
AU 0 ,
AC power supplied from power transformers secondary of other system component.
AEBM O
0 This product is a component of a system.
For the system composition, packing, accessories, instruction manuals etc.,
refer to the service manual RRV1229 for X-Q180/ KU/ CA.
I This product does not function properly when independent ; to avoid malfunctions, be sure to
connect it to the prescribed system component (5), otherwise damage may result.
CONTENTS
CHAPTER 1
1_ SAFEI'Y INFORMATION ............................ 1-
2- SPECTFICATIONS .................................... 1-
3. PANEL FACILITIES ~
4. IC INFORMATION .................................... 1-
5_ DISASSEMBLY ...................................... 1-11
6. ADJUSTMENTS ..................................... 1-12
7. PARTS LIST FOR PACKING AND
EXPLODED VIEWS ----------- 1- 24
8. PCB PARTS LIST ................................... 1-27
CHAPTER 2
1. BLOCK DIAGRAM .................................... 2-3
2. PACKING AND EXPLODED VIEWS ------------ 2- 4
3. SCHEMATIC AND
PCB CONNECTION DIAGRAMS ---------------- 2- 12
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. PO. Box 1780. Long Beach, Calilomia 90801 USA.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham. Ontario L3H 0P2 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keelberglaan 1. 9120 Melsele, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road. Braeside. Victoria 3195. Australia TEL: [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1995
T-lFK JAN. 1995 Primed in Japan
Page 2
PDC - 0180
CHAPTER 1
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-lt-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should
not risk trying to do so and refer the repair to a qualified service technician.
WARNING
Lead in solder used in this product ls listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health 8: Safely Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain land in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols JEE- (fast operating fuse) and/or B- (5low operating fuse) on PCB Indicate that replacement pans
must be of identical designation.
REMAROUE
(POUR MODELE CANADIEN SEULEMENT)
Les symboles de fusible {EE- (fusible de type raplde) eru E- (fusible de type lent) sur CCl lndiquent que les
pieces de remplacement doivent avoir la meme designation.
iFOR USA MODEL ONLY)
1.SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
2.?RODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.l. Plug
the AC line cord of the appliance directly into a 120V
AC BOHz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.
Reading should
Leakage not be above
Device current 0-5'TlA
under tester
test *
Test all
exposed metal
surfaces
@ Also test with
plug reversed Earth
[Using AC adapter ground
pth as 'equired)
AC Leakage Test
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vol-
tage, wattage. etc. Replacement parts which have
these Special safety characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
