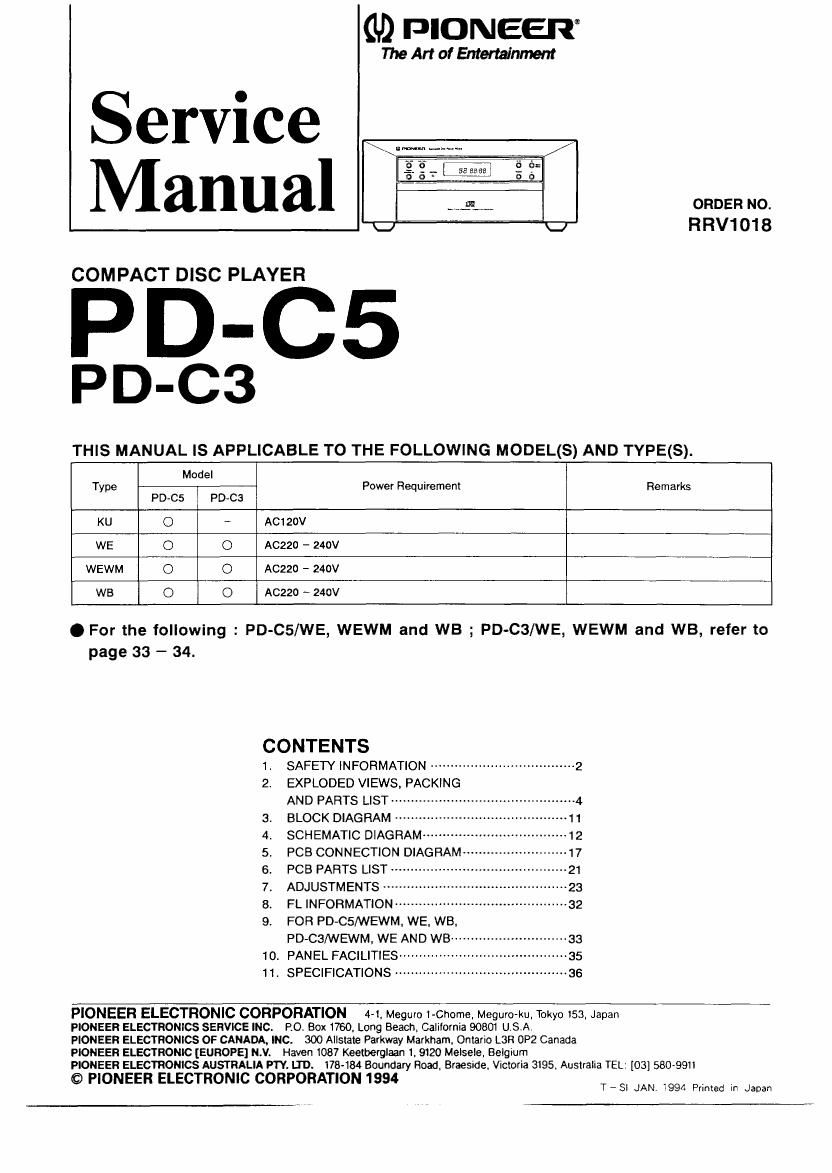

Page 1

(ID mom-zen

TheArIofEMerm'nment

Service _ .,
Manual E

RRV1018

COMPACT DISC PLAYER

PD-C5
PD-C3

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
Type Power Requirement Remarks
PD-Cs PD-Ca
KU 0 ~ AC120V
WE O O A0220 - 240v
WEWM O O A0220 - 240v
W8 0 O Ac220 - 240v

O For the following : PD-CS/WE, WEWM and WB ; PD-C3/WE, WEWM and WB, refer to
page 33 - 34.

CONTENTS
1' SAFETY INFORMATION .................................. 2
2 EXPLODED VIEWS. PACKING

AND PARTS LlST-~~
3 BLOCK DIAGRAM --
4 SCHEMATIC DIAGRAM -----
5. PCB CONNECTION DIAGRAM-
5. PCB PARTS LIST
7
s
9

ADJUSTMENTS -'

FL INFORMATION--

FOR PDCSIWEWM WE, WB.

PD-CS/WEWM, WE AND WB---- ----- 33
1D. PANEL FACILITIES-~~~ ~-
11. SPECIFICATIONS -----

PIONEER ELECTRONIC CORPORATION 4-1. Meguro I-Chome. Meguro-ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC PO. Box 1760, Long Beach, Calilomia 90801 U,S.A.

PIONEER ELECTRONICS OF CANADA, INC. 300 AllsIaIe Parkway Markham. Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan I, 9120 Melsele, BeIqum

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 8-184 Boundary Road, Braeside. VicIoria 3195. AustraIia TEL: [03] 560-9911
© PIONEER ELECTRONIC CORPORATION 1894

T-SI JAN, I994 Primed In Japan

Page 2

PD-C5, PD-CS

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should
not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health a Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols -EEI- (fast operating fuse) and/or EE- (slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.

FiEMAROUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible E (fusible de type rapide) eru a (fusible de type lent) sur CCI indiquent que les
pieces de remplacement doivent avcir la méme designation.

(FOR USA MODEL ONLY)
1.$AFETY PRECAUTIONS ANY MEASUREMENTS NOT WITHIN THE LIMITS
The following check should be performed for the OUTLINED ABOVE ARE INDICATIVE OF A P0-
continued protection of the customer and service TENTIAI- SHOCK HAZARD AND MUST BE COR'
technician. RECTED BEFORE RETURNING THE APPLIANCE TO
LEAKAGE CURRENT CHECK THE CUSTOMER.
Measure leakage Current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage 2- PRODUCT SAFETY NOTICE
current tester sueh as Simpson Model 2292 or Many electrical and mechanical parts in the appli
equivalent between the earth ground and all exposed ance have special safety related characteristics. These
metal parts of the appliance (input/output terminals, are often not evident from Visual inspection nor the
screwheads, metal overlays, control shaft, etc.). Plug protection afforded by them necessarily can be ob,
the AC line cord of the appliance directly into a 120V tained by using replacement components rated for vol-
AC 60H: outlet and turn the AC power switch on. Any tage, wattage, etc. Replacement parts which have
current measured must not exceed 0.5mA. these special safety characteristics are identified in

this Service Manual.
Reading should

Electrical components having such features are
identified by marking with a A on the schematics and
Leakage nm be above on the parts list in this Service Manual. .
mm o SmA The use of a substitute replacement component which
tester dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
9? 9 53 PlONEER Service Manual. A subscription to, or ad-
lUsrng AC adapter ground

plug as ,equired, ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.

Device
under

Test all
exposed metal
surfaces

Also test wrth

AC Leakage Test
