Pioneer pd 7100 service manual
This is the 77 pages manual for pioneer pd 7100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pd 7100 service manual (Ocr-read)

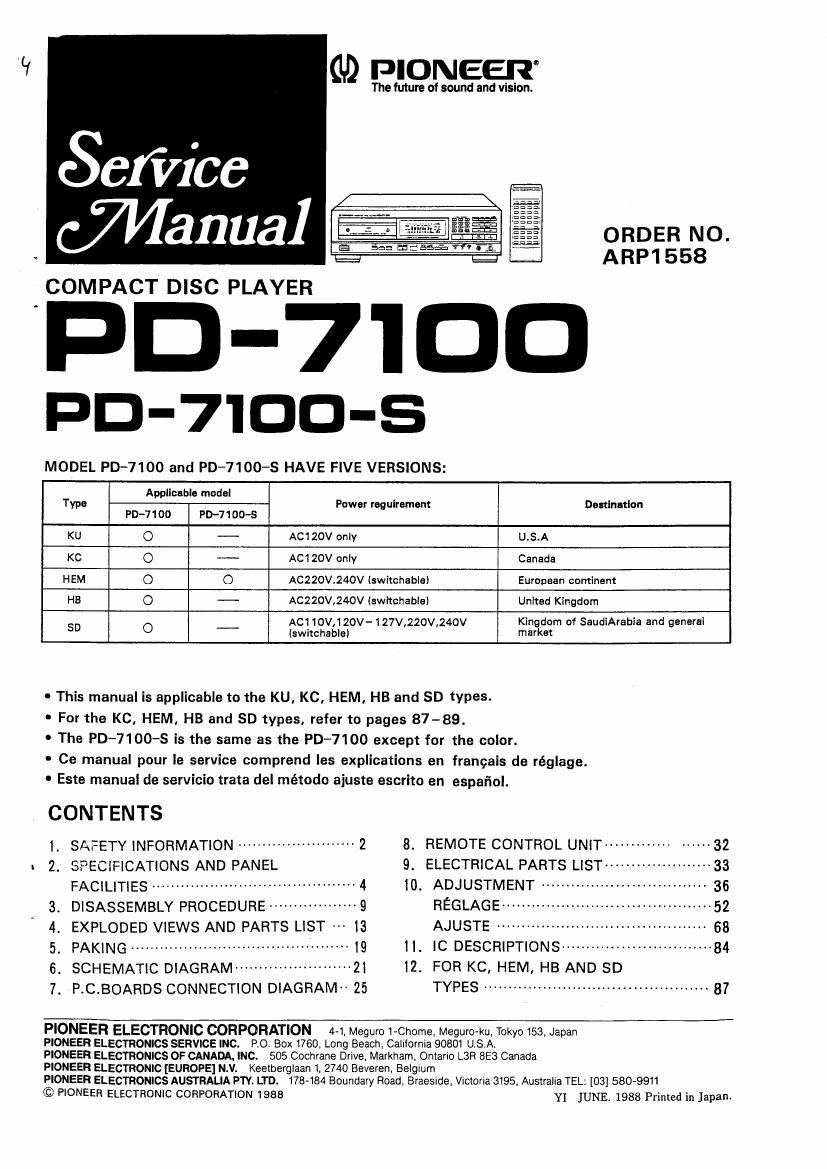

Page 1
(U) PIONEER
The future of sound and vision.
Self/ice
ORDERNO.
ARP1558
COMPACT DISC PLAYER
P D - 7 1 D D - 5
MODEL PD-TIOO and PD-7100-S HAVE FIVE VERSIONS:
Applicable model
Type Power requirement Damnation
ID-71 00 PD-7IOO-S
KU O - AC120V only U.S.A
KC 0 ~- ACI 20V only Canada
HEM O O AC220V,24OV (switchable) European continent
H5 0 - AC220V,240V (switchable) Unlted Kingdom
SD 0 __ ACT 10V,120V- 127V,220V,24OV Kingdom of SaudiArahIa and general
(switchabIe) market
- This manual is applicable to the KU, KC, HEM, HB and SD types.
' For the KC, HEM, HB and SD types, refer to pages 87-89.
C The PD-7100-S is the same as the PD-7100 except for the color.
' Ce manual pour le service comprend Ies explications en franeais de réglage.
' Esie manual de servicio trata del método ajuste escrito en espafiol.
CONTENTS
I. SAFETY INFORMATION ------------------ 2
2. SPECIFICATIONS AND PANEL
FACILITIES .......................................... 4
3. DlSASSEMBLY PROCEDURE """"""""""""" 9
4. EXPLODED VIEWS AND PARTS LIST I3
5' PAKING ..................................... ........ '9
G. SCHEMATIC DIAGRAM """""""""""""" 2i
7. F.C.BOARDS CONNECTION DIAGRAM 25
8. REMOTE CONTROL UNIT ~~~~~~~~~~
9. ELECTRICAL PARTS LIST~~~
II).
II.
I2.
ADJUSTMENT ....... , 36
REGLAGE .................... 52
AJUSTE .............. .. ......... 68
IC DESCRIPTIONS .............................. 84
FOR KC, HEM, HB AND SD
TYPES ............................................. 37
PIONEER ELECTRONIC CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. PO. Box 1760, Long Beach, California 90801 USA.
PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive, Markham, Ontario L3H 8E3 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Keeiberglaan 1, 2740 Beveren, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road. Braeside Victoria 3195, Ausxralia TEL: [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1988
YI JUNE. 1988 Printed in Japan.
Page 2
PD-7TDD
1. SAFETY INFORMATION
y-(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the continu-
ed protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe. conduit, etc.) by connecting a leakage current taster
such as Simpson Model 229-2 or equivalent between the earth
ground and all exposed metal pans of the appliance (input/
output terminals. screwheads, metal overlays, control shaft,
etc.). Plug the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any current
measured must not exceed 0.5 mA.
ii:
Leakage
culmnt
tenar
Reading should
not be above
0.5 mA
Device
under
tau
Tait III
exposed metal
surtacan
Qt Twire cord
6) Also last with
plug reversed _
(Using AC adapter ground
plug as required)
AC Leakage Test
ANY MEASUREMENTS NOT WITHIN THE LIMITS OUT-
LINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK
HAZARD AND MUST BE CORRECTED BEFORE RETURNING
THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOT ICE
Many electrical and mechanical parts in the appliance have
special safety related characteristics. These are often not evi»
dent from visual inspection nor the protection afforded by
them necessarily can be obtained by using replacement com~
ponents rated for voltage, wattage, etc. Replacement parts
which have these special safety characteristics are identified
in this Service Manual.
Electrical components having such features are identified
by marking with a A on the schematics and on the parts list in
this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in this
Service Manual, may create shock, fire, or other hazards.
Product Safety is continuously under review and new in-
structions are issued from time to time. For the latest informa-
tion, always consult the current PIONEER Service Manual. A
subscription to, or additional copies oi, PIONEER Service
Manual may be obtained at a nominal charge from PIONEER.
'IFOR EUROPEAN MODEL ONLY)
VAROITUS!-~-
LAITE SISALTAA LASERDIODIN. JOKA
LAHETTAA NAKYMATONTA, SlLMlLLE
VAARALLISTA INFRAPUNASATEILYA
LAITTEEN SISALLA ON LASERDIODIN
LAHEISYYOESSA KUVAN I. MUKAINEN
VAROITUSMERKKI,
LASER
Kuva 1
Lasersareilvn
varoitusmerkki
ADVERSEL:-
USYNLIG LASERSTRALING VED ABNING
NAR SIKKERHEDSAFBRVDERE ER UDE
AF FUNKTION UNDGA UDSAETTELSE
FOR STRALING.
ViKTIGT---
APARATEN INNEHALLER LASER AV HOGRE
KLASS AN l. INGREPP I APPARATEN BOR
GORAS AV SPECIELLT UTBILDAD PERSONAL.
WARNING!-*---
osvucs INCLUDES LASER moo: wmcu
EMlTS lNVlSIBLE INFRARED RADIA»
TlON WHICH IS DANGEROUS To eves.
THERE ISAWARNING snow ACCORDING LASER
T0 PICTURE 1 meme THE DEVICE
CLOSE TO THE LASER DIODE,
Picture 1
Warning sign lor
laser radiation
IMPORTANT
THlS PIONEER APPARATUS CONTAINS LASER OF
HIGHER CLASS THAN 1. SERVICING OPERATION
OF THE APPARATUS SHOULD BE DONE BY A
SPECIALLV INSTRUCTED PERSON.
%
