Pioneer pd 6500 service manual
This is the 56 pages manual for pioneer pd 6500 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pd 6500 service manual (Ocr-read)

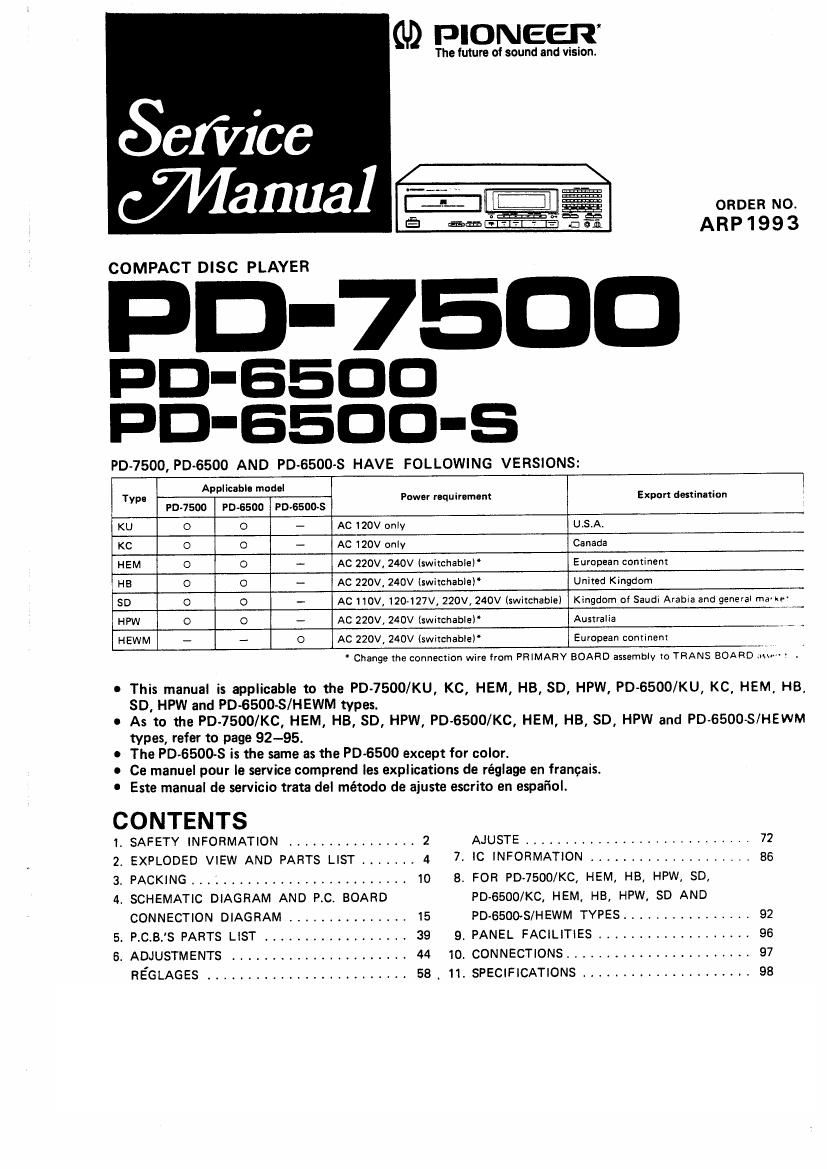

Page 1
QJ) PIONEER
The lmure of sound and vision.
-I_ Q% ORDER NO.
Qatari 4:511 ARP1993
COMPACT DISC PLAYER
D-7EDD
PEI-6500
PD-EECJD-S
PD-7500,PD-6500 AND PD6500-S HAVE FOLLOWING VERSIONS:
Type Applicable model Pawer requiramam Export dasxlnnion
ID-7500 PD-6500 PD-GSDGS
KU O O - AC 120V only U.S.A.
KC 0 O --- AC 120V only Canada
HEM O O - AC 220V, 240V (switchablel European continent
H8 0 O - AC 220V, 240V (switchablel United Kingdom
SD 0 O - AC110V, 120-127V, 220V, 240V (switchable) Kingdom of Saudl Arabia and geneval mav ke
HPW O O - AC 220V, 240V (switchablel' Auslralia 7
HEWM - - 0 AC 220V, 240V lswnchablel' European cominem
Change The connection wire from PRIMARY BOARD assembly to TRANS BOARD .mn w
I This manual is applicable to the PDJSOO/KU, Kc, HEM, HB, SD, HPW, PD-6500/KU, KC, HEM, H8,
SD, HPW and PD-6500~S/HEWM types.
0 As To the PD-7500/KC, HEM, HB, SD, HPW, PD-GSOO/KC, HEM, HB, 30, HPW and PD6500S/HEWM
types, refer to page 92-95.
0 The PD-6500-S is the same as the P116500 except for color.
0 Ce manuel pour le service comprend les explications de réglage en frangais.
O Este manual de servicio trata del método de ajuste escrito en espafiol.
CONTENTS
I. SAFETY INFORMATION ................ 2 AJUSTE ............................ 72
2. EXPLODED VIEW AND PARTS LIST ....... 4 7- lC INFORMATION .................... as
3. PACKING . ..; ....................... 10 5. FOR PD-7500/KC, HEM, Ha. HPW, so,
4. SCHEMATIC DIAGRAM AND P,c. BOARD PD-SSOO/KC, HEM, HB, HPW, so AND
CONNECTION DIAGRAM ............... 15 PD-ssoOS/HEWM TYPES ................ 92
5. P.C.B.'S PARTS LlST .................. 39 9. PANEL FAClLlTlES ................... 95
5. ADJUSTMENTS ...................... 44 10. CONNECTIONS ....................... 97
REGLAGES ......................... 58 . 11. SPECIFICATlONS ..................... 98
Page 2
This service manual is intended for qualified service technicians; it is not
meant for the casual do-it-yourselfer. Qualified technicians have the neces-
sary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to
perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.
WARNING
Lead in solder used in this product is listed by the California Health and Welfare agency as
a known reproductive toxicant which may cause birth defects or other reproductive harm
(California Health & Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in in
solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale
any smoke or fumes produced.
1. SAFETY INFORMATION
[-(FOR U.S.A. MODEL ONLY)
1.SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.l. Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.
'L Reading should
Lealotage not be above
current 0-5mA
tester
Device
under
test
Test all
exposed metal
surfaces
2-wire cord
@ Also rest with
plug reversed Earth
(Using AC adapter ground
plug as reouiredl
AC Leakage Test
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE lNDlCATlVE OF A P0-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the apple
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vol-
tage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PlONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
