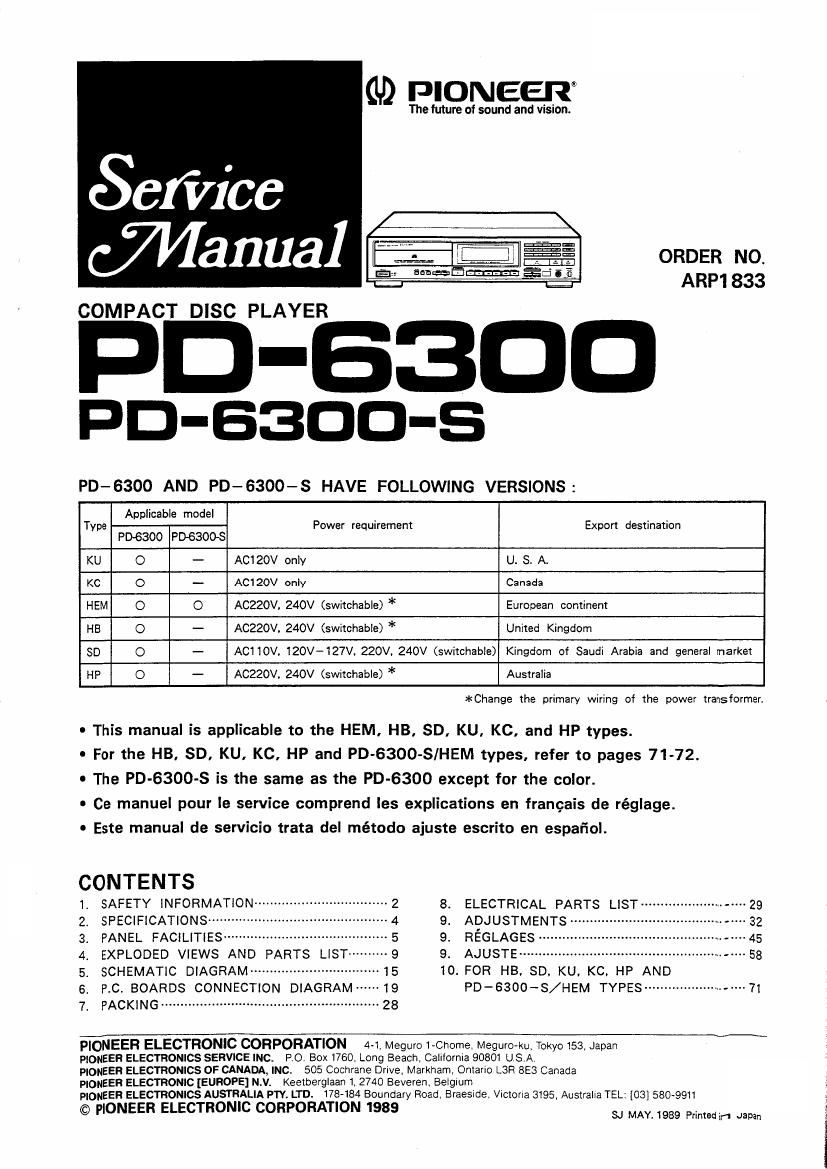

Page 1

PIONEEIT

The future of sound and vision.

m Elfin ORDER NO.
"*=""'"==3 ARP1833

COMPACT DISC PLAYER

D-B3DD

PD-B3DD-S

PD-6300 AND PD-6300-S HAVE FOLLOWING VERSIONS:

Type Applicable model Power requirement Expon destination
PMBOO P063008
KU O - AClZOV only U. S. A.
KC 0 --- AC120V only Canada
HEM O O ACZZOV, 240V (switchable) * European continent
HB O - ACZZOV. 240V (switchable) * United Kingdom
SD 0 - ACHOV. 120V-127V, 220V. 240V (switchable) Kingdom of Saudi Arabia and general market
HP 0 - AC220V. 240v (switchable) * Australia

*Change the primary wiring of the power transformer.

- This manual is applicable to the HEM, HB, SD, KU, KC, and HP types.

- For the HB. SD, KU. KC, HP and PD-6300-S/HEM types, refer to pages 71-72.
0 The PD-6300-S is the same as the PD-6300 except for the color.

0 Ce manuel pour le service comprend Ies explications en frangais de réglage.

- Este manual de servicio trata del método ajuste escrito en espafiol.

CONTENTS

1 SAFETY INFORMATION -------------------------------- 2 8. ELECTRICAL PARTS LIST ----------- ~29
2. SPECIFICATIONS ----- 9. ADJUSTMENTS--

3. PANEL FAClLITIES 9L REGLAGES ----------
4 EXPLODED VIEWS AND PARTS LIST 9. AJUSTE ---------------------------------------------------------- 58
5. sCHEMATIC DIAGRAM ------------------------- ~ 10. FOR HB, so. KU, KC. HP AND

6. 9.0. BOARDS CONNECTION DIAGRAM ------ 19 PD-6300-S/HEM TYPES -------------------------- 71
7 PACKING ........................................................ 28

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC P O. Box 1760, Long Beach, California 90801 U SAL

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive, Markham, OntarIO L3H 8E3 Canada

pioueER ELECTRONIC [EUROPE] N.V. Keeiberglaan 1. 2740 Beveren, Belgium

PIONEER ELECTRONICS AUSTRALIA my. LTD. 178484 Boundary Road. BraeSIde, VICIOrla 3195, Australia TEL: {031 580-9911

© PIONEER ELECTRONIC CORPORATION 1989 SJ MAY. 1989 Prim man

Page 2

PD-6300

1. SAFETY INFORMATION

-(FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The lollowing check should be performed for the continu-
ed protection of the customer and service technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such asSimpson Model 229-2 or equivalent between the earth
ground and all exposed metal parts of the appliance (input/
output terminals, screwheads, metal overlays, control shaft,
etc.l. Plug the AC line card of the appliance directly into 5120 V
AC 60 Hz outlet and turn the AC power switch on. Any current
measured must not exceed 0.5 mA.

Reading should
not be above
0.5 mA

Leakage
current
teste r

Device
un der
test

Test all
exposed metal
surfaces

Q 2-wire cord

® Also test with
plug reversed _ Earth
(Using AC adapter ' ground
plug as recurred)

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS OUT-
LINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK
HAZARD AND MUST BE CORRECTED BEFORE RETURNING
THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance have
special safety related characteristics. These are often not evi-
dent trom visual inspection nor the protection afforded by
them necessarily can be obtained by using replacement com
ponents rated for voltage, wattage, etc. Replacement parts
which have these special safety characteristics are identified
in this Service Manual.

Electrical components having such features are identified
by marking with a A on the schematics and on the parts list in
this Service Manual.

The use of a substitute replacement component which
does not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in this
Service Manual. may create shock, fire, or other hazards.

Product Safety is continuously under review and new in-
structions are issued from time to time. For the latest informa-
tion, always consult the current PIONEER Service Manual. A
subscription to, or additional copies of, PIONEER Service
Manual may be obtained at a nominal charge from PIONEER.

"(FOR EUROPEAN MODEL ONLY)

VVAFIOITUS!

LAITE SISALTAA LASERDIODIN, JOKA
LAHETTAA NAKYMATONTA, SILMILLE
VAARALLISTA INFRAPUNASATEILYA
LAITTEEN SISALLA ON LASERDIODIN

LASER
LAHEISYYDESSA KUVAN I, MUKAINEN Kuva 1
VAROITUSMERKKI. Lasersateilyn

varoitusmerkkl
ADVERSEL:

USYNLIG LASERSTRALING VED ABNING
NAR SIKKERHEDSAFBRYDERE ER UDE
AF FUNKTION UNDGA UDSAETTELSE
FOR STRALING.

VlKTlGT-~-~-
APARATEN INNEHALLER LASER AV HDGFIE
KLASS AN 1. INGREPF' I APPARATEN 36R
. corms AV SPECIELLT UTBILDAD PERSONAL.

WARNING

DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIA-
TION WHICH IS DANGEROUS TO EYES.
THERE IS A WARNING SIGN ACCORDING
TO PICTURE I INSIDE THE DEVICE
CLOSE TO THE LASER DIODE

LASER

Picture I
Warning :9"! Ior
laser radiation

IMPORTANT
THIS PIONEER APPARATUS CONTAINS LASER OF
HIGHER CLASS THAN 1. SERVICING OPERATION
OF THE APPARATUS SHOULD BE DONE BY A
SPECIALLY INSTRUCTED PERSON.
