Pioneer PD 5700 Owners Manual

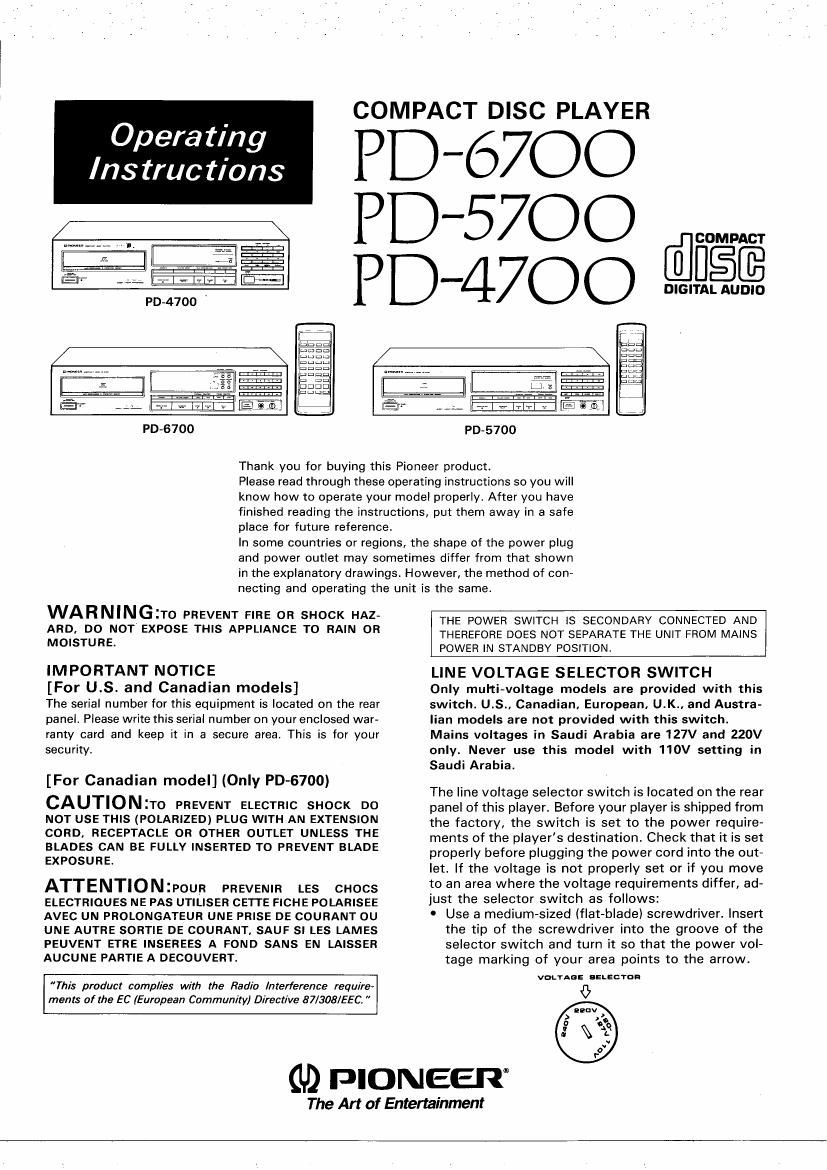

Page 1

Opera ting

COMPACT DISC PLAYER

Instructions 3-6700

i 570

@figfi
DIGITAL AUDIO
Egg
jar

PD-6700

PD-5700

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will
know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown
in the explanatory drawings. However, the method of con»

necting and operating the unit is the same.

WARNINGITO PREVENT FIRE OR SHOCK HAZ~
ARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

IMPORTANT NOTICE

[For U.S. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed ware
ranty card and keep it in a secure area, This is for your
security.

[For Canadian model] (Only PD-6700)

CAUTIONiTO PREVENT ELECTRIC SHOCK Do
NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD. RECEPTACLE OR OTHER OUTLET UNLEss THE
BLADES CAN BE FULLY INSERTEO TO PREVENT BLADE
EXPOSURE.

ATTENTION:POUR PREVENIR LES CHocs
ELECTRIOUES NE PAS UTILISER CETrE FICHE POLARISEE
AVEC UN PROLONGATEUR UNE PRISE DE COURANT ou
UNE AUTRE SORTIE DE COURANT. SAUF sr LES LAMES
PEUVENT ETRE INSEREEs A FOND SANS EN LAISSER
AUCUNE PARTIE A DECOUVERT.

This product complies with the Radio Interference require
merits of the EC (European Community) Directive 87/308/EEG "

THE POWER SWITCH IS SECONDARY CONNECTED AND
THEREFORE DOES NOT SEPARATE THE UNIT FROM MAINS
POWER IN STANDBY POSITION.

LINE VOLTAGE SELECTOR SWITCH

Only multi-voltage models are provided with this
switch. u.s., Canadian, European, U.K., and Austra-
lian models are not provided with this switch.
Mains voltages in Saudi Arabia are 127V and 220V
only. Never use this model with 110V setting in
Saudi Arabia.

The line voltage selector switch is located on the rear
panel of this player. Before your player is shipped from
the factory, the switch is set to the power require-
ments of the player's destination. Check that it is set
properly before plugging the power cord into the out-
let. If the voltage is not properly set or if you move
to an area where the voltage requirements differ, acl-
just the selector switch as follows:

' Use a medium-sized (flat-bladel screwdriver. lnsert
the tip of the screwdriver into the groove of the
selector switch and turn it so that the power vol-
tage marking of your area points to the arrow.

anTAaE BELECYDR

(U) PIONEER

The Art of Entertainment

Page 2

IMPORTANT 1

The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence pi
uninsulated dangerous voltage" within the products
enclosure that may be of suliicient magnitude to constitute
a risk of electric shock to persons.

CAUTION

RlSK OF ELECTRlC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). NO USERA
SERVICEABLE PARTS INSIDE. REFER SERVICING T0
OUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral rlgle is
intended to alert the user to the presence at important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

IMPORTANT 2

lithe apparatus is titted with AC mains power cutletia).
see REAR PANEL FACILlTIES ior convenient
connection of additional Hi-Fl componentisi. Make all
connections to the AC outletls) and the signal terminals
iirst. Connect the plug to the wall socket last, make
sure that the power switch is on.

FOR USE IN THE UNITED
KINGDOM

The wlras in this mains lead are coloured in
accordance with the Iollowing coda:

Blua. Nautrll

Brown: Live
As the colours of the wires in the mains lead of this
apparatus rney riot correspond with the coloured

marking identilying the terminals in your plug proceed

as follows:

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.

Do not connect either wire to the earth terminal of a
three pin plug.

Equipmsnl sold in the U.K. is not Iupplifld with a power
plug.

READ INSTRUCTIONS - All the safety Ind operating
innrucfiuns should he rand before the appliance is
operated,

RETAIN INSTRUCTIONS - The operating instructions
should be retained Ior future reference.

REED WARNIm - All warnings on the appliance and in
the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS - All operating and use in~
sanctions thould bl followed.

WATER AND MOISTURE - The appliancl should not
be use near water 7 for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet base-
ment, or near a swimming pool, etc.

LOCATION - The appliance should be installed in a
stable location.

WALL on CEILING MOUNTING - The appliance
should not be mounted to a wall or ceiling.

VENTILATION - The appliance should be situated so
that its location or position does not interiors with
its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or,
placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through
the vonlilalion openings.

HEAT - The appliance should be situated away irorn
heat sources such as radiators, heat registers,
slows, or other appliances (including amplifiers)
that produce heat.

POWER SOURCES - The appliance should be can»
(looted to a power supply only of the type as.
scribed in the operating instructions or as marked
on the appliance.

POWERrCORD PROTECTION - Power-supply cords
should be routed ID that they are not likely to be
walked on or pinched by items placed upon or
against them. Pay purlicular attention to cards at
plugs, convenience recaptlclas, and the point
whore they exit lrom the appliance.

POLARIZAHON - II your purchased product is pro-
vided with a polarized power plug, please read the
iollowihg instructions. This product is equipped
with a polarized ultarnating current line plug (a plug
having one blade wider than the other). This plug
will Ilt into tho power outlet only one way. This is a
salary leature. livou are unable to insert the plug
lully into the outlet. try reversing the plug. It the
plug should still fail to fit, Contact your eI-ctrlcian to
rapllcl your ohmlate outlet. Do not deleat the
sIIItv purpose or tea polarized plug.

CLEANING - The appliance should be cleaned only
with l polishing cloth or a so dry cloth. Never
claln wim lurniture wax, buntine, insecticides or
otnor volltl a lquids since they may corrode the
cabinet.

POWER LINES -An outdoor antenna should be located
away tram Dower lines.

NONUSE PERIODS - The power cord of the appliance
should he unplugged lrom the outlet when lelt un-
used tor a long period of time.

OBJECT AND LIQUID ENTRV , Care should be taken
sothatoajects do notrelland liquidsare notapilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance

should be serviced by a Pioneer authorized service

center or qulliiied service personnel when;

The poweresupply cord or the plug has been dam-

aoed.

Objects hava fallen, or liquid has been spilled into

the appliance.

The appliance has been exposed to rain.

The appliance doesnoupwearto operate normally

or exhibits a marked change in performance.

The appliance has been dropped or the enclosure

damaged,

SERVICING - The user should not attempt to service
Ihe appliance beyond that described in the opera-
ting instructions. For all other servicing, Contact the
nearest Pioneer authorized service center.

ELECTRIC
SERVICE
EQUIPMENT

GROUND CLAMPS

SAFETY INSTRUCTIONS

OUTDOORANTENNA GROUNDING , lien outsidean-
renna is connected to the antenna terminal, be sure
the antenna system is grounded so as to provide
some protection against voltage surges and built
up static charges.
in the u.s.A. section 810 oi the National Electrical
Code. ANSI/NFFA No. 704934. provides informa-
tion with respect to proper grounding or the mast
and supporting structure, grounding oi the leadrin
wire to an antenna discharge unit, size of grounding
conductors, location at antenna discharge unit,
connection to grounding electrodes, and require.
ments tor the grounding electrode. See Fig. A.

CART - An appliance and cart combination should he
moved with care. Quick stops. excessive iorce, and
uneven surfaces may cause the appliance and cart
combination to overturn.

NEE - NATIONAL ELECTRIC CODE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 - 20)

GROUNDING CONDUCTORS
iNEC SECTION 810 - 2Il

POWER SERVICE GROUNDING
ELECTRODE SYSTEM

FIG. A (NEC ART 250, PART HI

2
