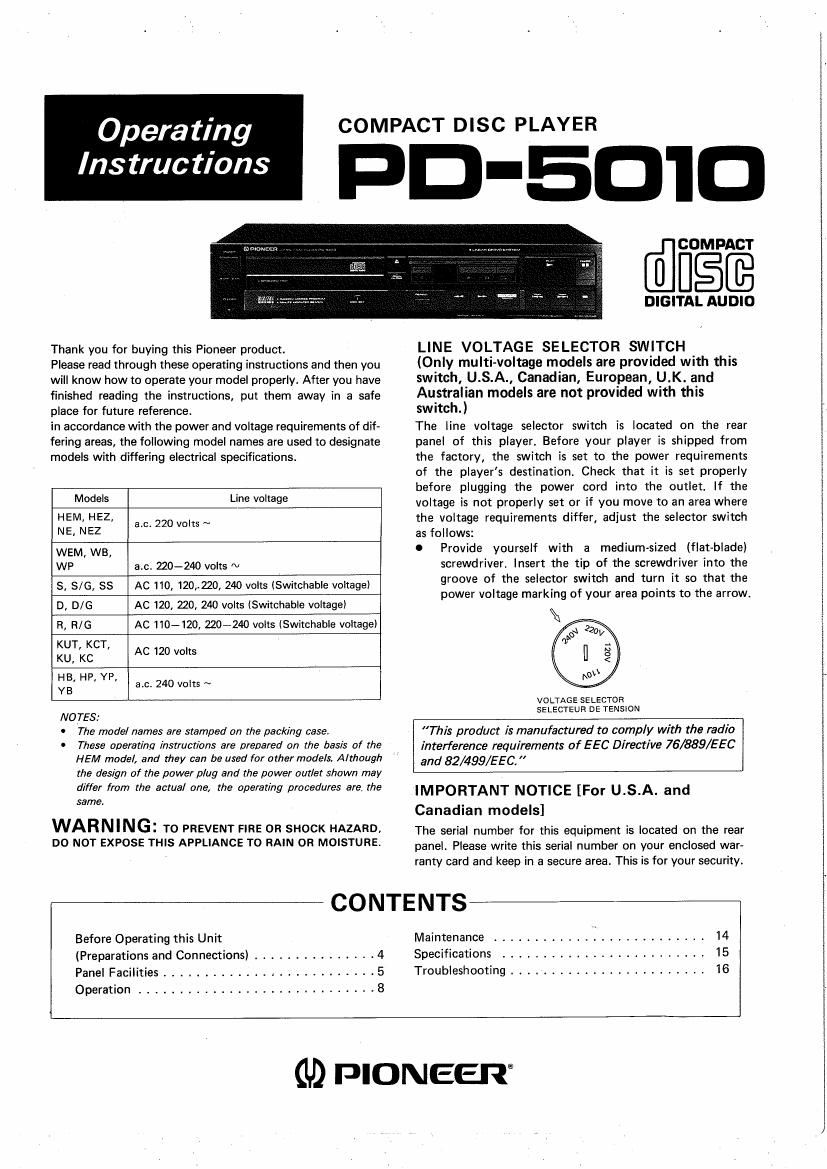

Page 1

Operating

Instructions

«mama .

Thank you for buying this Pioneer product.

Please read through these operating instructions and then you
will know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

in accordance with the power and voltage requirements of dif-
fering areas, the following model names are used to designate
models with differing electrical specifications.

Models Line voltage
HEM. HEZ,
NE, NEZ ac 220 volts
WEM, WB,
WP a.c. 220-240 volts N
S, 5/6, SS AC 110, 120,.220, 240 volts (Switchable voltagel
D, D/G AC 120, 220, 240 volts (Switchable voltage)
R, RIG AC 110-120, 220-240 volts (Switchable voltage)
KUT, KCT,
KU, KC AC 120 volts
HB, HP, YP, ~
YB a.c. 240 volts
NOTES:

. The model names are stamped on the packing case.

0 These operating instructions are prepared on the basis of the
HEM model, and they can be used for other models Although
the design of the power plug and the power outlet shown may
differ from the actual one, the operating procedures are. the
same.

WARNING: TO PREVENT FIRE on SHOCK HAZARD.
Do NOT EXPOSE THIS APPLIANCE TO RAIN on MOISTURE,

CONTENTS

COMPACT DISC PLAYER

D-ED'ID
[filfigfi

DIGITAL AU DID

LINE VOLTAGE SELECTOR SWITCH
(Only multi-voltage models are provided with this
switch, U.S.A., Canadian, European, U.K. and
Australian models are not provided with this
switch.)
The line voltage selector switch is located on the rear
panel of this player. Before your player is shipped from
the factory, the switch is set to the power requirements
of the players destination. Check that it is set properly
before plugging the power cord into the outlet. If the
voltage is not properly set or if you move to an area where
the voltage requirements differ, adjust the selector switch
as follows:

0 Provide yourself with a medium-sized (flat-blade)
screwdriver. Insert the tip of the screwdriver into the
groove of the selector switch and turn it so that the
power voltage marking of your area points to the arrow.

VOLTAGE SELECTOR
SELECTEUR DE TENSION

This product is manufactured to comply with the radio
interference requirements of EEC Directive 76/889/EEC
and 82/499/E E C.

IMPORTANT NOTICE [For U.S.A. and
Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep in a secure area. This is for your security.

Before Operating this Unit Maintenance 14
(Preparations and Connections) ............... 4 Specifications 15
Panel Facilities . . . . . . . . . . . . . . ............ 5 Troubleshooting ........................ 16
Operation ............................. 8

(U2 PIONEEIT

Page 2

SAFETY INSTRUCTIONS

HEAD INSTRUCTIONS ~ All the safety and
operating instructions should be read betore the
aupllance is operated.

RETAIN INSTRUCTIONS - The operating Instruct
lions should be retained for future reference.
NEED WARNING 7 All warnings on the appliance
and in the operating instructions should be adhered

to.

FOLLOW INSTRUCTIONS a All Operating and use
instructions should be Iollowed.

WATER AND MOISTURE ' The appliance should
not be used near water tor example, near a
bathtub, washbowl, kitchen sink, laundrv tub, in a
wet basement, or near a swimming pool, etc.

LOCATION - The appliance should be installed in a
stable location.

WALL OR CEILING MOUNTING - The apnliance
should not be mounted to a wall or ceiling.

VENTILATION - The appliance should he situated so
that its location or position does not interlare with
its proper ventilation. For example, the appliance
should not he situated on a bed, scla, rug, or
similar surface that may block the ventilation open-
ings; or, placed in a built-in installation, such as a
bookcase or cabinet that may impede the llow ol
air through the ventilation openings.

HEAT - The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances {including ampiiriersl
that produce heat.

POWER SOURCES - The appliance should be con-
nected to a power supply only ol the type descrlb»
ed in the opemting instructions or as marked on the
appliance.

POWER-CORD PROTECTION - Powerrsupplv cards
should be routed so that they are not likely to be
Walked on or pinched by items placed upon or
against them, paying particular attention to cords
at plugs, convenience receptacles, and the point
where they exit from the appliance.

POLARIZATION - If your purchased product is pro»
vidad with a polarized power plug, please read the
following instructions. This product is equipped
with a polarized alternating current line plug ia plug
having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a
531er feature. If you are unable to insert the plug
lully into the outlet, try reversing the plug. If the
plug should still tail to fit, contact your electrician
to reDIace your obsolete outlet. D0 nDt deiee! the
safety purpose ol the polarized plug.

CLEANING - The appliance should be cleaned only
with a po hing cloth or a sch dry cloth. Never
clean with Iumitute wax, henzine, insecticides or
other volatile liquids since they may corrode the
cabinet.

POWER LINES 7 An outdoor antenna should be
located away from power lines.

NONUSE PERIODS - The power cord or the aps
pliance should be unplugged from the outlet when
lelt unused tor a long period cl time.

OBJECT AND Lluum ENTRV - Care should be
taken so that objects do not laii and liquids are not
spilled into the enclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance
should be serviced by Pioneer authorized service
center or qualihed service personnel when:

- The powerrsupply cord or the plug has been
damaged; or

. Objects have laiien, or liquld has been spilled into
the appliance; or

- The appliance has been exposed to rain; or

- The appliance does not appear to operate normally
or exhibits a marked Change In performance; or

- The appliance has been dropped; or the enclosure
damaged.

SERVICING - The user should not attempt to service
the appliance beyond lhat described in the
opemting instructions. For all other servicing, con-
tact the nearest Pioneer authorized service center.

Powzn UNES

srnvrcs
ENVRAMCE
tottoucroris .

OUTDOOR ANTENNA GROUNDING - If an

outside antenna is connected to the antenna
terminal, be sure the antenna system is
grounded so as to provide some protection
against voltage surges and built up static
charges.
In the U.S.A. sectiun 810 all the National Elec-
trical Code, ANSI/NFPA No. 70-1984, pro-
vides information with respect to proper
grounding of the mast and supporting struc-
ture, grounding ol the lead-in wire to an anten-
na discharge unit, size cl grounding conduct
tors, location at antenna-discharge unit, con-
nection to grounding electrodes, and re-
quirements tor the grounding electrode. See
Fig. A.

3) Use No. 10 AWG 15.3 mml
copper, No. B AWG 15.4
mm'l aluminum, No, 17
AWG (Ll) mml Coppers
clad steel, bronze MFG. or
larger as ground wire.

bl Secure antenna leadsin and
ground wires to house with
slandrofl insulators Spaced
from 4 feet. (1.22 metsrsl to
6 feet [1.53 meters) apart.

5) Mount antenna discharge
unit as closely as possible to

srxuoprr
lNSUtAtoRS e

ANTENNA

onduuo
write to

mourn)

CLAMPS

stnvict turnout
touieurur

rowan stevrct
Ghourtolnc tttcrnuot svsrm
I: , miner melzl ester ere-i

laments
JUMVER a :'

FIG.A u

ANVENNA
(- DlSanRGE uNlt <

where leadrln enters house.

dl Use jumper wire not smaller
than No.5 AWG 3.3 mm)
copper or equivalent when
separate antenna-grounds
ing electrode is used.

tsiio IN writs

rotxrsnmt AMYEMNA
tERMINAls or rnoaucr

onouno
write a e

s 5
us: section etc at iii

IMPORTANT 1

The lightning llash with arrowhead, within an
equilateral triangle, is intended to alert the user ol the
presence at uninsulated "dangerous voltage within the
product's enclosure that may be ol suliicierrr magnitude
to constitute a risk cl electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alanine user oi the presence at important
operating and maintenance (servicingl instructions in
the literature accompanying the appliance.

IMPORTANT 2

it the apparatus is lined with AC mains power outletisl.
see REAR PANEL FACILITIES tor convenient connecs
tion or additional Hi-Fi componenlisl. Make all conned
tions to the AC outletisl and the signal terminals lrrst.
Connect the plug to the wall socket last, make sure that
the power switch is on. Disconnect the wall plug when
the equipment is not in (regular) use, eg. when on
vacation.

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured in accordance
with the following code:

Blue: Neutral

Brown: Live

As the colours or the wires in the mains lead oi this ap-
paratus may not correspond with the coloured marking
identifying the terminals in your plug proceed as
follows:

The wire whic s coloured blue must be connected to
the terminal which is marked with the letter N or col
cured black.

The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or col-
oured red.

Equipment sold in the U.K. is not supplied with a
power plug.
