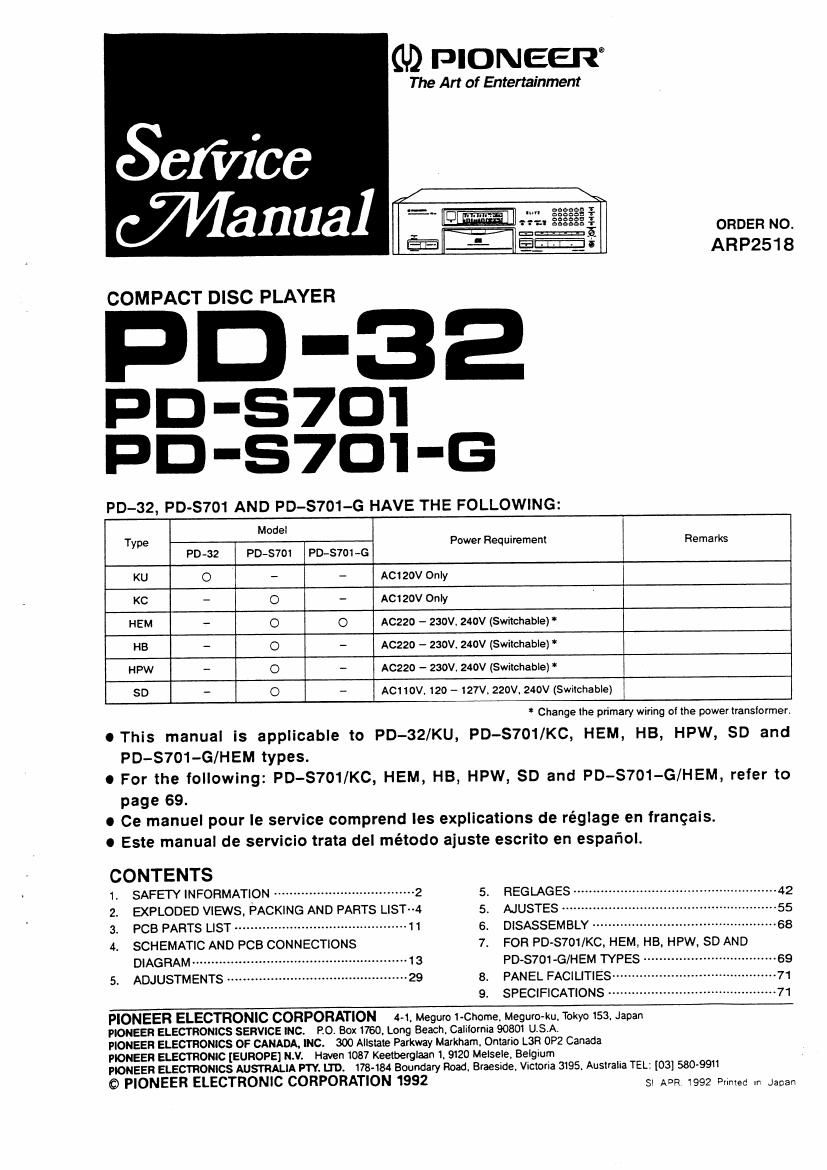

Pioneer pd 32 service manual

Page 1

(ID PIONEEIT

The Art of Entertainment

ORDER NO.
A R P25 1 8
COMPACT DISC PLAYER
P D - S 7 D 'I
P D - S '7 D 'l - G
PD-32, PD-S701 AND PD-S701-G HAVE THE FOLLOWING:
Model
Type Power Requirement Remarks
PD-32 PD-S701 PD-S701--G
KU O - - AC1 20V Only
KC - O - AC120V Only
HEM - O O A6220 - 230v. 240v (Switchable)
HB - O - AC220 - 230v. 240v (Switchable) *
HPW - O - ACZZO - 230Vl 240V (Switchable) *
so - O - Acnov, 120 - 127v. 220V, 24W (Switchable) l

Change The primary wiring of the power lranslormer.
O This manual is applicable to PD-32/KU, PD-S701/KC, HEM, HB, HPW, SD and
PD-S701-G/HEM types.
0 For the following: PD-S701/KC, HEM, HB, HPW, SD and PD-S7o1-G/HEM, refer to
page 69.
0 Ce manuel pour Ie service comprend Ies explications de réglage en frangais.
o Este manual de servicio trata del método ajuste escrito en esparIol.

CONTENTS

1. SAFETY INFORMATION ------------------------------------ 2 5. REGLAGES --------------------------------

2. EXPLODED VIEWS. PACKING AND PARTS LlST--4 5. AJUSTES ~~~~~~~~~~

a. PCB PARTS LIST -------------------------------------------- 11 s. DISASSEMBLY .,

4 SCHEMATIC AND PCB CONNECTIONS 7. FOR PD»S701/KC. HEM, HB. HPW, SD AND
DIAGRAM ............ PD-S701-G/HEM TYPES --

8. PANEL FACILITIES»-
9. SPECIFICATIONS-"u

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, MegurO-ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1780, Long Beach, California 90801 U.S.A.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keelberglaan 1. 9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road. Braeside. Vicloria 3195. Auslralia TEL: [03] 5809911

© PIONEER ELECTRONIC CORPORATION 1992 5. Ann 1992 PrImed m Japan

5. ADJUSTMENTS

Page 2

PD-32

This service manual is intended for aualified service technicians; it is not
meant for the casual do-it-yourselfei. Qualified technicians have the neces»
sary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to
perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.

1.

('(FOR USA MODEL ONLY)
1 . SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe. conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.l. Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as
a known reproductive toxicant which may cause birth defects or other reproductive harm

(California Health & Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in
solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale

any smoke or fumes produced.

SAFETY INFORMATION

Reading should

Leakage not be above

Device current 0-5mA
under tester
test
Test all
exposed metal
surfaces
vaire cord

_ Earth
ground

Also test with
plug reversed
(Using AC adapter

plug as requiredl

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vol-
tage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual. may create shock,
fire. or other hazards.

Product Safety is continuously under review and
new instructions are issued from time totime. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PlON-EER.

fil
