Pioneer pd 207 service manual
This is the 30 pages manual for pioneer pd 207 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pd 207 service manual (Ocr-read)

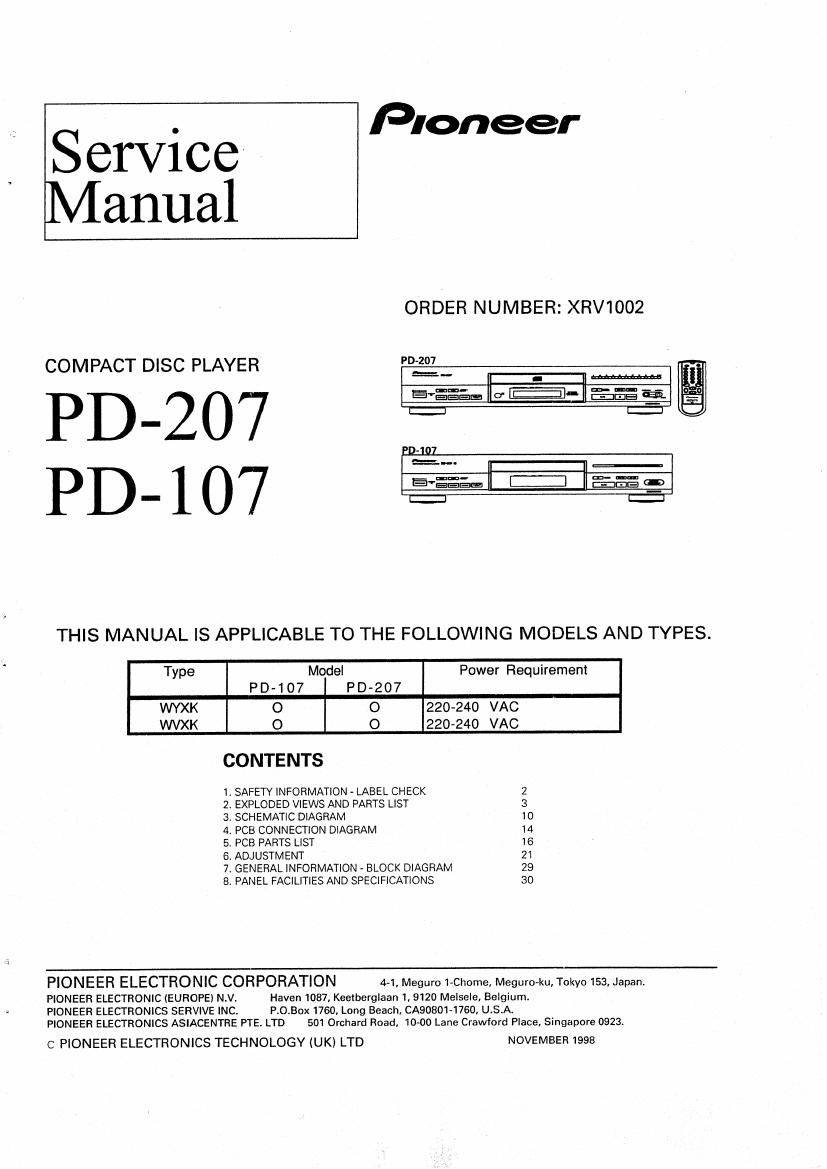

Page 1
Service
Manual
Pioneer
COMPACT DISC PLAYER
PD-207
PD-107
ORDER NUMBER: XRV1002
PD-ZO7
a...
E"'IEIEIIZ-I- 3-- 5-: I'm-En
I
0-107
,____
§-Eé\a I:I m I m
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELS AND TYPES.
Type Model Power Requirement
P D - 1 0 7 P D - 2 O 7
WYXK O 0 220-240 VAC
WVXK O 0 220-240 VAC
CONTENTS
I. SAFETY INFORMATION - LABEL CHECK 2
2. EXPLODED VIEWS AND PARTS LIST 3
34 SCHEMATIC DIAGRAM 10
4. PCB CONNECTION DIAGRAM 14
5. PCB PARTS LIST 16
6. ADJUSTMENT 21
7 GENERAL INFORMATION . BLOCK DIAGRAM 29
BI PANEL FACILITIES AND SPECIFICATIONS 30
PIONEER ELECTRONIC CORPORATION
PIONEER ELECTRONIC (EUROPE) N.V.
PIONEER ELECTRONICS SERVIVE INC.
PIONEER ELECTRONICS ASIACENTRE PTE. LTD
c PIONEER ELECTRONICS TECHNOLOGY (UK) LTD NOVEMBER 1998
4-1, Meguro 1»Chome, Meguro-ku, Tokyo 153, Japan.
Haven 1087, Keetberglaan 1, 9120 Melsele. EeIgium.
P.O.Box 1760, Long Beach, CA9080I-I760, USA.
501 Orchard Road, 10-00 Lane Crawford Place, Singapore 0923.
Page 2
PD-207/PD-107
1. SAFETY INFORMATION - LABEL CHECK
OUTSIDE THE UNIT
INSIDE THE UNIT
FRONT PANEL
2
Additional Laser Caution
1. Laser interlock Mechanism
The position of the switch ($651) for detecting loading
state is detected by the system microprocessor. and
the design prevents laser diode oscillation when the
switch [$651) is not on CLMP terminal side (CLMP
signal is OFF or high level).
Thus, the intenock Will no longer function if the switch (S651)
is deliberatery set to CLMP terminal side. (low level)
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, it pin 33 ot
CXA1782CQ (K7151) on the MOTHER BOARD ASSY
is connected to GND. or pin 28 of lCaSt (LDON) is
connected to low level (ON), or else the terminals of
0151 are shorted to each other (tauit condition).
2.When the cover is opened, close viewing ot the
objective lens with the naked eye will cause exposure
to a Class 1 laser beam.
a: : Refer to page 20
lNVlSlELE LASER RADlAVlDN
ARol ALWIlNA MAKVMAnoMALL: LASERSATEILVLLE Auk
ARNINGI OSYNLic MAR ommuruaopmu
USYMLIG LASiRSTRALING VED Aaulm; MAR SlKKERHED
SAFERYMRE ER tins AF FUMKTION UNDGA
DECKEL loam KLAPPE) 520mm lST mcur DEM
